16-Lane PCI Express Gen 4 Test /SMA Breakout Board




This module can be used for the following applications:

 - 16-lane PCI Express Test - Provides incoming clocks of 100MHz , 125MHz, and 250MHz and power (12V and 3.3V) for quick electrical verification of any PCI Express card (Gen4)
- PCI Express Loopback Test - PHY or Serial Transceivers used as PHY can be tested for functionality and performance
- Serial Transceiver Expansion - Serial Transceivers used as PCIe PHY can be used for other serial interfaces through SMA cables (example)
- Board-To-Board communication via Serial Transceivers connected to the SMA connectors
- Conversion of PCIe End-point cards to Root (using two modules side by side)
- Conversion of Serial I/O transceivers used on End-Point cards to different form factors using this module along with modules such HTG-SMA-SFP
- External clock generator using the onboard clock synthesizer
- Clock generator

Features:

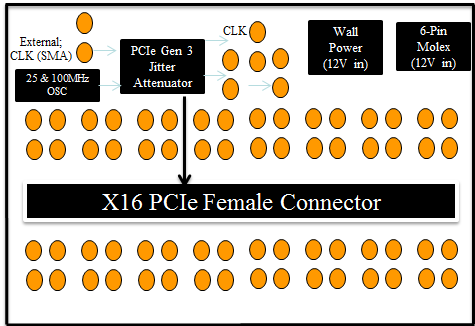

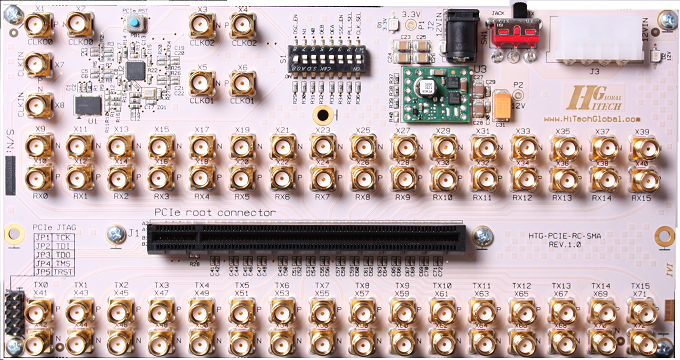

x16 PCI Express Gen4 Female Connector
Super clock generating 100MHz, 250MHz and other related frequencies
3 External Clock Outputs
External Clock inputs (SMA and onboard oscillators)
Breakout SMA Connectors for Tx and Rx lanes

Ordering information:

Part Number: HTG-PCIE-RC-SMA
Price:
$995
[Buy Online]

Related Products

SMA to SMA Cable
Impedance: 50Ω
Propagation Delay: 4.83 nsec/meter
Max Attenuation: 1.25dB @ 1GHz for 1 meter
24" Option:
 SMA-2-SMA-24   [Buy Online]
12" Option:
SMA-2-SMA-12   [Buy Online]

12V-6A Wall Power Supply
12V/6A Wall Power Supply
 [Buy Online]
