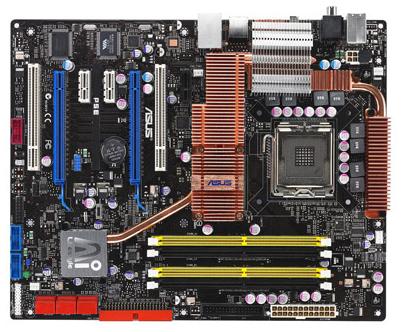

CPU |
LGA775 socket for Intel® Core™2 Extreme / Core™2
Quad /Core™2 Duo / Pentium® Extreme / Pentium® D / Pentium® 4
Processors Compatible with Intel® 05B/05A/06 processors Supports
Intel® next generation 45nm Multi-Core CPU |
|
Chipset |
Intel® X38 / ICH9R with Intel® Fast Memory Access
Technology |
|
Front Side Bus |
1600 / 1333 / 1066 / 800 MHz |
|
Memory |
4 x DIMM, max. 8GB, DDR2 1200 / 1066 / 800 / 667
MHz, non-ECC, un-buffered memory Dual channel memory
architecture * DDR2 1200 is O.C. speed* |
|
Expansion Slots |
2 x PCI Express Gen. 2.0 x16 (both @ x16 mode)
supports Cross Fire Technology 3 x PCIe x1, and 2 x PCI |
|
Storage |
Southbridge- 6 x SATA 3.0 Gb/s ports- Intel
Matrix Storage Technology supports RAID 0, 1, 5 and 10JMicron®
PATA and SATA controller- 1 x Ultra DMA 133/100/66 for up to 2
PATA devices |
|
LAN |
Marvell88E8056® PCIe Gigabit LAN controller
featuring AI NET2 |
|
Audio |
Supreme FX II Audio card ADI® AD1988B 8-channel
High Definition Audio CODEC- Support Jack-Sensing, Enumeration,
Multi-streaming- Coaxial / Optical S/PDIF out ports at back I/O-
AI Audio 2- ASUS Noise Filter |
|
IEEE 1394 |
VIA VT6308P controller supports 2 x IEEE 1394a
ports (one at mid board; one at back panel) |
|
USB |
12 x USB 2.0 ports (6 ports at mid-board, 6ports
at back panel) |
|
ASUS AI Lifestyle Features |
ASUS Power Saving Solution- ASUS EPU (Energy
Processing Unit)- ASUS 3rd Generation 8-phase Power- ASUS AI Nap
ASUS AI Lifestyle Features:- ASUS AI Direct Link ASUS Quiet
Thermal Solution:- ASUS Fanless Design: Heat-pipe solution- ASUS
Fanless Design: Stack Cool 2- ASUS Q-Fan 2- ASUS Optional Fan
for Water-cooling or Passive-Cooling only ASUS EZ DIY:- ASUS
Q-Shield- ASUS Q-Connector- ASUS O.C. Profile- ASUS Crash Free
BIOS 3- ASUS EZ Flash 2 |
|
Special Features |
ASUS MyLogo 3Multi-language BIOS |
|
Over clocking Features |
ASUS AI Booster utility2-Phase DDR2Precision
Tweaker 2:- vCore: Adjustable CPU voltage at 0.00625V increment-
vDIMM: 43-step DRAM voltage control- vChipset (N.B.): 25-step
voltage control- vFSB Termination: 15-step voltage control- vCPU
PLL: 64-step voltage control SFS (Stepless Frequency Selection)-
FSB tuning from 200MHz up to 800MHz at 1MHz increment- Memory
tuning from 667MHz up to 3200MHz- PCI Express frequency tuning
from 100MHz up to150MHz at 1MHz increment Over clocking
Protection:- ASUS C.P.R. (CPU Parameter Recall) |
|
Back Panel I/O Ports |
1 x PS/2 Keyboard1 x S/PDIF Out (Coaxial +
Optical)1 x IEEE1394a1 x RJ45 port6 x USB 2.0/1.18-channel Audio
I/O |
|
Internal I/O Connectors |
3 x USB connectors support additional 6 USB
ports1 x Floppy disk drive connector1 x IDE connector6 x SATA
connectors1 x CPU Fan connector2 x Chassis Fan connector1 x
Power Fan connector1 x IEEE1394a connect or Front panel audio
connector1 x S/PDIF Out Header Chassis Intrusion connect or CD
audio in24-pin ATX Power connector2 x 4-pin ATX 12V Power
connector System Panel(Q-Connector) |
|
BIOS |
16 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0,
SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2,
ASUS Crash Free BIOS 3 |
|
Manageability |
WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE |
|
Accessories |
Ultra DMA 133/100/66 cable FDD cable6 x Serial
ATA cables1 x 2-port Serial ATA power cable ASUS Q-shield User's
manual3 in 1 Q-connector1 x 2-port USB2.0 / 1-port IEEE1394
module1 x Optional Fan for Water-Cooling or Passive-Cooling only
Supreme FX II Audio card |
|
Support Disc |
Drivers ASUS PC Probe II ASUS Update ASUS AI
Suite Anti-virus software (OEM version) Image-Editing Suite |
|
Form Factor |
ATX Form Factor, 12"x 9.6" (30.5cm x 24.4cm) |
