PCI Express Gen1/2/3 Test Board







l

This module can be used for the following applications:

 - PCI Express Test - Provides incoming clocks of 100MHz , 125MHz, and 250MHz and power (12V and 3.3V) for quick electrical verification of any PCI Express card (Gen1, 2, or 3).
- PCI Express Loopback Test - PHY or Serial Transceivers used as PHY can be tested for functionality and performance

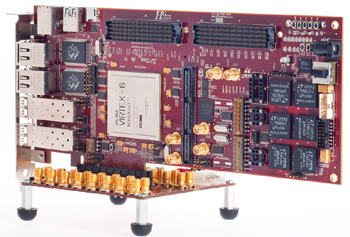

- Serial Transceiver Expansion - Serial Transceivers used as PCIe PHY can be used for other serial interfaces through SMA cables (example)

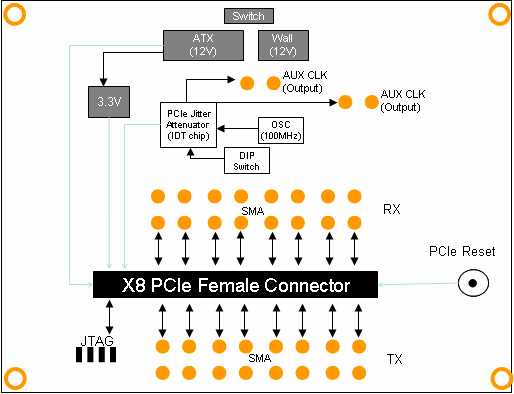

Features:

► x8 PCI Express Gen1 and Gen2 Female Connector
 ► Super clock generating 100MHz, 250MHz and other related frequencies
► External Clock Outputs
► Breakout SMA Connectors for Tx and Rx lanes
 Ordering information:

Part Number: HTG-TEST-PCIE-SMA
Price: $695
[Buy Online]
Accessories
12V/6A Wall Power Supply (US. Version)
 		Ordering information:

Part Number: PWR-12V-6A
Price: $34.95
[Buy Online]

SMA to SMA Cable
Impedance: 50Ω
Capacitance: 96.432pF/meter
Propagation Delay: 4.83 nsec/meter
Max Attenuation: 1.25dB @ 1GHz for 1 meter
Conductor Size: 26 AWG, (0,51mm) .020" dia.
Conductor Material: Silver Plated Copper
Conductor Resistance:0.13Ω/meter max
Current Rating: 5A DC
Insulator Material: PTFE
Dielectric Constant: 2.1dK
Shield Material: Silver Plated Copper Clad Steel
Jacket Material: FEP
Jacket Diameter: (2,54mm) .100"
Manufacturer: Samtec

Ordering information:

24" Option:
Part Number: SMA-2-SMA-24
Price: $14.95
[Buy Online]

12" Option:
Part Number: SMA-2-SMA-12
Price: $12.95
[Buy Online]
