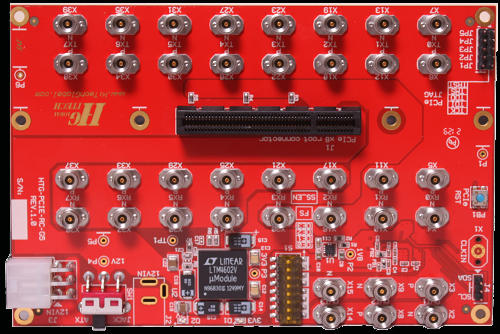

This module can be used for the following applications:

 - 8-lane PCI Express Test - Provides incoming clock and power for quick electrical verification of any PCI Express card (Gen5)
- PCI Express Loopback Test - PHY or Serial Transceivers used as PHY can be tested for functionality and performance
- Serial Transceiver Expansion - Serial Transceivers used as PCIe PHY can be used for other serial interfaces through 2.92 cables
- Board-To-Board communication via Serial Transceivers connected to the 2.92 connectors
- Conversion of PCIe End-point cards to Root (using two modules side by side)
- Conversion of Serial I/O transceivers used on End-Point cards to different form factors using this module along with modules such
- External clock generator using the onboard clock generator device (SI52204)
- Clock generator
