Atmel LEON2-FT, AT697 ASIC Compact PCI Board

Atmel Logo

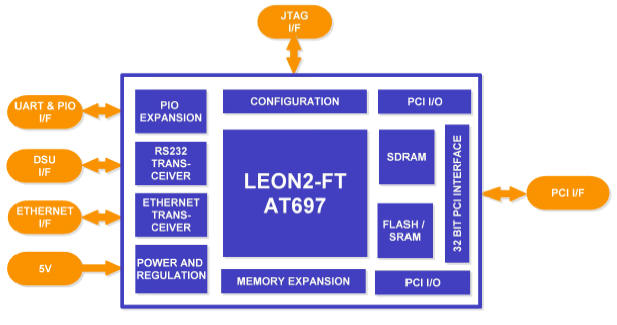

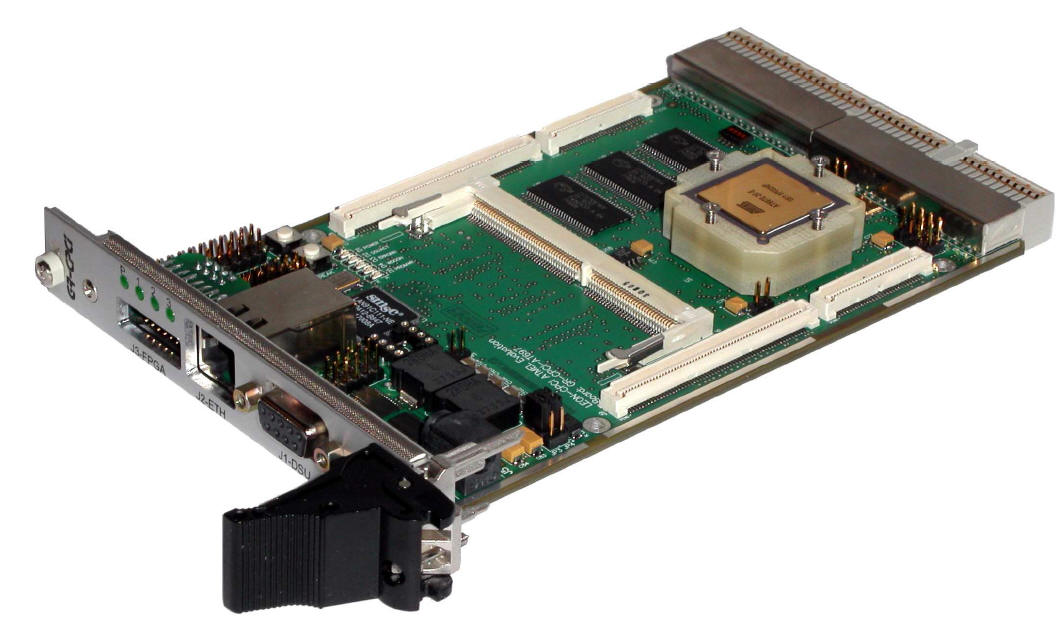

The GR-CPCI-AT697 board is a Compact PCI format development board which has been developed  to enable the evaluation of the Atmel AT697E LEON2-FT processor.

The Atmel AT697E is a Rad-Hard device which implements a 32 bit Sparc V8 Embedded Processor.  This device is targeted for use in Space and Defense applications and incorporates failure tolerance by design with features including internal TMR, parity protections and EDAC for external memories.

The incorporation of on-board volatile and nonvolatile memory, together with serial and Ethernet interfaces makes this board ideal for evaluation of the performance and behavior of both the Hardware and Software for the AT697E.

The board is capable of operating either as a stand-alone board, or as a compact PCI plug-in card in either the System slot or Peripheral slots.

An adapter is available to allow the installation of the board in a standard PCI slot of a Personal Computer.

Expansion to user's peripherals and circuits can be implemented either in an adjacent slot via the PCI interface or as a mezzanine board via the memory expansion connections.




















Features:

  • LEON2-FT Processor AT697E, 100MHz

  • Compact PCI plug-in format (3U 4HP, 32 bit, 33MHz

  • Configurable for System and Peripheral slot operation

  • On-board memory :
    • FLASH prom
    • SODIMM socket for SDRAM
    • SRAM

  • Memory/Peripheral expansion connector

  • Debug Support Unit interface (High-speed 1Mbaud RS232)

  • Ethernet 10/100 Mbit MAC and PHY onboard (LAN91C111)

  • On-board oscillators

  • PIO expansion with 2 x RS232 / 2 x RS422 / 2 x

  • LVDS options

  • On-board power regulation allows operation from

  • PCI slot, or stand-alone with +5V supply.

Kit Content:

  • GR-CPCI-AC697 Compact PCI Board
  • GRMON Software and License (dongle)
  • Power Supply (100-240VAC -> 5VDC)
  • Interface cables (Ethernet, Serial)
  • CD documentation (User Manual and Schematics)


 Specifications:
  • Atmel AT697E, Rad-Hard 32 bit Sparc V8 Embedded Processor.
  • Processor core frequency: 100MHz
  • Memory and User I/O expansion using 120 pin and 60 pin connectors (AMP 177-984-5 and -2), for mezzanine card applications
  • Standard memory options:
    FLASH 64Mbit (16M x 8 bit)
    SDRAM SODIMM socket (up to 32M x 40 bit)
    SRAM 40Mbit (1Mword x 40bit )
  • RJ45 10/100Mbit Ethernet connector
  • SUB-D9 pin connector for DSU/UART I/F

Part Number: GR-CPCI-AT697
Price: $19,100
Lead Time: 2 weeks
How To Buy

Note: This product will be subject to export controls
