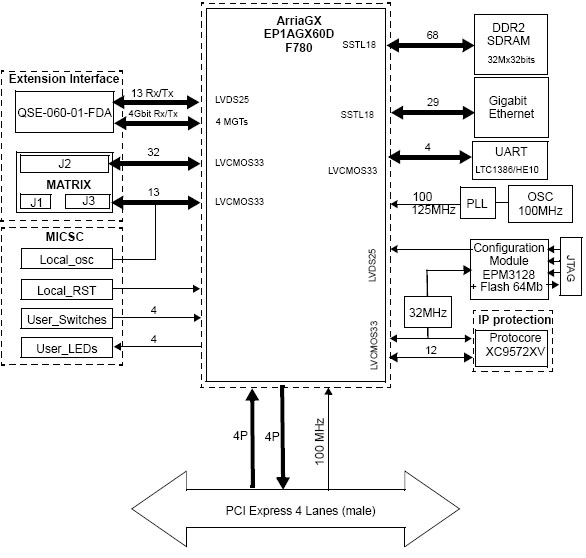

►Features:

• x1/x4 PCI Express end-point connector
• High-speed interface (SAMTEC QSE-060-1-F-D-A) with 4 RX/TX Gigabit links and 13 LVDS Receive and transmit pairs
• 3 user-dedicated connectors with 45 I/Os
• 1 Gbit DDR-2 SDRAM (32x32-bit bank)
•  Gigabit Ethernet
• Three oscillator
    -x1 32MHz to synchronize the protocore with the FPGA and the configuration module
    -x1 LVDS 100/125MHz available on SerDes Ref. CLK.
    -x1 oscillator print for custom user frequencies
• EPM3128 + FlashPROM configuration module
• RS232 serial link connector with  two inputs and two outputs
   - 2 simple serial links (Tx/Rx)
   - 1 extended serial link (Tx/Rx/CTS/RTS)

► Kit Content:

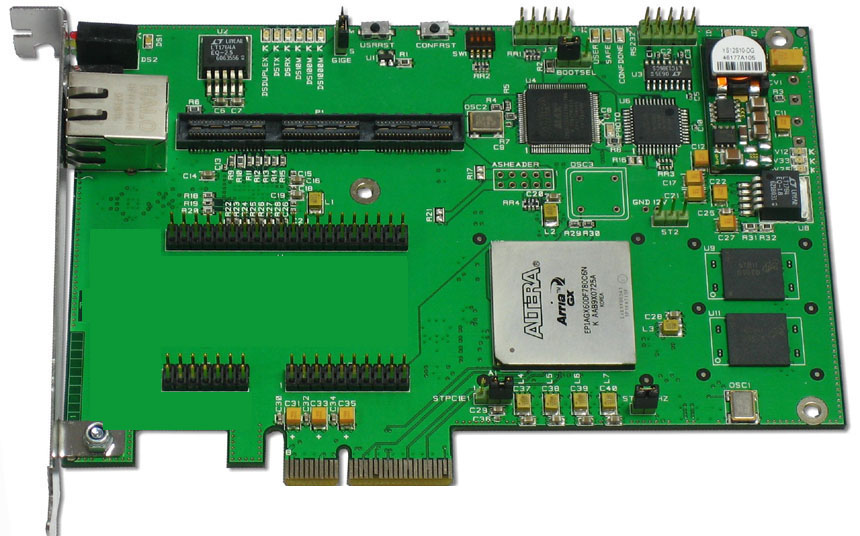

• Aria GX Prototyping Board
• Configurable IP Core for PCIe
• PCI Express Testbench
• Reference Design
• Software Drivers (eval)
• Complete technical documentation

► Part # & Price:

XPRESS-AGX: $990 (Introductory price valid up to Dec.  31st)
