Xilinx Spartan 3 ™ Development Board

The GR-XC3S-1500 board is targeted especially to support the early development and fast prototyping of small Leon based systems, computer peripherals and as general purpose FPGA development environment. Although suitable for general purpose Xilinx Spartan3 FPGA developments, the incorporation of on-board volatile and nonvolatile memory, together with serial, Ethernet, video DAC, USB 2.0 and PS/2 interfaces makes this board ideal for fast prototyping, evaluation or development of software for both LEON-2 and GRLIB/LEON-3 32-bit microprocessor designs. The board incorporates a 1.5 million gate XC3S1500 FPGA device from the Xilinx Spartan3™ family, which is supported by the free Xilinx Webpack synthesis and place and route tools. The board is provided as a kit together with a power supply, JTAG programming cable, interface cables and CD Documentation including schematics and design examples. The LEON Microprocessor The LEON processor is a synthesizable VHDL model of a 32-bit processor with an instruction set compatible with the IEEE-1754 (SPARC V8) . The LEON processor was initially developed to provide a high performance fault tolerant processor for space applications and is currently in use in European and international space programs. To enable development of system-on-a-chip (SOC) devices using the LEON core, the full VHDL source code is available both under the GNU GPL license and under commercial licensing conditions. The Leon core is available through Hitech Global.

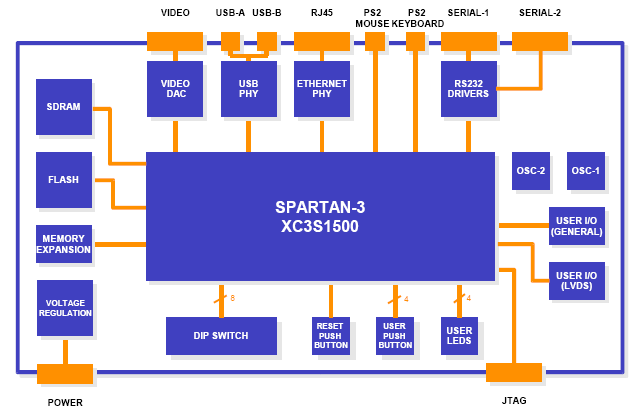

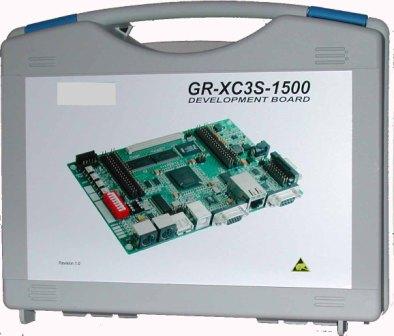

Features: - Xilinx Spartan3 XC3S1500-FG456 FPGA - On-board memory : • FLASH prom, 8 Mbyte • SDRAM, 64 Mbyte - On-board Interfaces: • Ethernet 10/100 Mbit MAC and PHY (LXT971A) • 24 bit Video DAC (ADV7125-50) • USB PHY Controller (CY7C68000) • PS2 Mouse and Keyboard interfaces • 2 x High-speed Serial (1Mbaud RS232) - On-board oscillators • 25MHz, 50MHz, 1 x User Installed - Memory and User expansion connectors for General Purpose and LVDS signal interfaces (ca. 100 user signals) - Processor debug via DSU Serial, Ethernet or JTAG Interfaces - On-board power regulation allows stand-alone operation with single +5V supply. - Compact Euro card size, 160 x 100mm	Kit Content: - Board - Power Supply (100-240VAC -> 5VDC) - Low Cost JTAG Programming Cable - Interface cables (Ethernet, USB, Serial) - CD documentation (user's manual, complete schematics, necessary .ucf files for Xilinx place&route tools and example configurations)
	Part Number: GR-3S1500 Availability: Now Price: $1,300 How To Buy [Buy Online]
