Marvell PXA270 Multimedia Development Board








This platform is designed around Marvell Xscale PXA270 processor running at 520MHz and powered by Linux 2.6 and Windows CE 5.0/6.0. operating systems. The touch screen platform supports a range of I/Os and expansion slots including SD/MMC , USB host and client, 10/100 Ethernet, Blue tooth and Audio in/out. For storage, the platform consists of 8 Gigabit of NAND flash and provides file system support on the Windows CE.

The platform has an expansion bus connector for customer specific application add-on modules.

This Marvell PXA270 based reference platform is targeted for various applications such as handheld data logging terminals, Streaming Media players, Point-of-Sale terminals, Industrial PDA designs, Video Conferencing Terminals, Informative Kiosks etc. The Reference Platform is supported by both Windows CE and Linux operating systems.

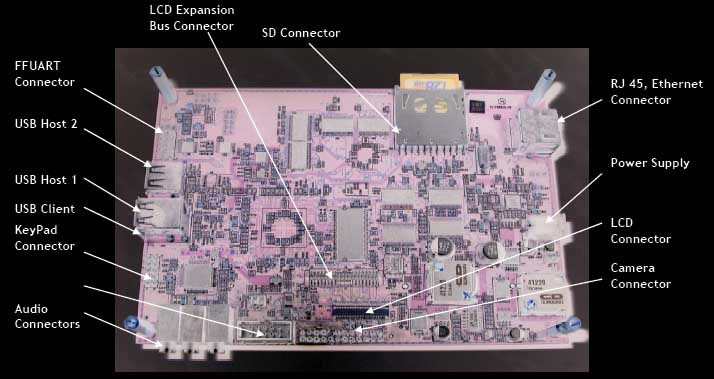

Top View

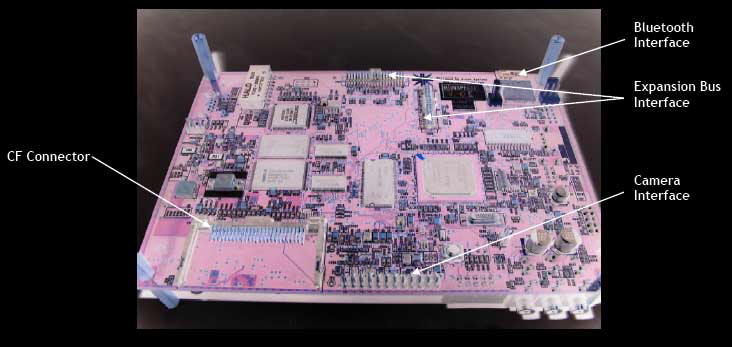

Bottom View

►Features:

▪ Marvell PXA270 processor (520MHz )
▪ 32/64/128MB SDRAM
▪ 16/32MB NOR Flash
▪ NAND Flash memory
▪ LCD module (Resolutions supported: 320X240, 640X480, 800X600)
▪ Bluetooth (no profiles loaded)
▪ CF slot used for WiFi connectivity
▪ 10/100 Ethernet Port
▪ Serial Ports (2)
▪ USB (2 Host & 1 Client)
▪ Audio Line In/Out
▪ Mic in
▪ Digital Video - Camera  input (optional)
▪ CompactFlash memory card slot
▪ SD/MMC card support
▪ Expansion Interface Bus
▪ Real Time Clock
▪ Touch screen support
▪ 4X4 matrix Keypad support
▪ Dimensions : 6.2” X 4.4 “ X 0.8”

►Kit Content :

▪ The PXA270 Reference Platform
▪ 3.5“ TFT LCD
▪ JTAG board and Parallel port JTAG cable
▪ RS232 Debug cable
▪ Power Supply
▪ Camera module (optional)
▪ CD containing user manual and schematics (source codes with purchase of any BSP option)

►Part Number & Price:

▪ PXA270 Board:
HTG-PXA270-SIR : $1,699

▪ Windows CE 5.0 with Source:
HTG-PXA270-SIR-WCE 5: $1,299

▪ Windows CE 6.0 with Source:
HTG-PXA270-WCE6 :$2,500

▪ Linux BSP with source:
HTG-PXA270-SIR-LNX: $1,299
