Kintex®-7 PCI Express Development
Board
|
|
|
|
|
|
||||||
|
l

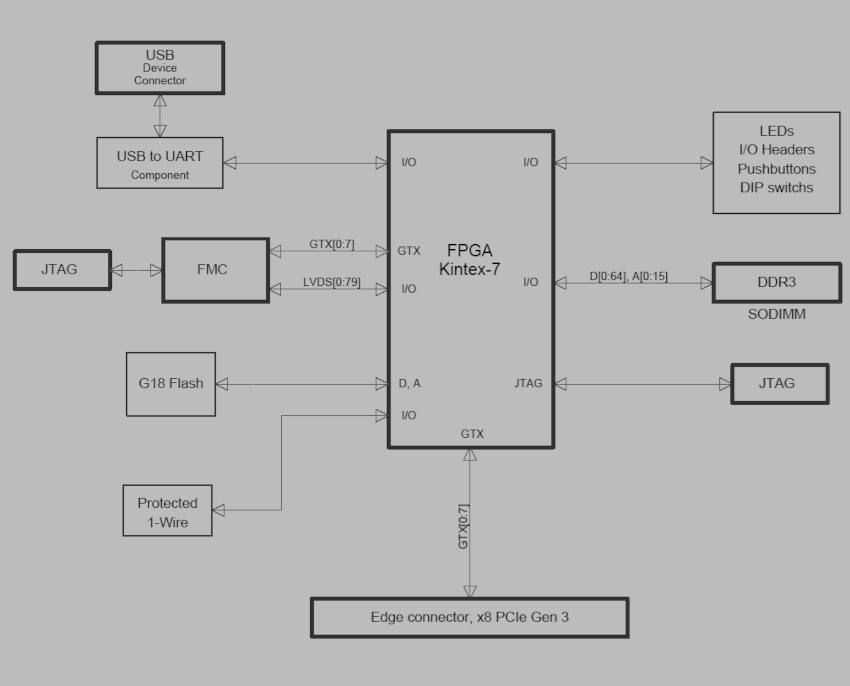

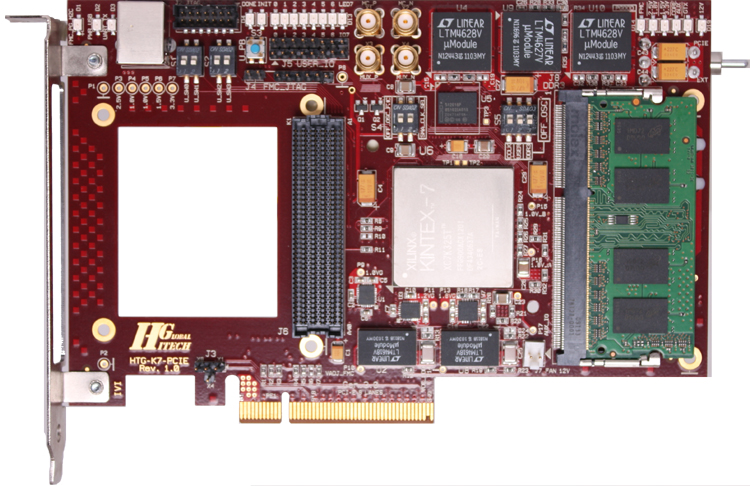

Powered by Xilinx Kintex-7 K325T or K410T FPGA (in FFG900 and FBG900 packages) and supported by eight-lane PCI Express Gen2 (hard)/Gen 3 (soft), FPGA Mezzanine Connector (FMC), DDR3 SO-DIMM, and wealth of different reference designs, the HTG-K700 provides a very flexible and powerful platform for development and production of many different FPGA based applications. Placement of the FMC connector on the front panel side provides mechanical flexibility for more effective expansion of the platform's functionality. Availability of 8 GTX serial transceivers and 160 single-ended I/Os (80 LVDS) along with wealth of off-the-shelf FMC modules enable the HTG-K700 platform usage for wide variety of different applications. Supported by pre-verified reference designs and software components, the HTG-K700 reduces engineering design cycles and accelerates time to market requirements. |
|||||||
|
|
|||||
|
►Features:
▪
Xilinx Kintex-7 XC7K325T-2FFG900, XC7K325T-3FFG900, XC7K410T-2FFG900, XC7K410T-3FFG900

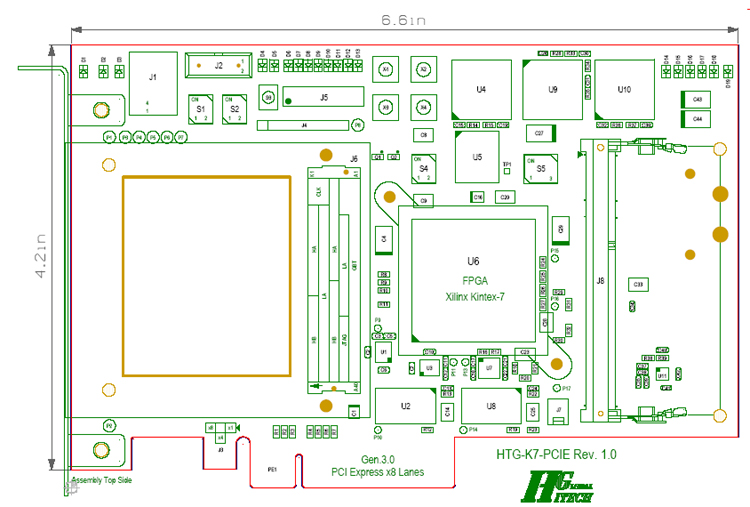

▪ x8 PCI Express Gen 2 through hard-coded PCI Express controller inside the FPGA or Gen3 through soft IP core ▪ DDR3 SODIMM up to 8GB (shipped with 1GB density) ▪ FMC HPC connector with 160 Single-ended (HR I/Os ranging from 1.2V-3.3V) and 8 GTX (12.5Gbps) Serial I/Os. The I/O bank voltages are controlled through the V_adjust option. - Placement of the FMC connector on the front side of the board allows effective interface of FMC modules through the front panel ▪ USB to UART Bridge ▪ Micron G18 flash for fast FPGA configuration and PCI Express enumeration ▪ SMA connectors for additional System and FMC clocks ▪ Support for both PCI Express and stand alone modes ▪ Standard ATX and wall power supply connectors ▪ General Purpose I/Os (GPIO) available through standard headers ▪ IP protection/security chip ▪ Size: 6.6" x 4.25" |
►Software: - PCI Express Driver Source Code (C) - Windows XP or Linux - PCI Express Back End (High Performance DMA Engine) ►Ordering information
Part Numbers:
►Kit
Content |
||||
|
Referent Designs: Additionally, the framework allows users to simulate, integrate and test Ethernet and DMA cores (licensed separately) in their designs with time limited synthesizable binaries and simulation libraries. Following figure shows the elements and interfaces of the framework.
The base framework provides all the design files, device drivers and API to access the memory mapped registers inside the FPGA. It enables end users to instantiate and control custom logic blocks through the provided GUI application. Another key feature of the base EFW is the capability to program and erase the G18 BPI memory on the HTG-K700 platform through the PCIe interface at very high speeds. Integrating the Field Upgradeable controller allows any user design to be field upgradeable through PCIe. It can also eliminate the need for the USB platform cable during the design and development phase. The base framework also provides the targeted wrapper for the 1066Mbps (533MHz) DDR3 controller. Memory mapped I2C controllers are also integrated in the EFW to control and configure the PHYs and clock elements on the HTG-K700 platform. An unrestricted GiGE MAC core along with the basic L2 packet generators and checkers allows the user to implement GiGE interface on the module (through FMC daughter card). EFW also serves as the evaluation platform for the Ethernet IP solutions. It allows the user to test the 10G and 40G Ethernet interface capabilities of the HTG-K700 (using HTG-FMC-SFP-OC FMC module) without any code development. User can then extend the Ethernet interfaces to user specific designs through the industry standard AXI4-Streaming interface. Full simulation libraries included in the EFW enables the user to simulate and test the Ethernet interfaces before licensing the solutions. EFW’s integrated (time limited) 4-channel 128-bit data path (@ 250MHz) block DMA controller along with the PCIe device drivers allows the user to implement and verify high speed data and packet applications on the HTG-K7-PICE module. Key Features:
·
Framework includes module targeted and hardware verified RTL
blocks for: o x4 and x8 PCIe Gen2 hard IP block with PCIe application interface and arbiter o AXI4-Lite master/arbiter for distributed control and configuration of various EFW blocks o Field Upgradeable (FUp) controller for in-system field upgrade of the FPGA image through PCIe interface o 533MHz/1066Mbps DDR3 controller o I2C controllers o DRP controller for run-time control and configuration of the GTX transcivers · Time limited (30min) synthesizable binaries and full simulation libraries for hardware verified Ethernet solutions up to 40Gbps using the FMC (HTG-FMC-SFP-OC) interface module: o 40Gbps Ethernet using the QSFP+ interface on FMC module o 10Gbps Low Latency Ethernet using the SFP+ interface on FMC module · Time limited (30min) synthesizable binaries and full simulation libraries for hardware verified 128-bit data path Multi-channel (4) scatter-gather block DMA controller · All modules with industry standard AXI-4 streaming interface for data path and AXI-4 Lite interface for control, configuration and memory interface · Top level RTL interface wrapper for custom user design block for easy implementation of user logic · Linux device drivers and API for PCIe interface
·
A single unified GUI for entire EFW with scripting support |
|||||
| Accessories & Tools | |||||
|
|
 FMC daughter card with two SFP+ connectors, two 10Gbps physical layer transceivers which provide full PCS, PMA, and XGXS sub-layer functionality Part Number: HTG-FMC-SFP-PLUS Price:$895 |
|

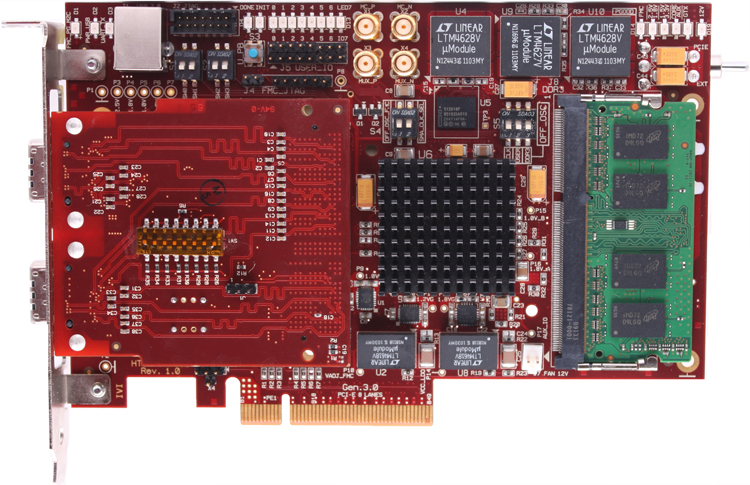

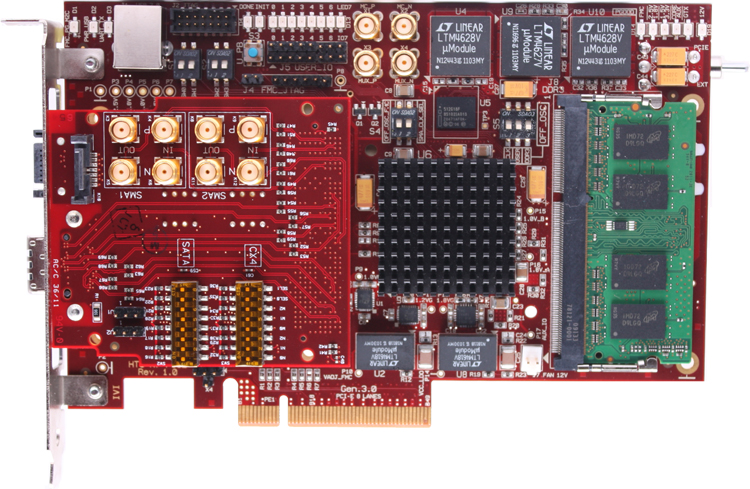

 FMC daughter card with one CX4, two SATA, and two SMA ports Part Number: HTG-FMC-CX4-SATA-SMA Price: $545 |
 FMC daughter card with x8 PCI Express Root interface Part Number: HTG-FMC-PCIE-RC Price: $695 |
 FMC daughter card with 8 SMA ports and pin headers providing access to 33 LVDS/66 Single-ended IOs Part Number: HTG-FMC-SMA-LVDS Price: $595 |
 FMC daughter card with four SFP+ connectors supported by programmable clock with start up value of 156.25MHz Part Number: HTG-FMC-X4SFP+ Price:$695
|
|
 PCI Express Test Module & Serial IO Expander Part Number: HTG-PCIE-TEST Price: $695
|
 PCI Express Gen3 Development PC (Part Number: HTG-GEN3-PC) |
||
|
