HTG-K810 Xilinx Kintex® UltraScale™ COM EXPRESS CPU Card (Type 6)




Supported by Xilinx Kintex UltraScale XCKU-60, 085, or 115 FPGA and wide variety of expansion modules, the HTG-K810 platform is ideal for applications requiring high performance Xilinx FPGA programmability and flexible hardware platform.

Modular architecture of the HTG-K810 Kintex UltraScale platform provides great level of versatility through one industry standard Vita57.4 FPGA Mezzanine Connector (FMC+) with access to 160 Single-ended (80 LVDS) and 24 GTH Serial Transceivers.

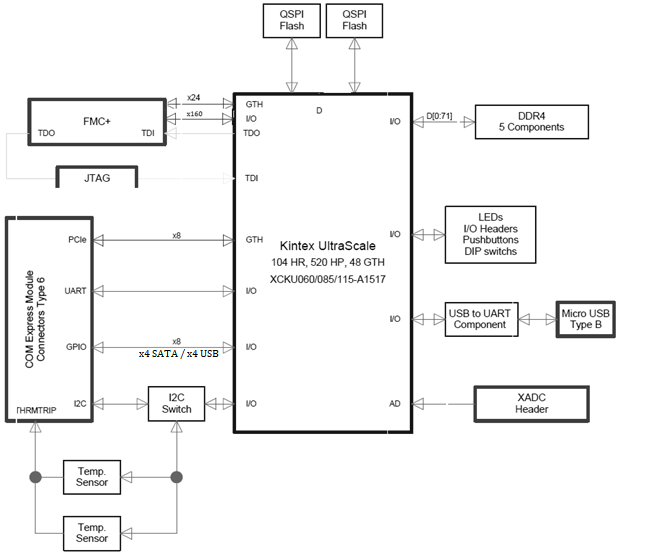

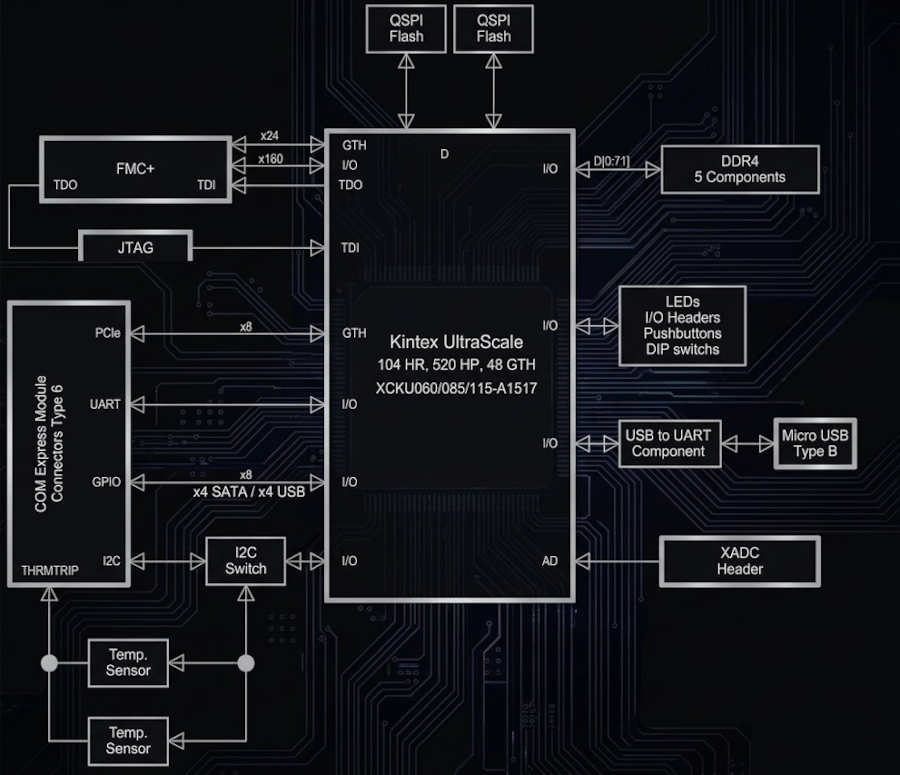

Main Features:

Xilinx Kintex UltraScale 060, 085, or 115 FPGA in A1517 package
Type 6 COM Express dual port
     - x8 PCI Express
     - x4 SATA (KU085 and KU115 models)
     - x4 USB (KU085 and KU115 models)
x1 Vita57.4 (FMC+) port  with 160 single-ended I/Os  and 24 GTH Serial Transceivers
72-bit DDR4 Components (2.5GB or  5GB)
Configuration Flash
USB/UART
Programmable Clocks (with default frequencies but programmable through I2C bus)
XADC Headers
GPIO Headers
JTAG Header
125mm x 95mm (Type 6 -Basic)


Kit Content:

Hardware:
-
HTG-K810 Xilinx Kintex UltraScale board

Reference Designs/Demos:

- DDR4 Memory Controller

Documents:

- User Manual
- Schematics (in searchable .pdf format)

Ordering & Availability Information

HTG-K810-60-2   (-2 speed grade)   , Price:  [contact us]
HTG-K810-85-2   (-2 speed grade)  , Price : [contact us]
HTG-K810-85-3   (-3 speed grade)  , Price : [contact us]
HTG-K810-115-2 (-2 speed grade)  , Price:  [contact us]
