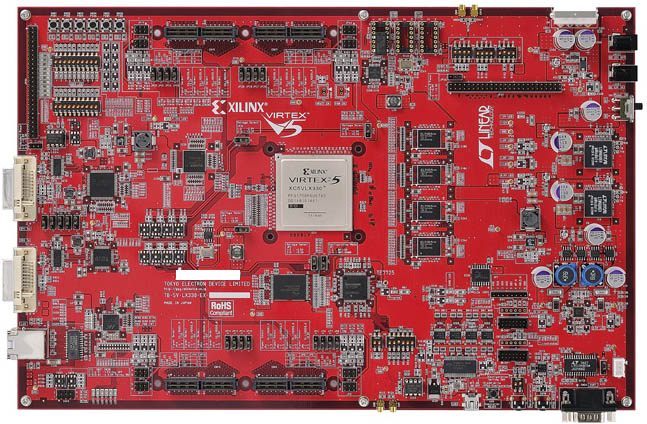

Virtex™ 5 LX330 Multimedia Development Platform
|
|
|
Virtex™ 5 LX330 Multimedia Development Platform |
|
|
|
|
lThis
HAPS compatible Virtex 5 platform is ideal for Multimedia ASIC
Prototyping developments. The on-board LX330-2 FPGA provides
around 330K logic cells. Designers can stack multiple number of
HTG-LX330-DVI platforms to create a high-density/high
performance system.
|
|
|
|
||
|

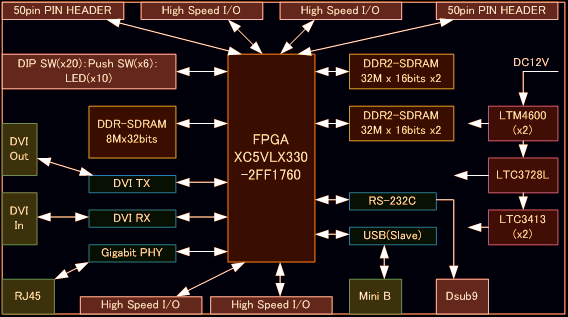

Features:
►
Xilinx Virtex-5 XC5VLX330 -2FF1760
Ø
l►
512 Mb (32Mword x 16bit) DDR2 Chip: 4 pcs. (2 memory configuration)
l►
128 Mb (4Mword x 32bit) DDR Chip: 1pc
Ø►
DVI Tx/Rx (up to UXGA)
Ø►
USB (slave)
Ø►
10/100/1000 Ethernet
Ø►
RS-232C
Ø►
Four 120 pin Samtec High-speed connectors (59
pairs x 4)
Ø►
50 pin Pin Header x2
Ø►
Configuration contro
Ø
Ø
|
Reference
Designs :
l►
DDR2-SDRAM
DFI reference design
l►
DVI
frame buffer reference design
Ordering information ►
Part Number: HTG-LX330-DVI |
|
|
