Multi Altera Stratix II board for ASIC SOC Prototyping


	Altera Stratix II Multi FPGA Development Platform (ASIC/SOC Development)

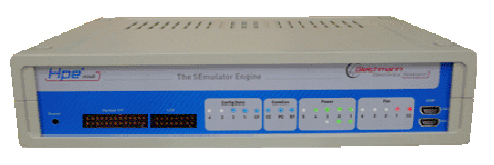

Front view ▲

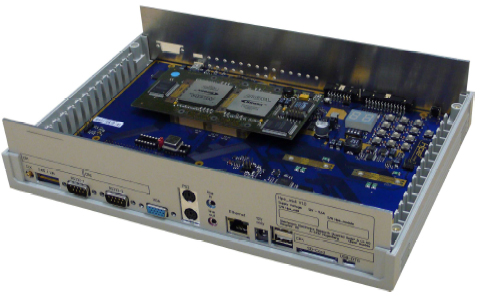

Multi FPGA Module (pluggable to the Base Board) ▲

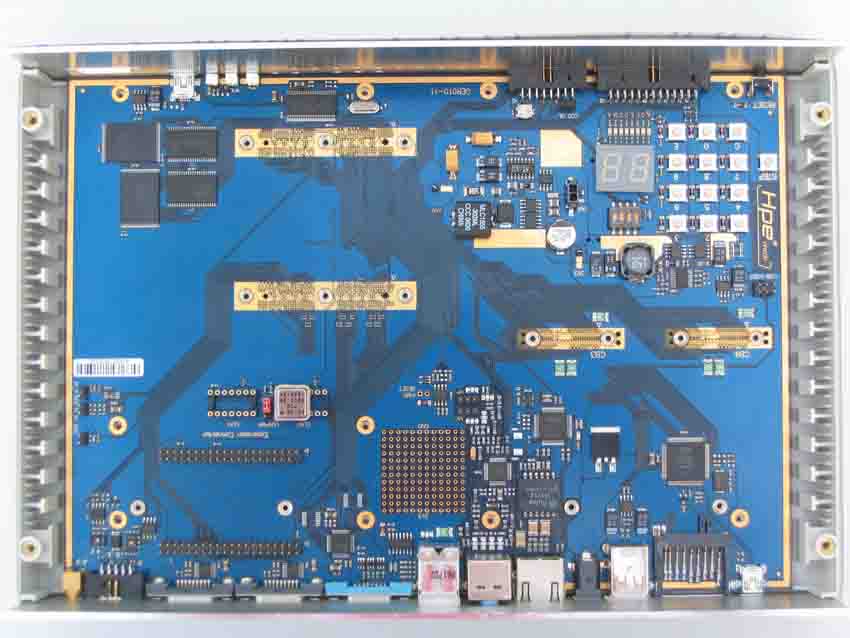

Base Board with Peripherals ▲

The Hpe_midi Platform consists of a "Base Board", "Add-on FPGA Module", and "Case". The Base Board is rich with industry standard peripherals, communication ports, power module, prototyping area, expansion/interface connectors, display ports, clock, and AD/DA connectors. The Base Board provides a flexible and versatile platform that can host custom-made daughter cards and modules.

Series of HMXx-AS2 modules with 1, 2, 4, and 8 Altera Stratix-II FPGAs (EP2S60 or EP2S180) are available and can be used in conjunction with the Base Board. The connection to the main board is done by two 364 pin Elastomer module connectors.

Series of add-on modules (connected through 132-pin child-board interface) provide eSATA2, Logic Analyzer, PCIe, Ethernet, and extended memory interface.

Base Board

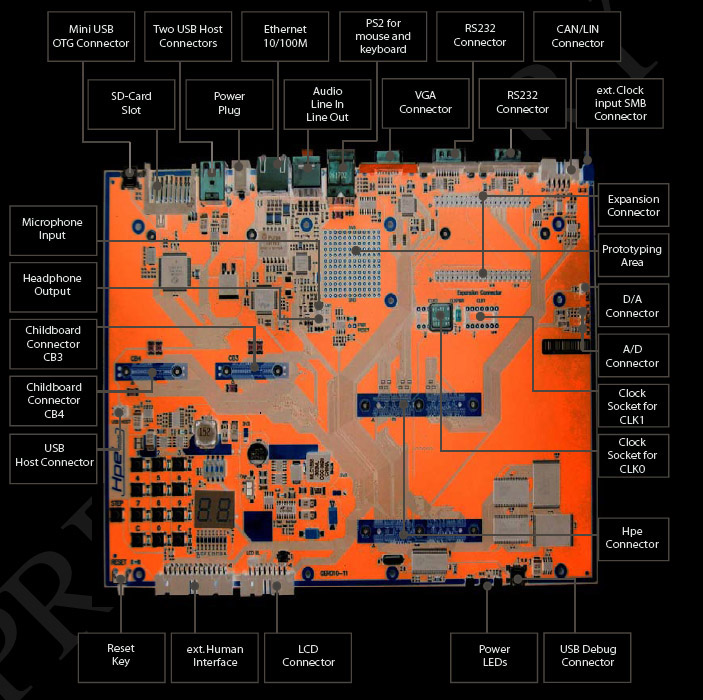

Base Board's Features:

• A/D Converter (internal)
• Audio Interface with the AC’97 Stereo Audio Codec and line-in/line-out (back side) plus additional headphone and microphone connectors (internal)
• CAN Interface with CAN Transceiver (back side)
• Hpe Childboard Connector for the attachment of daughter boards (internal)
• D/A Converter realized with a sigma delta converter (internal)
• Ethernet Interface, 10/100M Port, full/half duplex (back side)
• Expansion Connector with 46 user I/O’s on a easily accessible header connector (internal)
• Hpe Connector for the attachment of various modules (internal)
• LIN Interface with LIN transceiver (back side)
• PS/2 Ports for keyboard and mouse (back side)
• SD Card Reader (back side)
• Serial Interfaces with two 9-pin RS232 ports (back side)
• SMB connector for external clock insertion (back side)
• Three USB Host Connectors USB 2.0 compatible (two on the back side and one internal)
• USB OTG Connector (back side)
• USB Target Connector for debugging (front side)
• VGA Interface with a 15-pin D-sub connected to a triple DAC with 24 bit colors (back side)• Two-Digit 7-Segment Display (internal)
• Four-bit DIP Switches (internal)
• External User Interface for a second LED row, key matrix, DIP switch, and single step key (front side)
• 3×4 Key Matrix (internal)
• LCD Connector for character displays (front side)
• Eight LEDs (internal)
• Reset Key (front side)
• Single Step Key (internal)
• Asynchronous SRAM 2×4Mbit, organized as 256 k words of 32 bit
• Clock Sources with one 100MHz oscillator equipped on one of the two clock sockets
• Parallel Flash 2×128Mbit organized as 8M words of 32 bit
• Power Supply for the generation of the 3.3V and 5V
• 12×12 Prototyping Area for assembling individual components
• Reset Supervisor with an on chip I2C serial 2 kbit CMOS EEPROM

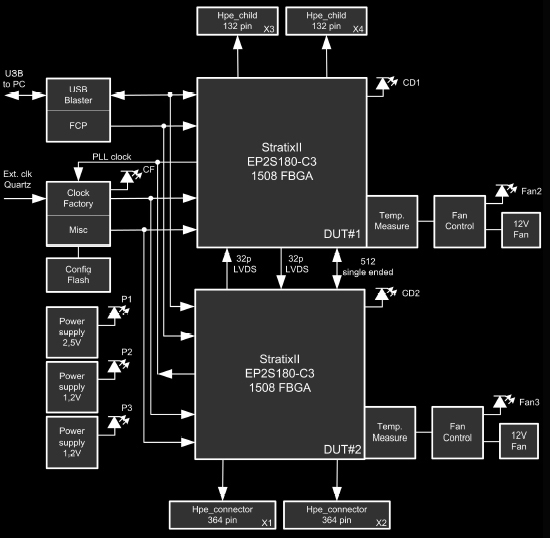

Multi FPGA Module (HMX2-AS2)

• Two 1508 pin ALTERA® Stratix II FPGA EP2S180F1020C3N (DUT#1 and DUT#2)
• 64 LVDS pairs and 512 single ended signals connects the two FPGA together
• Interconnection designed for highest possible speed
• Two 364 pin Elastomer module connectors (X1, X2)
• Two 132 pin Elastomer Hpe Child board connectors (X3, X4), one with low voltage differential signals (LVDS) and one for DDR2-SDRAMs
• Flash for the configuration of the FPGA
• CPLD for clock distribution (clock factory), configuration and fan control (PWM)
• CPLD for FPGA Code Protection (FCP) and ALTERA USB blaster
• Advanced Encryption Standard (AES), programmable on customer request

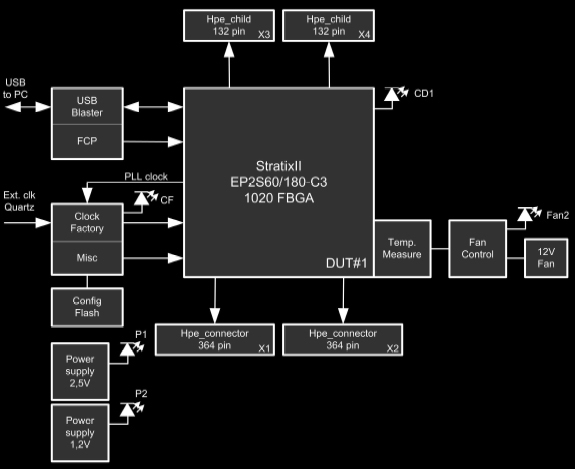

Single FPGA Module (HMX1-AS2)

• One 1020 pin ALTERA® Stratix II FPGA EP2S60F1020C3N or EP2S180F1020C3N (DUT#1)
• Two 364 pin Elastomer module connectors (X1, X2)
• Two 132 pin Elastomer Hpe Child board connectors (X3, X4), one with low voltage differential signals (LVDS) and one for DDR2-SDRAMs
• Flash for the configuration of the FPGA
• CPLD for clock distribution (clock factory), configuration and fan control (PWM)
• CPLD for FPGA Code Protection (FCP) and ALTERA USB blaster
• Advanced Encryption Standard (AES), programmable on customer request

Deliverables: Based Board inside a case, power supply, Hpe_Desk system software, CD-ROM (user manual, data sheets, etc.) , and a LEON3 based test program Part Number & Price: ► Hpe_midi : $1,950 [ Base Board & Case] ► HMX1-AS2-60 : $2,500 [1 FPGA add-on module with ALTERA Stratix II EP2S60, 1020 FBGA, speed grade C3 ► HMX1-AS2-90 : $2,950 [1 FPGA add-on module with ALTERA Stratix II EP2S60, 1020 FBGA, speed grade C3 ► HMX1-AS2-180 : $5,595 [1 FPGA add-on module with ALTERA Stratix II EP2S180, 1020 FBGA, speed grade C3 ► HMX2-AS2-180 : $12,700 [2 FPGA add-on module with ALTERA Stratix II EP2S180, 1508 FBGA, speed grade C3
Add-on Optional Modules
	The Hpe_child board HC-PCIe4 connects the Hpe_midi with a PC or any other system via a standard PCI Express high speed link. The Hpe system uses this interface to connect SEmulator and Logic Analyzer with a PC. At the heart of this interface is an ALTERA ArriaGX FPGA. Part Number: HC-PCIE4 Price: $2,500
	The Hpe_child Board HC-ETH offer the developer 2 additional Ethernet connections for the Hpe system. Major component of the interfaces are two National DP83865. These are fully featured Physical Layer transceiver with integrated PMD sublayers to support 10BASE-T, 100BASE-TX and 1000BASE-T Ethernet protocols. The DP83865 is an ultra low power version of the DP83861 and DP83891. Part Number: HC-ETH Price: $590
	The interface board HI-PCIe4 can be inserted in every X16 PCI Express slot in the PC. It connects the internal PCIe bus to the standard PCI Express X4 external connector. Since this interface board is not active, cable length is limited to two meters Part Number: HI-PCIE4 Price: $390
	HC-COLE is a connector board for 5 * 20 pin flat ribbon cables. One of the connectors is at the end of the board and not populated, because a hole in the rear panel is required. If you order the HC-COLE together with your Hpe_midi, you will get the populated connector and the modified rear panel for free. Every pin is connected to a LED which shows the logic level. You can activate respectively 20 LED's together with a jumper. Part Number: HC-COLE Price: $395
	The bundle contains the interface card HI-PCIe4, the child board HC-PCIe4 and a cable with a length of 2m. This is all you need for a high speed link between Hpe_midi and a Host PC. We recommend using a Shuttle PC with internal graphic controller, since it offers the possibility to use the PCIe X16 graphic slot for the HI-PCIe4. Part Number: PCIE4-2M Price: $250
	HC-CONN is a connector board with two eSATA2-connectors, which are connected on LVDS signals, e.g. 1 Gbit for StratixII. Furthermore there is the possibility to plug in 5 * 20 pin. flat ribbon cables. (The connectors are not populated) Part Number: HC-CONN Price: $370
	A 16Mbit * 64 SDRAM memory expansion module used for graphic and video applications where a direct connection to the internal controller is required (independent from the CPU memory bus). Part Number: HC-SDRAM-128 Price: $270
	A Logic Analyzer connection module (Mictor) with 96 signals to a child board connector. Part Number: HC-MESA Price: $390
	A 132-Pin or 364-pin Child Board Connector Part Number: HC-C132 Price: $70 Part Number: HC-C364 Price: $85
