Cyclone II NIOS II Development Platform

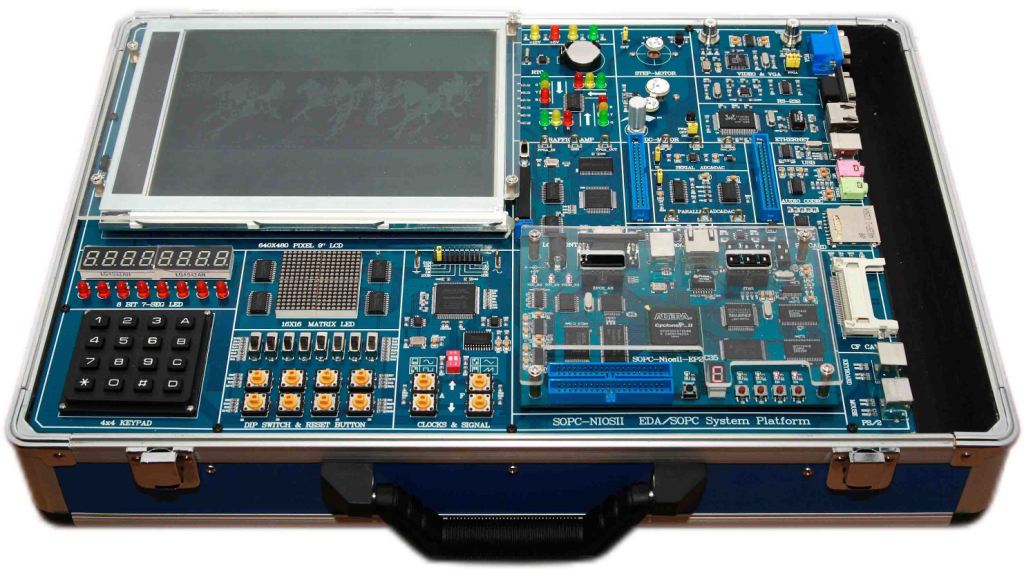

The NIOS II Development platform consists of the "Base Board" and "Cyclone II Mother Board". The Base Board provides human interface, display, clocking, expansion connectors, and communication ports. The Mother Board provides FPGA resources, memory, and additional communication ports.

The NIOS II Platform is ideal for Embedded System, SOC, and EDA circuit designs.

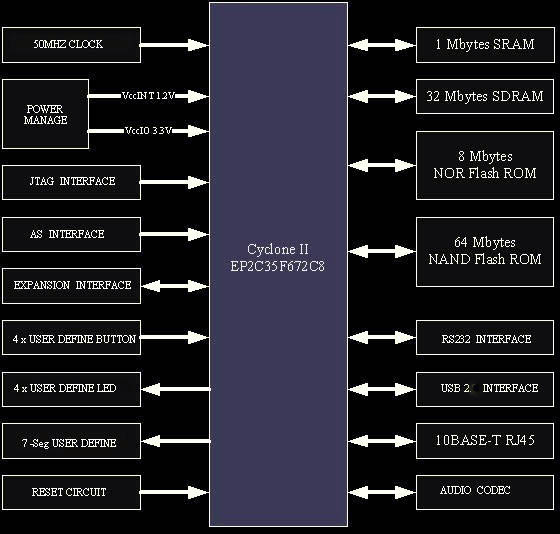

"Mother Board" Block Diagram



Platform Specification:

- Cyclone II EP2C35F672C8 FPGA
- 640×480 Pixel 9” LCD
- RTC
- DC-Motor/Step-Motor
- VGA interface
- x1 channel video output
- x1 RS232 port
- x1 Ethernet Interface (RTL8019AS)
- x1 USB1.1 Interface(PDIUSBD12)
- SD Card Interface (for SD/MMC Cards)
- SPI/IIC Interface for Audio CODEC Module
- x2 PS2 Interface
- CF Card/IDE HardDisk Module
- 12bit Serial ADC/DAC (SPI)
- 8bit parallel ADC/DAC (40MSample/s)
- Touchscreen Controller
- IIC Interface EEPROM
- 1-Wire Digital thermometer sensor
- Expansion Interface
- x1 Irda Module
- x1 Digital (supports 24MHz、12MHz、6MHz、1MHz、100KHz、10KHz、1KHz、100Hz、10Hz and 1Hz clocks)
- x1 Analog Signal (support 80 ～ 8KHz 、amp 0 ～ 3.3V adjust Sine/Square/Sawtooth Wave)
- x1 16×16 matrix LED
- x1 4×4 Keypad
- x8 bit 7-seg LED
- x8 lamps LED
- x 8 DipSwitch
- x8 Lamps Button


Mother Board Specification:

 - Altera Cyclone II EP2C35F672C8
 - Configure chip EPCS16
 - 1MB（256K×32）SRAM
 - 8MB NOR Flash ROM
 - 32MB SDRAM
 - 64MB NAND Flash ROM
 - Audio CODEC I/O Interface
 - USB2.0 Interface
 - RS232 Interface
 - 10/100M Ethernet Interface
 - 50MHz System clock
 - x4 User LED
 - x4 User Keypad
 - x1 7-Seg LED
 - x1 Reset button
 - x2 expansion Interface
 - AS mode/JTAG mode Interface
Deliverables:

- Mother Board and Experiment platform
- Sample Code ( with Quartus II 5.0 Software and NIOSII IDE)
- USB Download JTAG Cable
- Serial1 Cable
- USB Cable
- Power  Cable
- Ethernet Cross Cable
- USB-Blaster User guide
- Mother board Hardware Guide

Part Number & Price:

HTG-NIOS2 : $2,000
