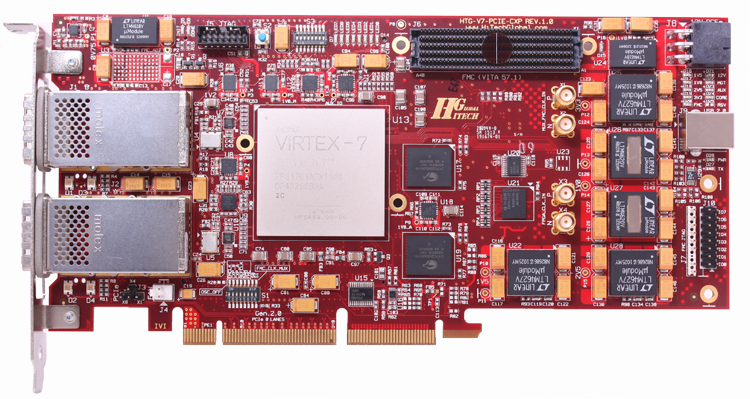

HTG-710: Xilinx Virtex™ -7 High-End Networking Card With Dual CXP Ports


** Two DDR3 SODIMM Sockets are placed on the reverse side

Powered by Xilinx Virtex-7 V2000T, V585, or X690T, the HTG-710 is ideal for High-End networking applications requiring multi port data transfer above 100Gbps. This board is also ideal for ASIC/SOC prototyping, high-performance computing, high-end image processing, PCI Express Gen 2 & 3 development, and general purpose FPGA development

The High Pin Count (HPC) FMC connector provides access to 160 single-ended I/Os (80 LVDS) and 4 high-speed Serial Transceivers of the on board Virtex 7 FPGA. Availability of over 100 different off-the-shelf FMC modules extend functionality of the board for variety of different applications with minimum effort and cost.

Eight lane of PCI Express Gen 2 is supported by the hard coded controllers inside the Virtex 7 FPGA. The board's layout, performance of the Virtex 7 FPGA fabric, high speed serial transceivers (used for PHY interface), flexible on-board clock/jitter attenuator, along with soft PCI Express Gen 3 IP core allow usage of the board for PCI Express Gen3 applications.

The HTG-710 Virtex 7 FPGA board can be used either in PCI Express mode (plugged into host PC/Server) or stand alone mode (powered by external ATX or wall power supply).

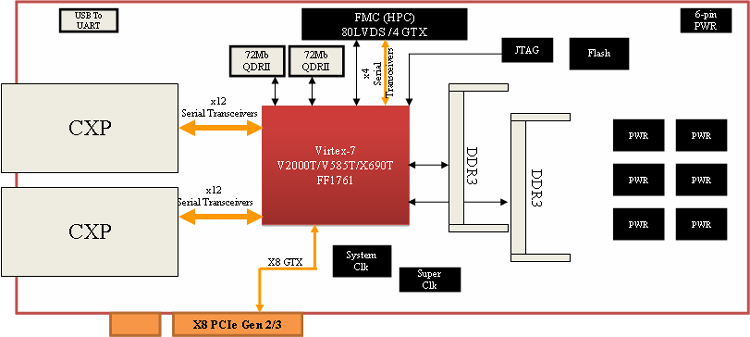

Features:

Xilinx Virtex-7 V2000T, 585T, or X690T FPGA
x2 CXP Ports (120 Gig each)
x8 PCI Express Gen2 /Gen 3  edge connectors
  - Gen 2: using FPGA hard-coded PCI Express Gen2 controller
  - Gen 3: using soft PCI Express Gen 3 IP core
x1 FPGA Mezzanine Connector (FMC) providing access to 160 single-ended I/Os (80 LVDS) and 4 high-speed Serial Transceivers
x2 DDR3 SODIMM sockets providing access to up to 16GB of DDR3 Memory
x2 QDR II SRAM (72Mb each)
Configuration through JTAG or Micron G18 Flash
IP security chip set for protecting any designs loaded to the FPGA
USB to UART bridge
LEDs & Pushbuttons
Size: 9.5" x 4.25"
Supports both PCI Express and Standalone operations
   - 12V/6A Power adapter for standalone operation



Kit Content:

Hardware:
-
HTG-710 board
Software:
- PCI Express Drivers (evaluation) for Windows & Linux
Reference Designs/Demos:
- PCI Express Gen3 PIO
- DDR3 Memory Controller
-
QDR II Memory Controller
Documents:

- Hardware Setup Guide
- User Manual
- Schematics (in searchable .pdf format)

Ordering information

- HTG-V7-PCIE-CXP-585-2     Price: Contact Us
-
HTG-V7-PCIE-CXP-690-2     Price: Contact us
- HTG-V7-PCIE-CXP-690-3     Price: Contact us
-
HTG-V7-PCIE-CXP-2000-2   Price: Contact us
