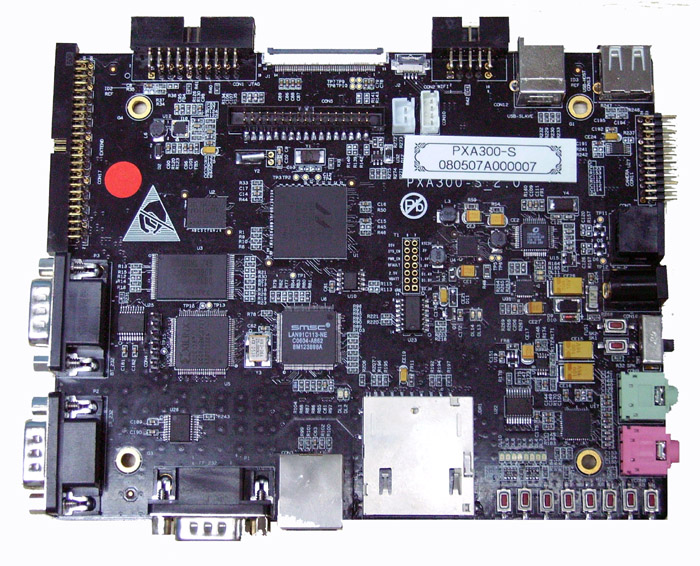

| Hardware
Specification |
|

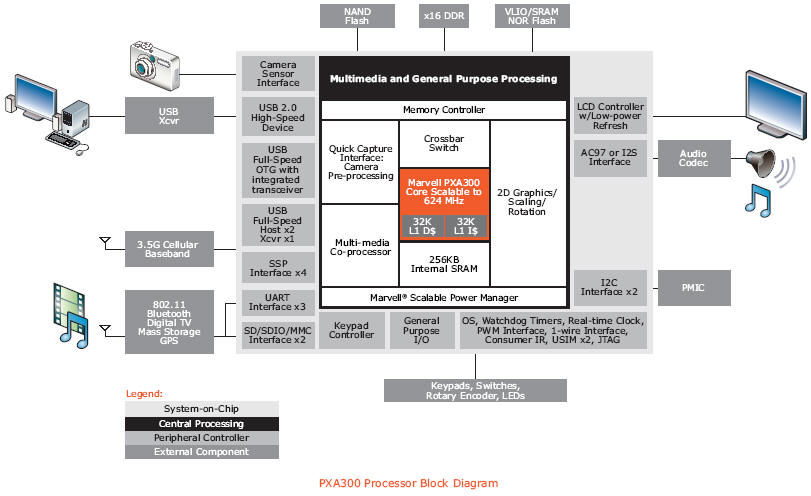

Processor |
MARVELL Xscale
PXA300 624MHz 88AP303-AI-BGF2C624-TN22 |
|
DDR-RAMs |
64MBYTE |
|
NAND-FLASH |
256MBYTE |
|
PMU |
LP3972-A514 PMU
from NS |
|
Ethernet |
10M/100M port (for
downloading image and connecting to internet) |
|
LCD |
5.6”TFT LCD
480*320; 3.5” TFT LCD compatible 320*240 |
|
Touch Screen |
4 wire type touch
screen |
|
JTAG interface |
Connecting emulator
(for download/debug program) |
|
RTC |
Supports RTC |
|
MMC/SD port |
x2（compatible MMC
card and SD card） |
|
FF serial port |
x1,supporting baud
rate:38400; printing debug information |
|
BT serial port |
x1 |
|
Ir serial port |
x1 |
|
USB HOST |
x1 * host port，USB-HOST
1.1 |
|
USB CLIENT |
x1 *USB slave port,
USB-SLAVE 2.0 |
|
LED |
x8 circuit LED |
|
Keypad |
x8 *key , PXA300
matrix keypad |
|
Speaker |
x1* external speaker |
|
Mic / Record |
x1 * Mic input port
supports record function |
|
Earphone |
x1 * earphone output
port |
|
TV-OUT interface |
x1，connecting the
video/radio signal with TV. |
|
CAMERA |
x1* camera port，1.3M
pixel (separate Camera module, optional） |
|
Expansion port |
|
|
WI-FI |
x1（separate WIFI
module, optional） |
|
Battery |
x1*3500mA/h built-in
li-battery，3hours continuation ,supports socket recharge and USB
recharge. |
|
Software Specification |
|
Linux
BSP |
|
Item |
Name |
Description
|
|
Bootloader |
BLOB |
Download by emulator, NAND FLASH
setup |
|
Linux Kernel |
Linux 2.6.21 |
Download by Ethernet port , enter
into LINUX system |
|
Driver |
LAN Driver |
LAN91C113 driver |
|
LCD Driver |
5.6”lcd,3.5”lcd Frame buffer
driver |
|
Touch Screen Driver |
5.6”lcd,3.5”lcd touch screen
driver |
|
RTC Driver |
RTC4513 driver |
|
SD/MMC Driver |
x2 * SD/MMC driver |
|
USB-HOST Driver |
USB-HOST 1.1 full speed 12Mbps
driver |
|
FF Serial Driver |
Fully functional serial drive |
|
BT Serial Driver |
Blue tooth serial driver |
|
IR Serial Driver |
IR Serial Driver |
|
LED Display Driver |
x8 circuit LED display driver |
|
KEYPAD Driver |
x8 keypad（matrix keypad and
direct keypad）driver |
|
Earphone And SPK Driver |
|
|
MIC Driver |
|
|
TV-OUT Driver |
TV Radio , CH7024 |
|
CAMERA Driver |
OV9650/1.3m pixel camera driver |
|
BATTERY Driver |
Battery show driver |
|
File system |
JFFS2 |
support QT/Embeded GUI |
|

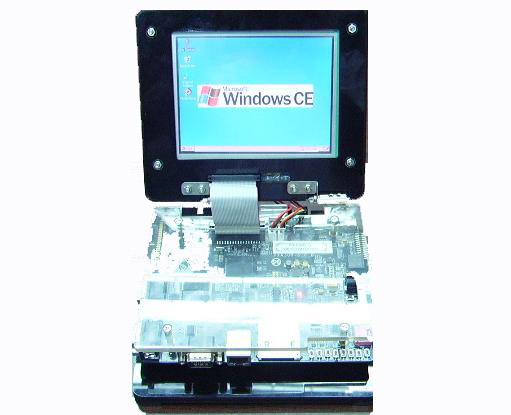

WINCE
BSP |
|
Item |
Name |
Description
|
|
Bootloader |
EBOOT |
Download by emulator, NAND FLASH
setup |
|
WINCE 5.0 |
NK |
Download by Ethernet port , enter
into WinCE system (SD card download optional) |
|
Driver |
LAN Driver |
LAN91C113 driver |
|
LCD Driver |
5.6”lcd,3.5”lcd driver |
|
Touch Screen Driver |
5.6”lcd,3.5”lcd touch screen
driver |
|
RTC Driver |
RTC4513 driver |
|
SD/MMC Driver |
x2 * SD/MMC driver |
|
USB-HOST Driver |
USB-HOST 1.1 full speed 12Mbps
driver |
|
USB-SLAVE Driver |
USB-SLAVE 1.1 full speed 13Mbps
driver |
|
FF Serial Driver |
Fully functional serial drive |
|
BT Serial Driver |
Blue tooth serial driver |
|
IR Serial Driver |
IR Serial Driver |
|
LED Display Driver |
x8 circuit LED display driver |
|
KEYPAD Driver |
x8 keypad（matrix keypad and
direct keypad）driver |
|
Earphone And SPK Driver |
|
|
MIC Driver |
|
|
TV-OUT Driver |
TV Radio , CH7024 |
|
WIFI Driver |
802.11g driver |
|
BATTERY Driver |
Battery show driver |
