Parallel Digital Signal Processing Platform








l

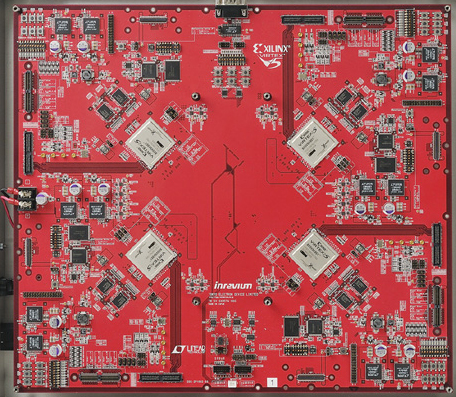

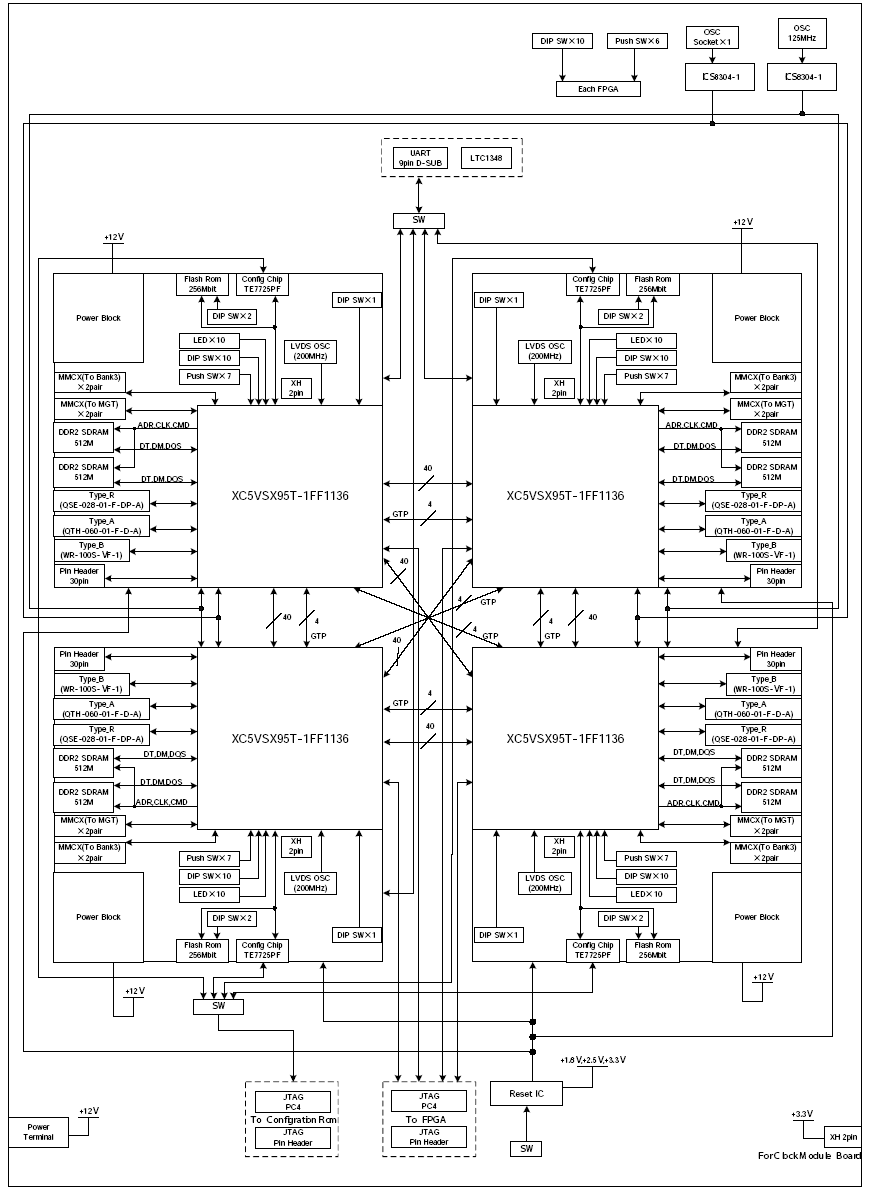

Powered by four Xilinx Virtex-5 SX95T FPGAs and supported by eight memory devices, this platform is ideal for Parallel Digital Signal Processing. This platform provides real-time processing capability, high throughput, and intensive math-processing capability for development of DSP based applications such speech processing, telecommunications, high-speed control, and more.

Availability of multiple IO expansion connectors extends the flexibility and functionality of board for many different applications.



Features:

► Xilinx Virtex 5  XC5VSX95T-1FFG1136C (four)
► 8Mwords x 16bits x 4 banks (512Mbits) DDR2-SDRAM (total of 8
    memory devices)
► 200MHz Xtal, 125MHz Xtal for MGT, USER_CLK and four external
    clock inputs via MMCX connectors
► IO Expansion connetors
   - Type_A connector (SAMTEC): Maximum 57 differential pairs or 119
   single pins
  - Type_B connector (JAE): Maximum 7 differential pairs or 14 single
    pins
  - GTP connectors (SAMTEC): MGT expansion I/O connector. Maximum
   4 MGT pairs
►Pushbutton Switches, LEDs and DIP Switches


 Ordering information

Part Number: HTG-V5-QUAD-SXT
Price: Contact us
