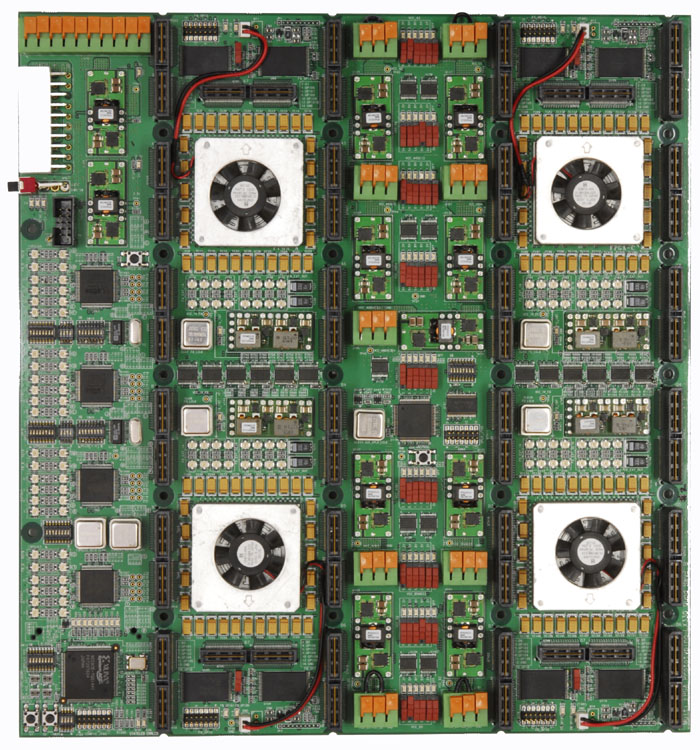

Multi-FPGA Prototyping (Quad LX330) Platform


This multi Xilinx Virtex-5 LX330 FPGA and high-performance prototyping platform provides a very flexible modular system which can be used for any ASIC, SOC, or ASSP development. Variety of different add-on modules easily extend the capability of the HTG-MFP-LX330 platform for supporting different industry standard and interfaces.


































Item Specification
FPGA Xilinx Virtex5 XC5VLX330/220-FF1760 4ea
Main Clock Source ISPCLK5620AV 4ea
Reference Clock 2 PLL(ICS525-01) : 1.2 ~ 131.5MHz 2 OSC Socket
Clock Connector 1 Differential  / 1 Single-Ended Reference Clock Input per ISPCLK5620AV
4 Differential  / 8 Single-Ended Signal Clock output per ISPCLK5620AV
2 Differential  / 4 Single-Ended  Clock Input/Output per FPGA
4 Differential  /84 Single-Ended  Clock Input/Output per FPGA
4 Single-Ended Input /Output per FPGA

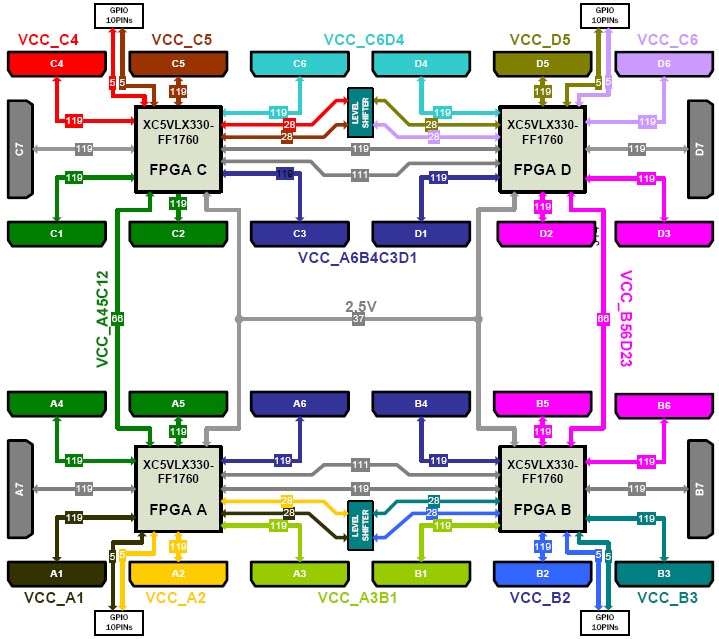

Interconnection Between FPGAs Total 741 Connections
FPGA "A" ↔ FPGA "B" Normal Connection : 111
Through Level Shifter : 56
Connect to CON7 : 119
FPGA "C" ↔ FPGA "D" Normal Connection : 111
Through Level Shifter : 56
Connect to CON7 : 119
FPGA "A" ↔ FPGA "C" Normal Connection : 66
FPGA "B" ↔ FPGA "D" Normal Connection : 66
FPGA "A" ↔ FPGA "B" ↔ FPGA "C" ↔ FPGA "D" 37
I/O Total 285 I/Os
FPGA "A" Total 714 I/Os (119 x 6ea)
FPGA "B" Total 714 I/Os (119 x 6ea)
FPGA "C" Total 714 I/Os (119 x 6ea)
FPGA "D" Total 714 I/Os (119 x 6ea)
Configuration JTAG 14-pin Configuration  JTAG port for FPGAs
SystemACE CompactFlash
- Revision selectable
FPGA PROM XCF32P 12ea
Power ATX PC Power Supply 220V/110V AC
FPGA Int. Regulator 1V/30A 4 ea
ETC Regulator 1.8V/3A  Regulator 1ea
2.5V/15A Regulator 1ea
3.3V/15A Regulator 1ea
FPGA VCCO Regulator 3.3V/2.5V/1.8V/1.5V/1.2V / 15A Regulator 9ea



► Part Number & Price:

-HTG-MFP-LX330  Price: Contact us

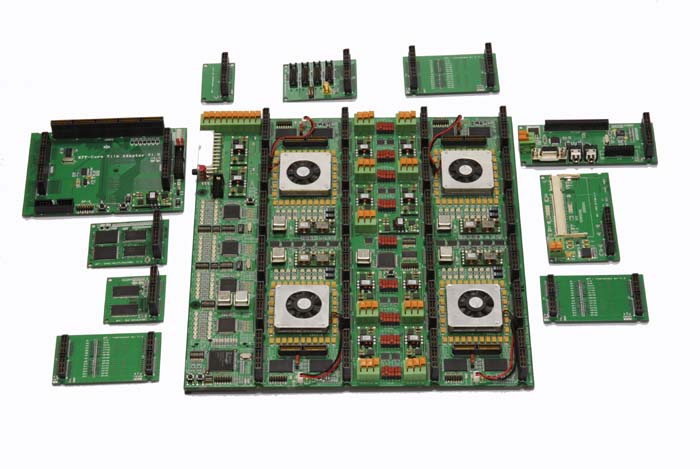

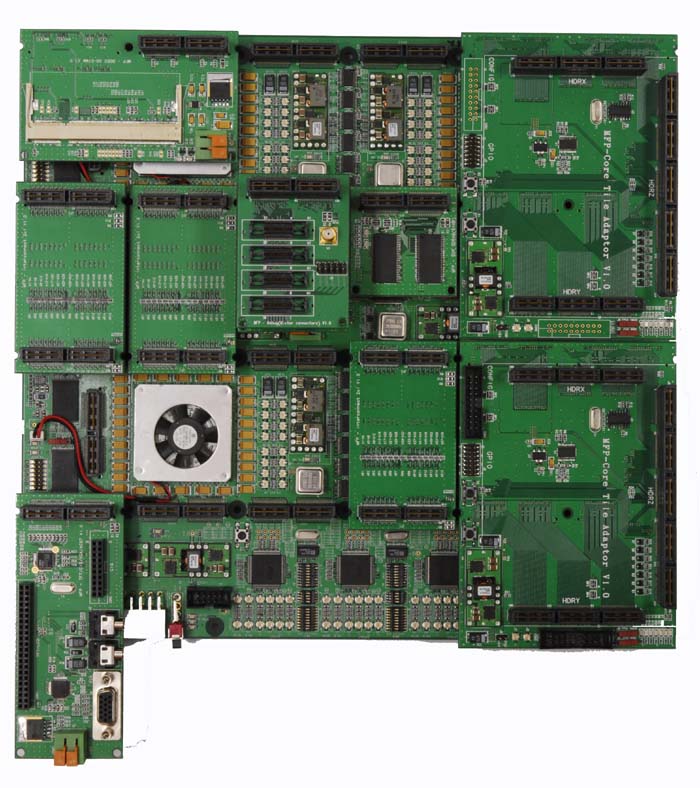

► Optional Add-on Modules & Accessories:

Add-on ARM Modules
Part Number: ARM CT926EJ-S
Part Number: ARM CT1136JF-S
Part Number: ARM CT1156T2F-S
Part Number: ARM CT1176JZF-S
Part Number: ARM CT11MPCore

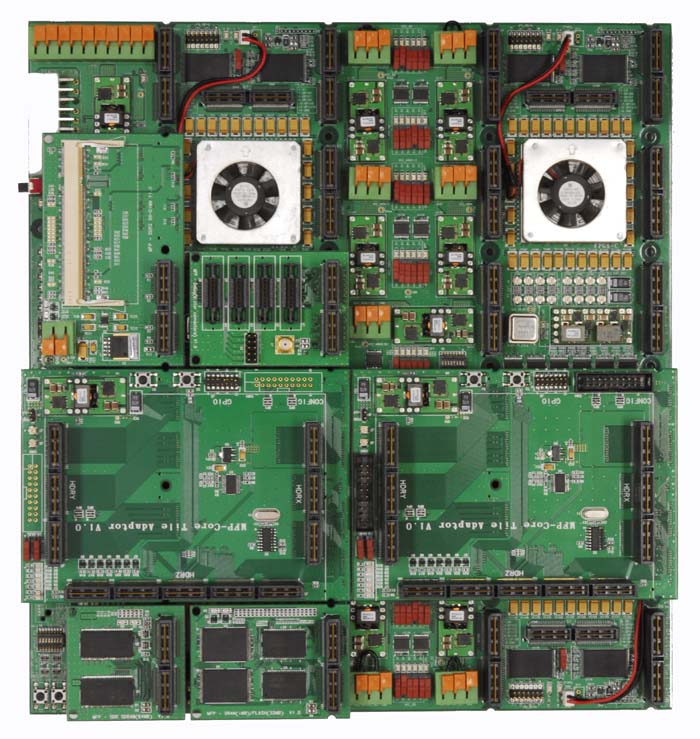

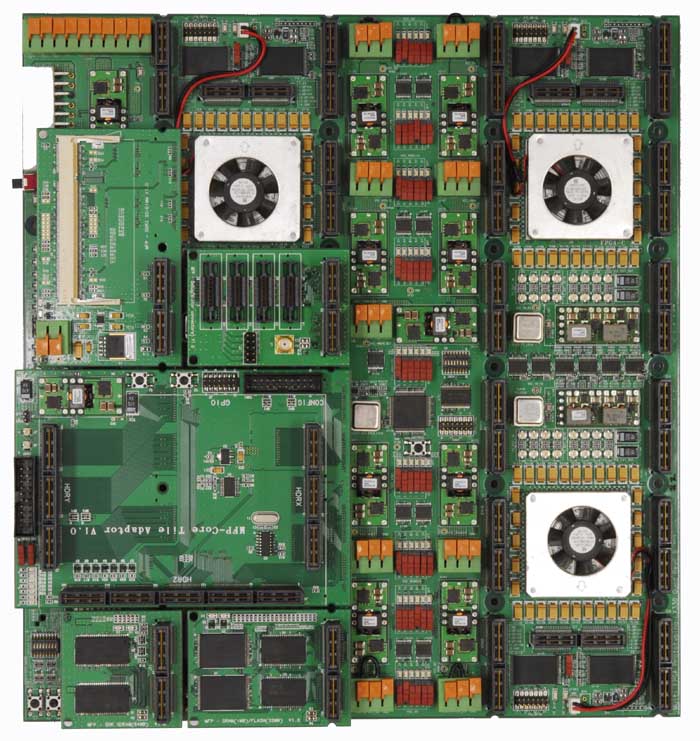

Adapter for Connecting ARM CoreTile Modules

Part Number:  MFP-330-CT
DDR-2 SO-DIMM Module

Part Number: MFP-330-DDR2


Debug Module with Mictor Connectors

Part Number:  MFP-330-DEBUG

TF-LCD connector, CIS connector, VGA port , and AC97 audio Module

Part Number: MFP-330-AV
1MB Asynchronous SRAM, 32MB NOR FLASH Module

Part Number: MFP-330-DDR2


Interconnection Module (1x1)

Part Number: MFP-330-INTC-11
Interconnection Module (2x1)

Part Number: MFP-330-INTC-21
100/10 Ehternet , USB2.0 HOST/OTG, UART 2port, IrDA 1port

Part Number: MFP-330-COM



64MB SDR SDRAM Module

Part Number: MFP-330-SRAM
PARS:
Toolbox for Simulink that allows users to build multi-FPGA (and/or DSP) applications from a single Simulink model.

 Price: Contact us
