ZRF-FMC: Xilinx
Zynq® UltraScale+™ RFSoC FMC+ (Vita57.4) Platform





ZRF-FMC is a Vita57.4 compliant daughter card adding FPGA gates and ADC/DAC interfaces available in Xilinx ZU28DR or ZU48DDR RFSoC devices to Vita57.4 compliant FPGA carrier boards.

The
ZRF-FMC   is supported by two 12-bit ADC 4.096 GSPS (ZU28DR) or 14-bit ADC 5 GSPS (ZU48DR) and six 14-bit DAC 6.4 GSPS (ZU28DR) or  10 GSPS (ZU48DR) ports. The ADC and DAC ports are supported through high-performance front panel  micro Rf connectors.

The ZRF-FMC mates with Vita57.4 compliant FPGA carrier cards to provide RF connectivity to systems.

The ZRF-FMC   is supported by 8GB DDR4 components for each Processor and Programmable Logic side.

Supported Devices (red boxes)

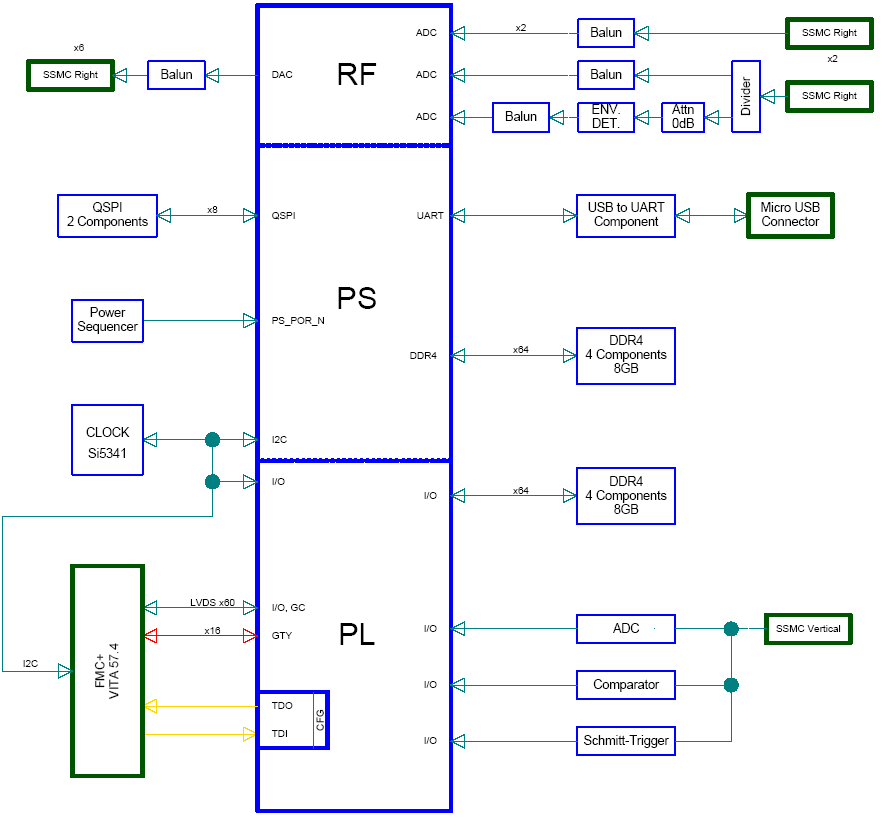

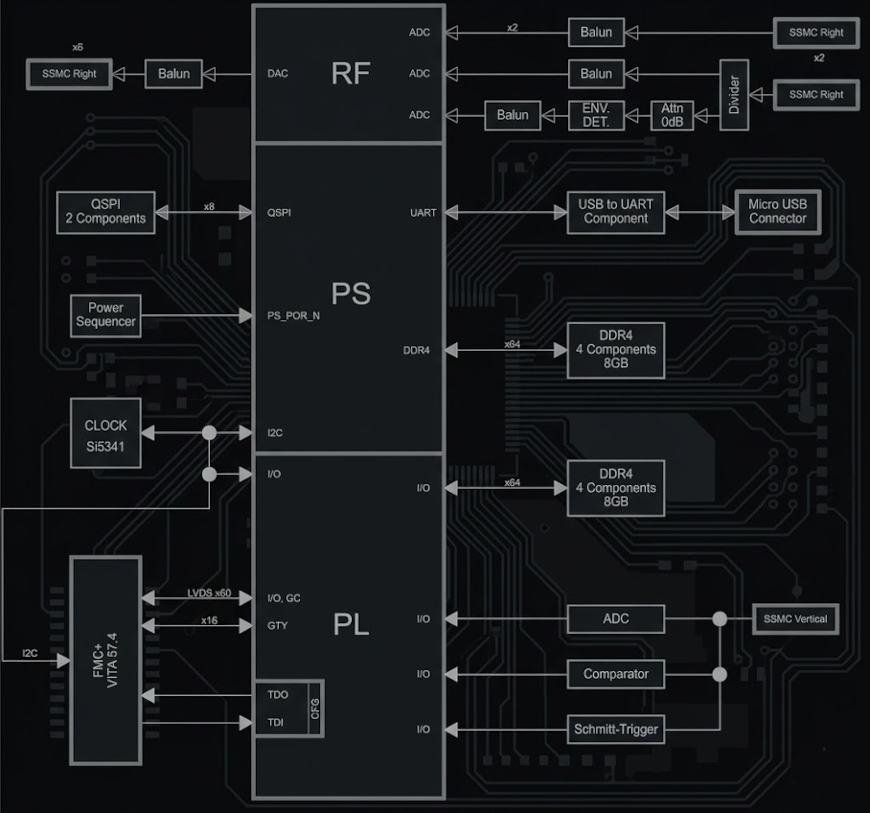

Main Features:

Xilinx Zynq UltraScale+ RFSoC ZU28DR or ZU48DR
x2 ADC (12-bit or 14-bit) ports
x6 DAC (14-bit) ports
x1 Vita57.4 FPGA Mezzanine Connector (FMC+ male)  with 60 single-ended I/Os  and 16 GTY (32.75Gbps) Serial Transceivers
Independent DDR4 memory for the FPGA  and the ARM Processors ( 8GB component for each interface)
Configuration Flash
x1 MicroSD (Processor side)
x1USB/UART ports ( Processor sides)
Programmable Clocks (with default frequencies but programmable through I2C bus)
ARM Debug Header
FPGA JTAG Header
External Synchronous Clock port
6.6" x 4.25"
Supports both PCI Express and Standalone operations
   - 12V/8A Power adapter for standalone operation

Kit Content:

Hardware:
-
HTG-ZRF-FMC Xilinx Zynq UltraScale+ RFSoC platform

Reference Designs/Demos:

- DDR4 Memory Controller


Documents:

- User Manual
- Schematics (in searchable .pdf format)

Ordering & Availability Information


HTG-ZRF-FMC-28

HTG-ZRF-FMC-48



12" SSMC To SMA Cable
24" SSMC To SMA Cable

1 Meter SSMC To SMA Cable
