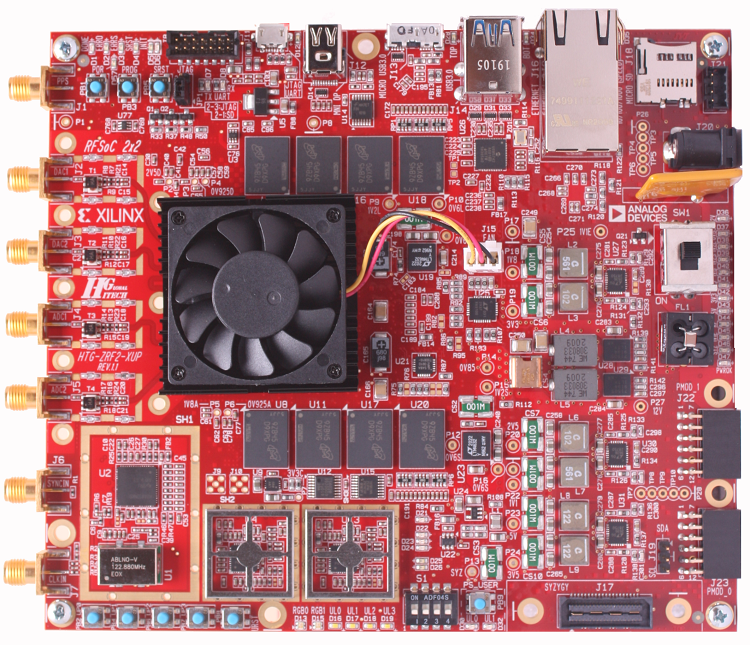

Xilinx RFSoC 2x2
Kit
Populated with one Xilinx ZYNQ UltraScale+ RFSoC ZU28DR FPGA device,
the RFSoC_2x2 provides access to large FPGA gate densities, two
ADC/DAC ports, DDR4 memory, Gigabit Ethernet, USB , display port, PMOD
and SYZYGY for variety of different programmable applications.
The RFSoC_2x2 is supported by two 12-bit ADC (4GSPS) and two14-bit
DAC (6.4GSPS) ports. The ADC and DAC ports are supported through
high-performance front panel micro Rf connectors. This board supports
Multi-Tile Synchronization of the ADC/DAC channels.
|

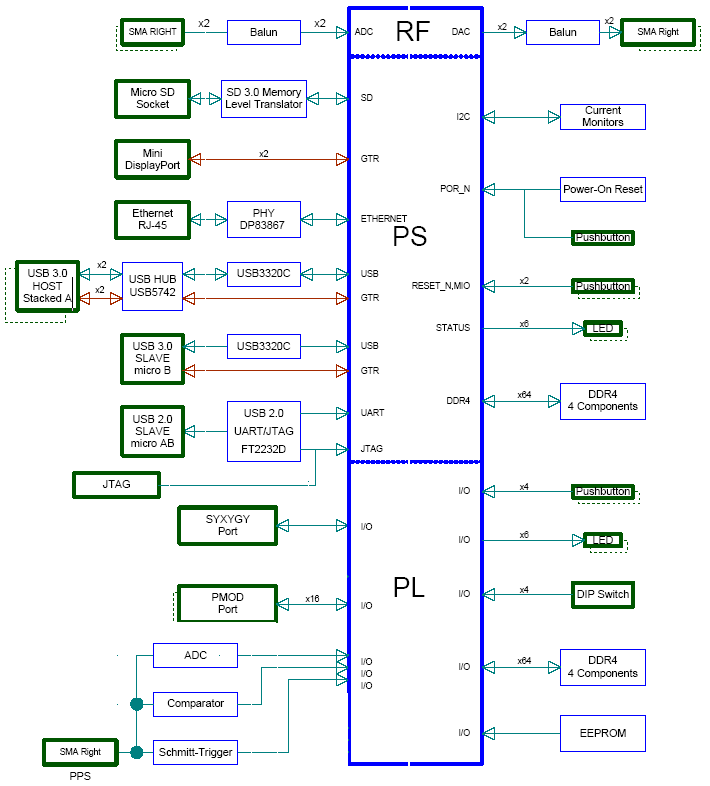

Features:
►
Xilinx Zynq UltraScale+ RFSoC ZU28DR (-2 speed grade)
► x2 ADC (12-bit , 4.0GSPS) ports (SMA connectors)
► x2 DAC (14-bit, 6.4GSPS) ports (SMA connectors)
► Support for Multi-Tile Synchronization of ADC/DAC channels
► Programmable ADC/DAC Clock Generator
► Independent DDR4 memory for the FPGA and Processors (4GB components)
► x1 10/100/1000 Ethernet (RJ45) port (Processor Side)
► x1 MicroSD (Processor Side)
► x2 PMOD Ports (Programmable Logic Side)
► x1 SYZYGY Port (Programmable Logic
Side)
► x1 Display Port (Processor Side)
► x2 (stacked) USB 3.0 Host (Processor Side)
► x1 USB 3.0 Slave (Processor Side)
► x1 USB 2.0 Slave (Processor Side)
► Programmable Clocks
► x1 1PPS port (Programmable Logic Side)
► Current Monitors
► Pushbuttons and LEDs
► FPGA JTAG Header
► External Synchronous Clock port
|
Ordering information:
Part Number: HTG-ZRF2-XUP
Price: Please contact Xilinx University Program
Note: The RFSOC2x2 is
available only for academic use. Please contact Xilinx
University program for approval and purchasing instructions.
|
Other RFSoC
Platforms:
|
 |
HTG-ZRF16
Xilinx
ZYNQ™
UltraScale+ 16ADC/16DAC Platform
16ADC (12-bit @2GSPS)/16DAC (16-bit@6.4GSPS
or 14-bit @10.0 GSPS) ports , two QSFP28 (100G)
optical ports, one DDR4 SODIMM (16GB) for PL /
2-4 GB Components for the PS , 10/100/1000 Ethernet, SATA, Display port, USB3.0 and FMC+
port ( with 116 single-ended I/Os and 8 GTY (32.75Gbps) Serial
Transceivers )
More info..
Supported FPGA Devices:
XCZU29DR-2FFVF1760E
XCZU49DR-2FFVF1760E
|
|
|
 |
HTG-ZRF8
Xilinx Zynq® UltraScale+™ RFSoC
PCI Express Development Platform
8-lane Gen4 PCI Express platform with
eight ADC/DAC ports, one FMC+ expansion connector, USB/UART port,
Ethernet, Display Port, MicroSD, SATA, USB3, DDR4 SODIMM & components
More info..
Supported FPGA Devices:
XCZU28DR-2FFVG1517
XCZU48DR-2FFVG1517
|
|
 |
HTG-ZRF-HH
Xilinx
ZYNQ™
UltraScale+ Half-Size PCI Express Platform
Low-Profile x8 Gen4/3 PCI Express platform with expansion port
providing access to 8 ADC/DAC channels, 16GB DDR4 (8GB for the
PS & 8GB for the PL), one I/O expansion port with GTY
and LVDS I/Os, USB3, Ethernet, SATA, Display port. Supported by
different add on cards providing access to different
configurations of ADC, DAC and optical interfaces.
More info..
Supported FPGA Devices:
XCZU28DR-2FFVG1517
XCZU48DR-2FFVG1517 |
 |
HTG-ZRF-HM
Xilinx Zynq® UltraScale+™ RFSoC
PCI Express Development Platform /Extended
Memory
8-lane Gen4 PCI Express platform with
eight ADC/DAC ports, one FMC+ expansion connector, USB/UART port,
Ethernet, Display Port, MicroSD, SATA, USB3, x2 DDR4 SODIMMs
(Programmable Logic and Processor sides) & x4 components
(Processor)
More info..
Supported FPGA Devices:
XCZU28DR-2FFVG1517
XCZU48DR-2FFVG1517
|
|
 |
HTG-ZRF-FMC
Xilinx
ZYNQ™
UltraScale+ RFSoC FMC+ Module
Vita57.4 compliant FMC daughter card adding FPGA gates and
ADC/DAC ports to Vita57.4 compliant carrier boards.
More info..
Supported FPGA Devices:
XCZU28DR-2FFVG1517
XCZU48DR-2FFVG1517 |
|
|
|
