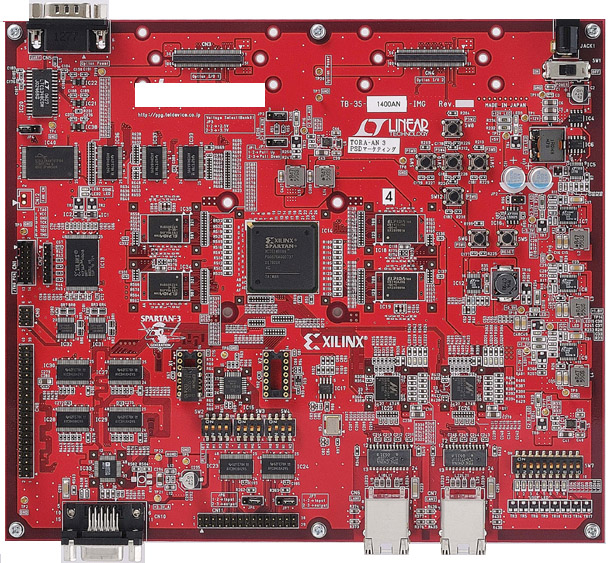

Xilinx Spartan 3A DSP and 3-AN Image Processing Development Platform




Xilinx FPGA
ISE Design Tool




Xilinx PlanAhed

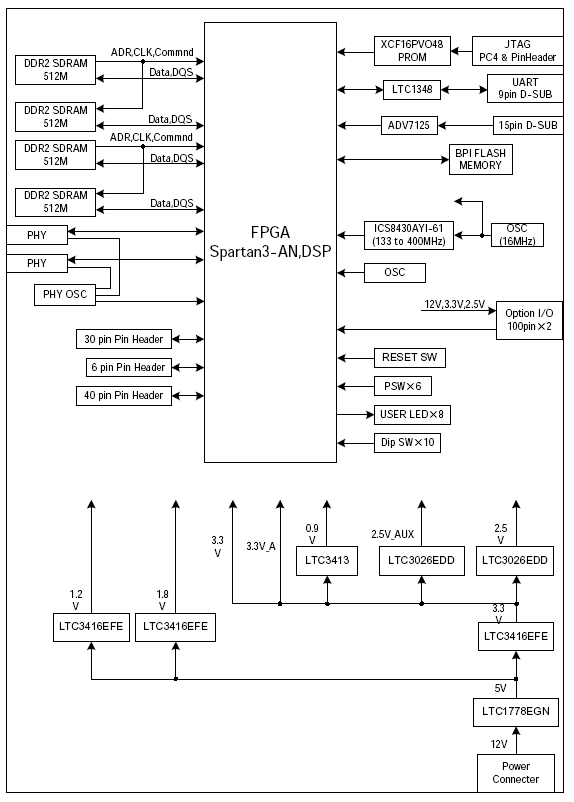

Features:

Xilinx XC3SD1400AN or 3400DSP-4FG676
ELPIDA Memory EDE5116AJBG (32Mbit X 16) x 4 DDR2 SDRAM Memory Chip 512Mbit x 4, enabling high speed memory access
-Address:Share(1:2) / Data bus:32bit
1G Base Ethernet MAC & PHY
40-Pin Header, 6-Pin Header and D-SUB Connector
Expansion Ports - Optional I/O connectors (I/O:42 x 2) and general purpose I/O pin headers (I/O:20)
Dedicated Option Boards.
Pushbutton Switches, LEDs and DIP Switches

Kit Content:
  •  Development Board

  • AC Adapter

  • CD ROM with sample circuits, sample application program,  user manual, etc>

Ordering Information:

Part Number:

TB-3S-1400AN-IMG :
$1,600 [Buy Online]
TB-3S-3400DSP-IMG:
$2,100 [Buy Online]


- Option Modules:

  • TB-SUB-CL (Camera Link) - $398

  • TB-V2P-OPT (Virtex-II Pro Optical Module): $1,300

  • TB-SUB-USB (USB Module): $598

  • TB-SUB-PH (Pin Header Module) : $120


DVI Transmit (Tx) & Receive (Rx) Modules

Part #:  TB-SUB-DVI
Price: $598




Pin Header Module

Part Number: TB-SUB-PH
Price: $145


CameraLink Module

Part Number: TB-SUB-CL
Price: $398


USB 2.0 Module

Part Number: TB-SUB-USB
Price: $598
