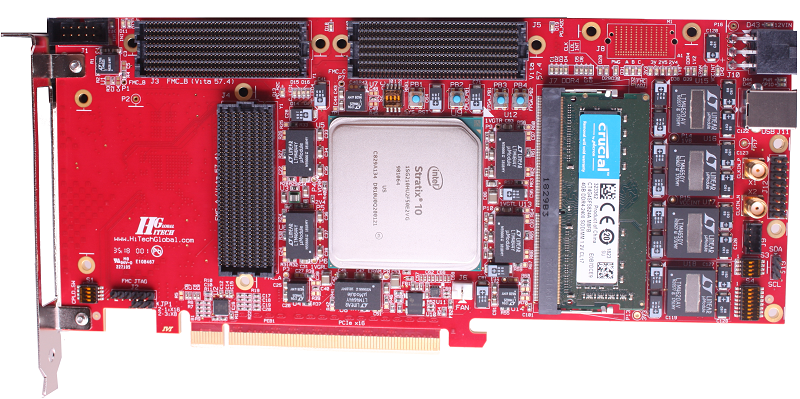

HTG-STX10: Intel/Altera Stratix 10 Development Platform




Populated with one Intel/Altera Stratix 10 GX/SX 1650, 2100, 2500,  or 2800 FPGA, the HTG-STX10  provides access to wide range of  FPGA gate densities, I/Os  and memory for variety of different programmable applications.

The HTG-STX10 architecture allows easy and versatile functional expansion through three Vita 57.4  compliant High-Pin-Count  FPGA Mezzanine Card (FMC+) connectors. The FMC+ ports provide access to total of 240 LVDS FPGA I/Os and 72 GXT serial transceivers. Wide variety of Vita57.1 FMC  and Vita57.4 FMC+  daughter cards are available to mate with the HTG-STX10 platform for different applications.

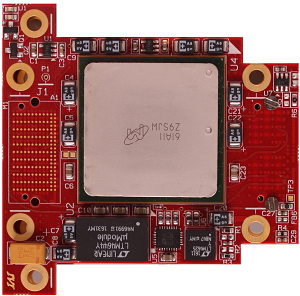

The HTG-STX10 is supported by one 72-bit ECC DDR4 SODIMM socket providing access to up to 16 GB of SDRAM memory. The board is also supported by the HiTech Global 4GB Hybrid Memory Cube (HMC) FMC+ module for high-performance serial memory.

The HTG-STX10 can be used in PCI Express and Standalone mode and powered through a 6-pin Molex PCIe connector.

Supported Devices:

PRODUCT LINE  GX 1650     SX 1650  GX 2100     SX 2100  GX 2500    SX 2500  GX 2800    SX 2800
Logice Elements (LES) 1,092,000 1,624,000 2,005,000 2,422,000
Adaptive logic modules (ALMs)  550,540 679,680 821,150 933,120
ALM registers  2,202,160 2,718,720 3,284,600 3,732,480
M20K memory blocks  5,851 6,501 9,963 11,721
M20K memory size (Mb)  114 127 195 229
MLAB memory size (Mb)  8 11 13 15
Variable-precision digital signal processing (DSP) blocks  3,145 3,744 5,011 5,760
18 x 19 multipliers  6,290 7,488 10,022 11,520
Peak fixed-point performance (TMACS) 12.6 15 20 23
Peak floating-point performance (TFLOPS) 5 6 8 9.2
Maximum user I/O pins  704 704 1160 1160
Maximum LVDS pairs 1.6 Gbps (RX or TX)  336 336 576 576
Total full duplex transceiver count  96 96 96 96
GXT full duplex transceiver count (up to 30 Gbps)  64 64 64 64
GX full duplex transceiver count (up to 17.4 Gbps)  32 32 32 32
PCI Express hard intellectual property (IP) blocks (Gen3 x16)  4 4 4 4

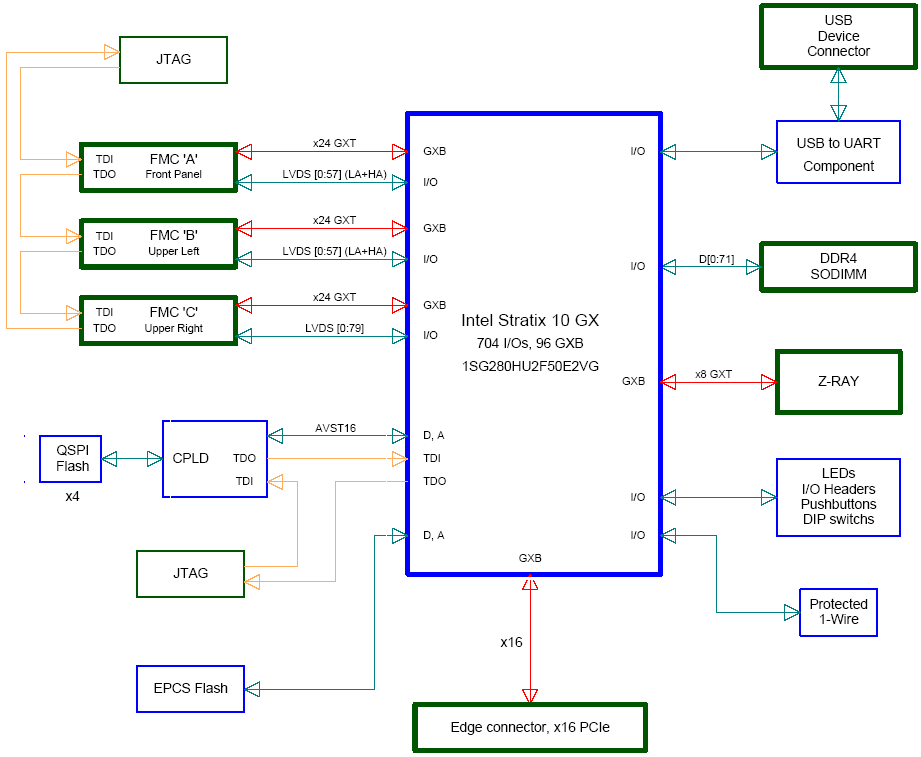

Main Features:

► x16 PCI Express Gen3
► x3 FMC+ (Vita57.4) ports supporting total of 240 LVDS I/Os and 72 serial transceivers
► x1 ZRAY expansion port supporting 8 serial transceivers
► x1 DDR4 SODIMM (up t0 16GB)
► x1 CPLD
► x4 QSPI Flash (2Gb)
► x1 Jtag port
► x1 USB/UART port
Programmable oscillators & clock generators
► Power Bus Manager
Size: 9.5" x 4.25"
Supports both PCI Express and Standalone operations
   - 12V/8A Power adapter for standalone operation

Kit Content:

- HTG-STX10 Platform

Reference Designs/Demos:
-PCI Express and DDR4 memory controller

Documents:

-User Manual
-Schematics (in searchable .pdf format)

Ordering Information:

HTG-STX10-2100   Price (contact us)
HTG-STX10-2800  Price  (contact us)
