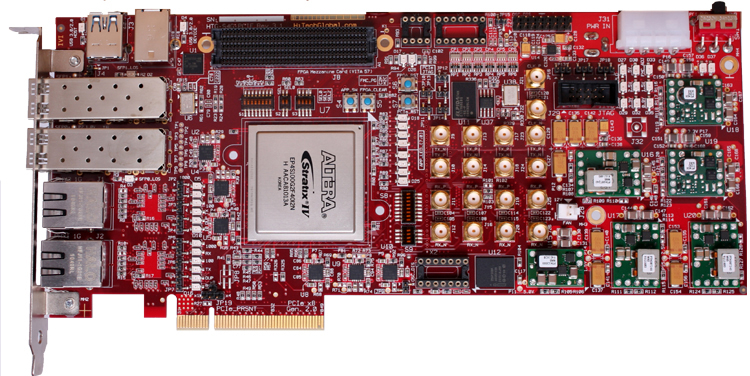

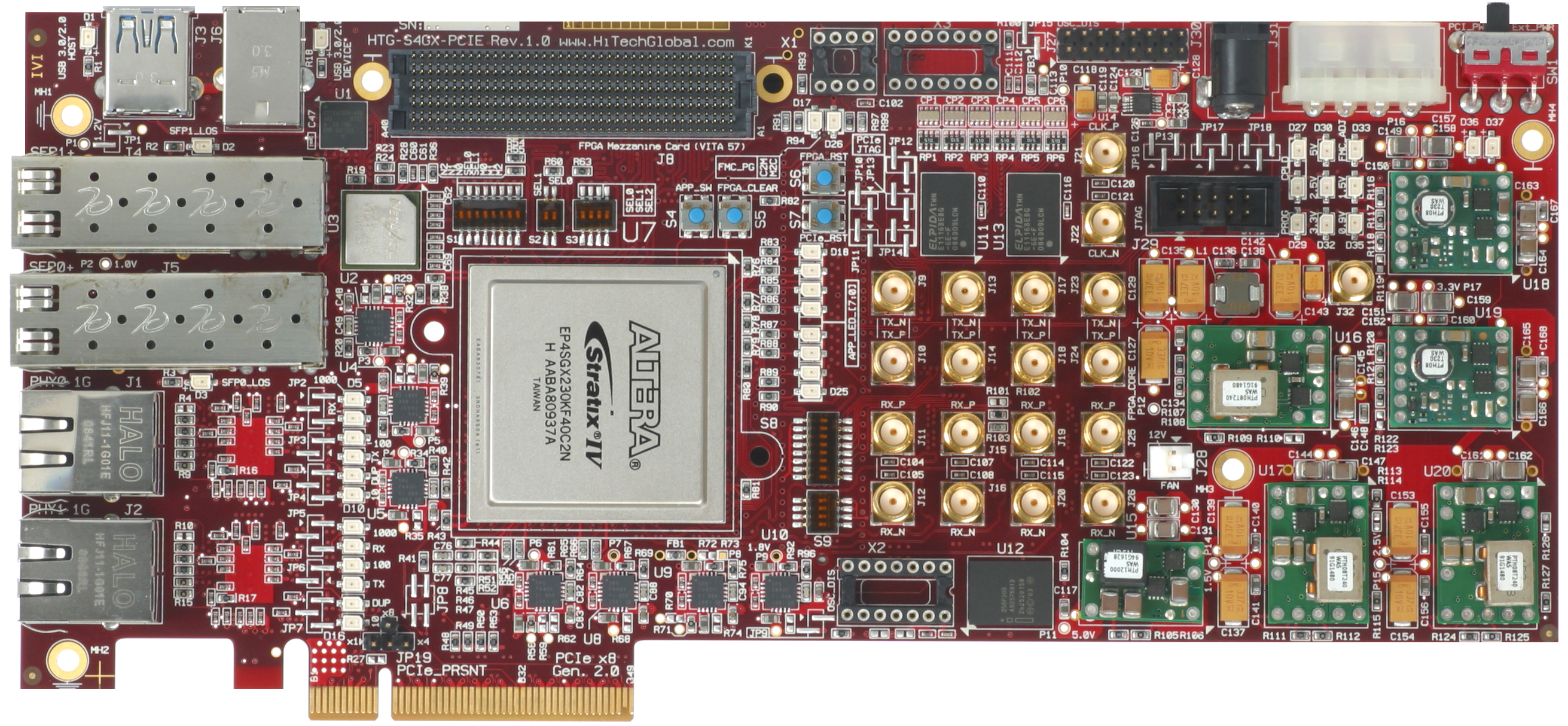

Altera Stratix IV GT/GX PCI Express Gen 2 /3 & Optical Development Platform/Networking Card






l

Powered by Altera Stratix IV GX/GT FPGA, this platform features x8 end-point PCI Express Gen 2 / 3 , USB 3.0 (Host & Device), SFP+ , Gigabit Ethernet,  DDR-3 (SO-DIMM), DDR-2 (component), data-rate-adjustable Serial Transceivers (with super clock),  IO expansion connector, SMAs (connected to 4 Serial Transceivers), and stand-alone operation.

The on-board Super Clock provides different reference clocks across eight Serial Transceivers on the high-speed connector. This enables development with any serial IO standard supported by the on-board Stratix IV GX/GT device.

This platform supports the following Stratix IV GX/GT devices in 1517 package:
 Feature    EPEP4S100G2    EEP4S100G55 EP4SGX230 EP4SGX360 EP4SGX530
 Package Pin Count    1517    1517    1517    1517    1517
 ALMs    91,200    212,480   91,200 141,440 212,480
 LEs    228,000    531,200   228,000 353,600 531,200
 Total Transceiver Channels    36    36   36 36 36
 10G Transceiver   Channels (600 Mbps - 11.3 Gbps with PMA + PCS)   24    24   0 0 0
 8G Transceiver Channels (600 Mbps - 8.5 Gbps with PMA + PCS)    0    0   24 24 24
 PMA-only CMU Channels (600 Mbps- 6.5 Gbps)    12    12   12 12 12
 PCI Express hard IP Blocks    2    2   2 2 2
 High-Speed LVDS SERDES (up to 1.6 Gbps)  46    46   88 88 88
 SP1-4.2 Links    2    2   4 4 4
 M9K Blocks (256 72 bits)    1,235    1,280   1,235 1,248 1,280
 M144K Blocks (2048 72 bits)    22    64   22 48 64
 Total Memory (MLAB + M9K + M144K) Kbits    17,133    27,376   17,133 22,564 27,376
 Embedded Multi18 18  1,024    1,024   1,288 1,040 1,024
 PLLs    8    12   8 8 8
 User I/Os   654    781   744 744 744
 Speed Grade (fastest to slowest   1, 2, 3    1, 2, 3   -2, -3, -4 -2, -3, -4 -2, -3, -4

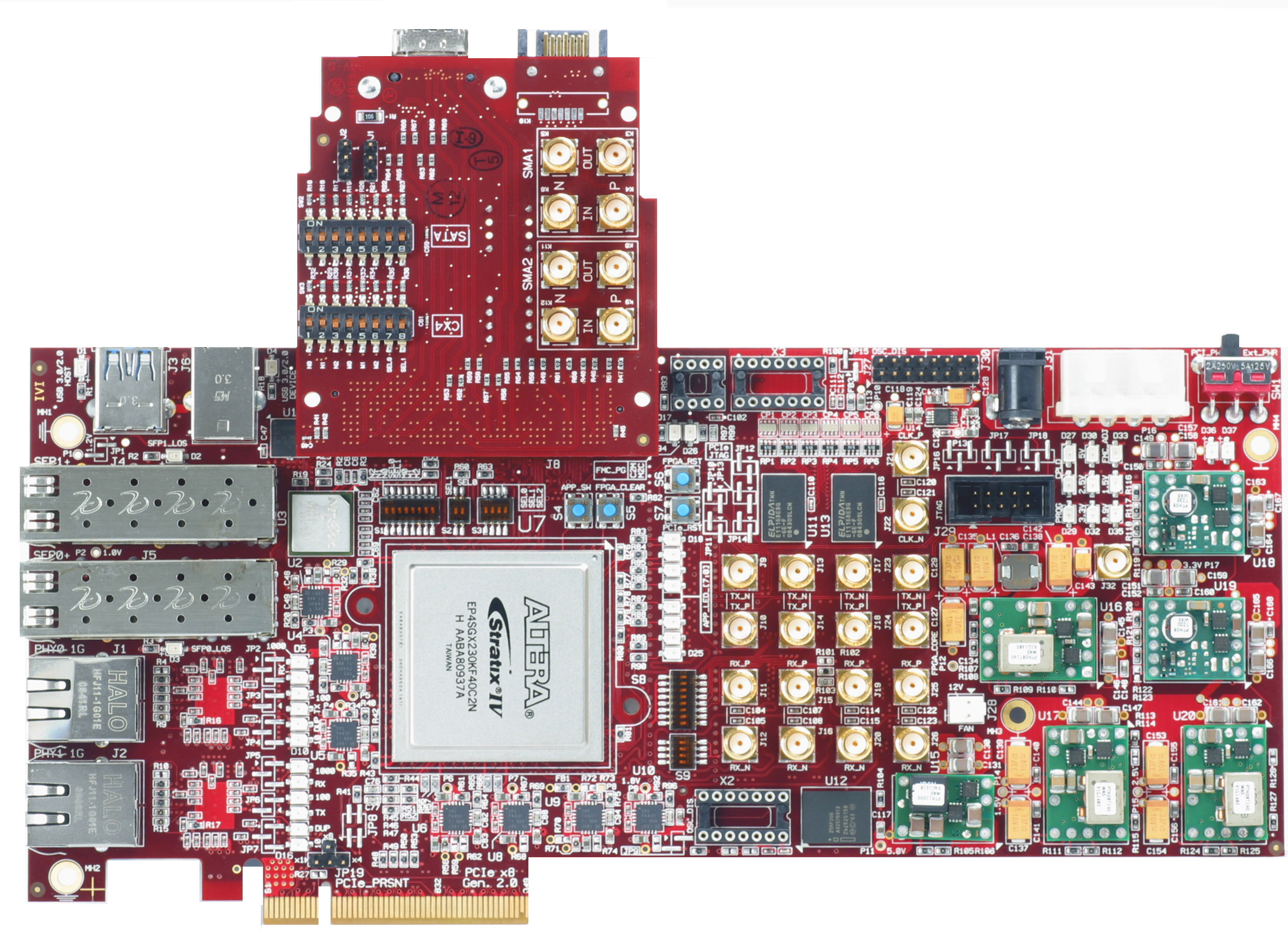

FPGA board with CX4/SATA Module
(Larger Image)

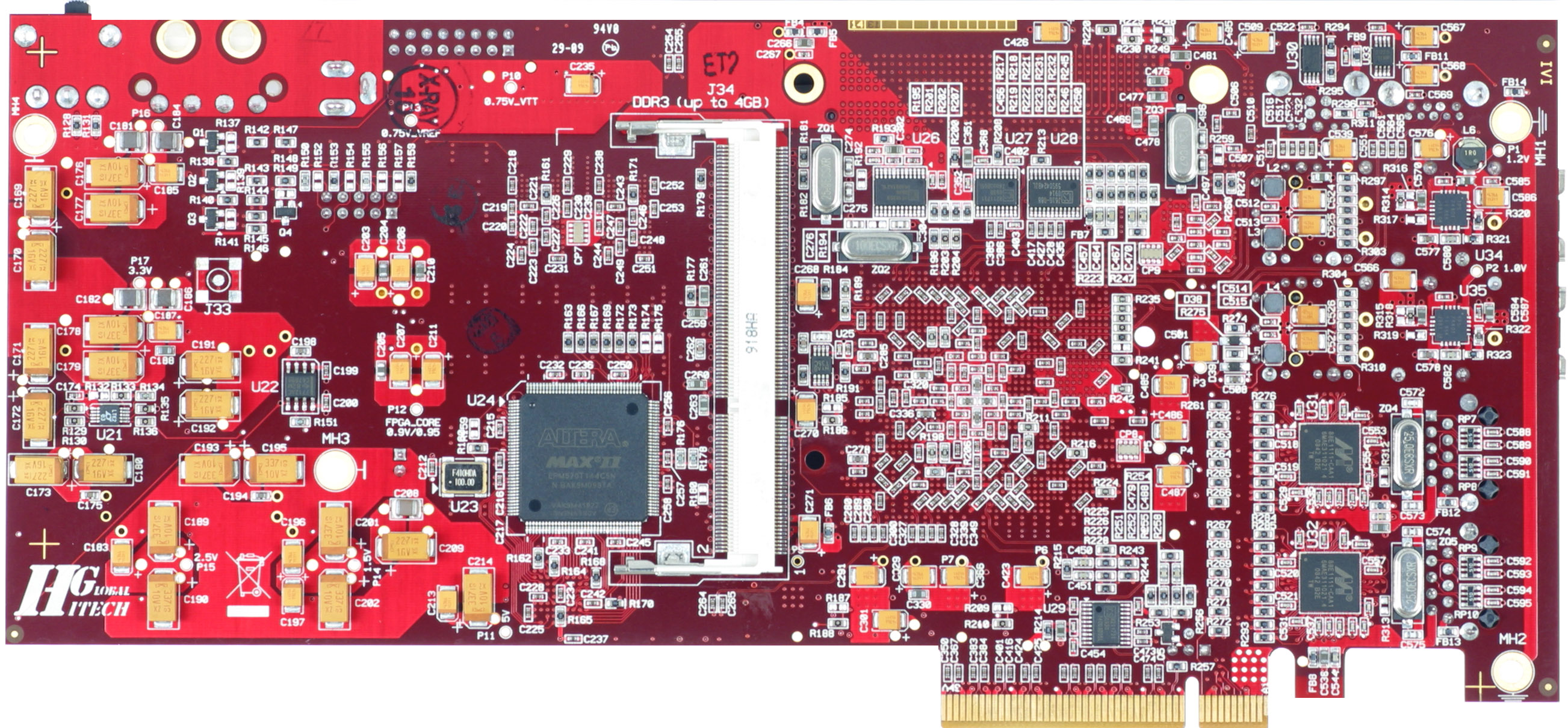

Back side of the board with DDR3 SODIMM

(Larger Image)

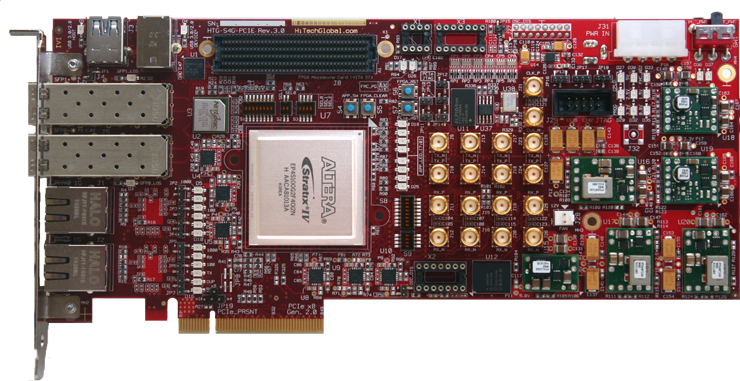

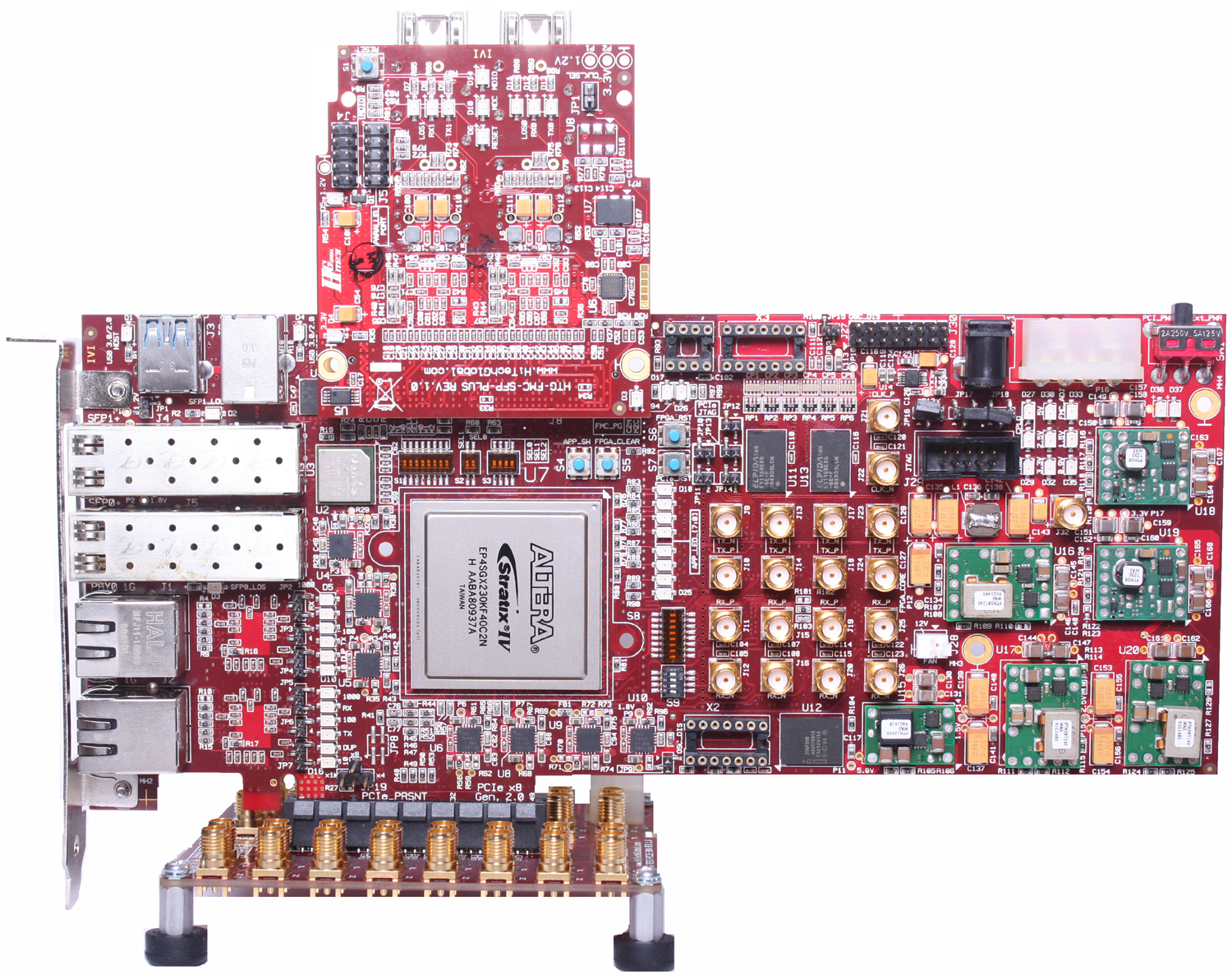

FPGA board with SFP+ Module
(Larger Image)

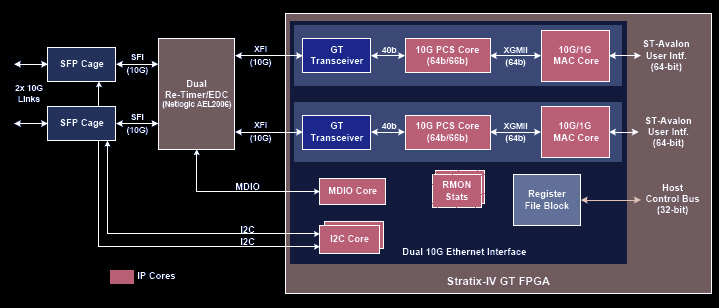

1G/10G Interface Block Diagram

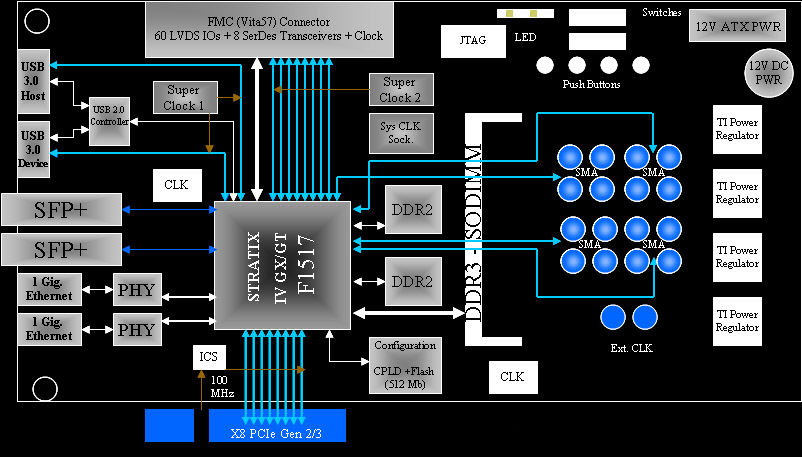

Features:

Altera Stratix IV GT EP4S100G2 (-2 speed grade), GX EP4SGX230, 360,
x8 PCI Express Gen 2/3 end-point
DDR3 SO-DIMM (up to 4 GB)
128 MB DDR2
x2 SFP+  (10Gbps) - Option with external PHY with CDR/EDC is also available
x2 Gigabit Ethernet
USB 3.0 / 2.0 Host (5.0 Gbps)
USB 3.0 / 2.0 Device (5.0 Gbps)
x16 SMA connectors (for 4 Serial Transceiver Ports) with external clock interface
High-speed Expansion Connector (FMC) with 60 LVDS signals and 8 data-rate-adjustable Serial Transceivers
CPLD & Flash for configuration
9.5"x 4.25"

Ordering information:

Part Numbers & Prices

- HTG-S4GT-PCIE-230:  (populated with EP4S100G2) Contact us
-
HTG-S4GX-PCIE-230: (populated with
EP4SGX230) Contact us
-
HTG-S4GX-PCIE-360: (populated with
EP4SGX360) Contact us

Kit Content:

- HTG-S4Gx-PCIE-xxx Board
- User Manual
- Schematic
- DDR3, DDR2, and PCI Express Reference Designs
- PCI Express Linux/Windows Drivers (30-day evaluation)

Accessories


FMC daughter card with  one QSFP+ and two SFP+ connectors with default clocks for CPRI/OBSAI (other clocks can also be supported)
Part Number:
HTG-FMC-SFP-OC
Price:$795


FMC daughter card with two SFP+ connectors, two 10Gbps physical layer transceivers which provide full PCS, PMA, and XGXS sub-layer functionality


Part Number:
HTG-FMC-SFP-PLUS
Price:$895


FMC daughter card with two CX4/Infiniband connectors providing access to two 10Gig ports




Part Number:
 HTG-FMC-2CX4
Price: $595


FMC daughter card with one CX4, two SATA, and two SMA ports




Part Number:
HTG-FMC-CX4-SATA-SMA
Price: $545


FMC daughter card with x8 PCI Express Root interface



Part Number:
 HTG-FMC-PCIE-RC
Price: $695

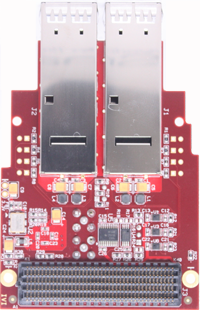

FMC daughter card with  Dual QSFP+  ports supported by programmable clock with set up value of 156.25MHz
Part Number:
HTG-FMC-X2QSFP+
Price:$695

FMC daughter card with four SFP/SFP+ and four SATAI/II/III connectors.

Part Number:

HTG-FMC-4SFP-4STA
Price:$695


FMC daughter card with 32 SMA connectors for 8 serial transceiver ports, two SMA connectors for external clock, and on-board super clocks

Part Number:
HTG-FMC-X8SMA
Price:$695


FMC daughter card with 8 SMA ports and pin headers providing access to 33 LVDS/66 Single-ended IOs
Part Number:
HTG-FMC-SMA-LVDS
Price: $595

FMC to FMC Cable

Part #: FMC-TO-FMC-9 (9" length)
 FMC-TO-FMC-5
(5" length)

PCI Express Test Module & Serial IO Expander
Part Number: HTG-PCIE-TEST
Price: $695

FMC daughter card with  four SFP+ connectors supported by programmable clock with start up value of 156.25MHz
Part Number:
HTG-FMC-X4SFP+
Price:$695
