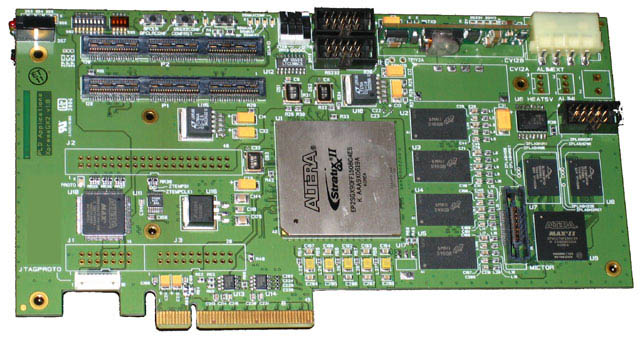

Altera Stratix II GX PCI Express Gen 1 & 2 Development Board





Powered by Stratix II GX  EP2SGX90/EPS2SGX130 and supported by 2 Gb of DDR-2  SDRAM and peripherals, this is an ideal Altera based 8-Lane End-Point PCI Express platform. 8 Stratix-II GX SERDES Transceivers are used as PCI Express PHY and connected to the soft core PCI Express Controller  (2.0 compliant) distributed through HiTech Global)

2 on-board high-speed connectors can host different custom daughter cards. The prototyping matrix can also be sued with Santa Cruz daughter cards.





Altera Stratix-II GX Product Table
 Device    Logic Elements   Total Memory
Bits 		  Transceiver Channels   18-Bit x 18-Bit
Multipliers 		  PLLs   Package
 EP2SGX30C   33,880   1,369,728   4   64   4   780-pin FBGA
 EP2SGX30D   33,880   1,369,728   8   64   4   780-pin FBGA
 EP2SGX60C   60,440   2,544,192   4   144   8   780-pin FBGA
 EP2SGX60D   60,440   2,544,192   8   144   8   780-pin FBGA
 EP2SGX60E   60,440   2,544,192   12   144   8   1,152-pin FBGA
 EP2SGX90E   90,960   4,520,448   12   192   8   1,152-pin FBGA
 EP2SGX90F   90,960   4,520,448   16   192   8   1,508-pin FBGA
 EP2SGX130G   132,540   6,747,840   20   252   8   1,508-pin FBGA

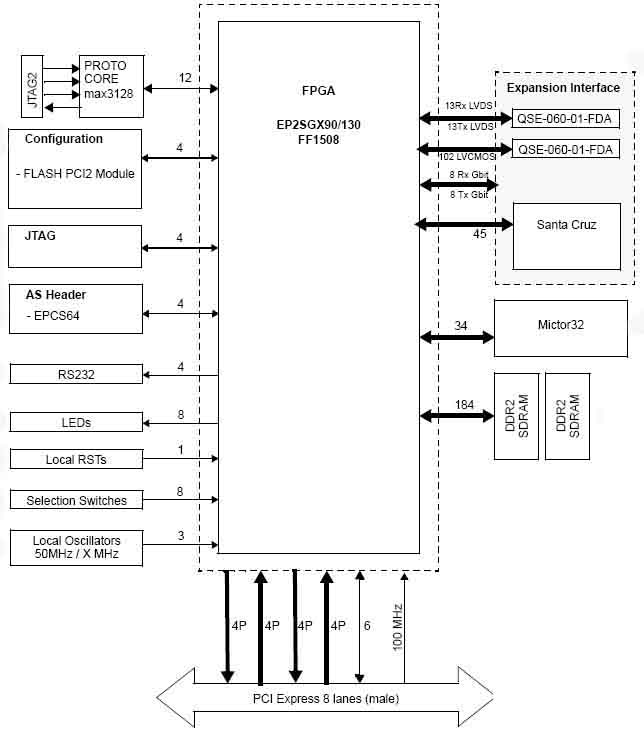

Features:

• PCI Express add-on board
• x8 Endpoint IP controller for PCIe
• Altera Stratix II GX based (EP2SGX90/130)
• PCI Express 1.1 (or 1.0a) compliant
• 2 Gb of DDR-2
• Programmable FPGA via a JTAG connector or the EPCS16 (AS configuration)

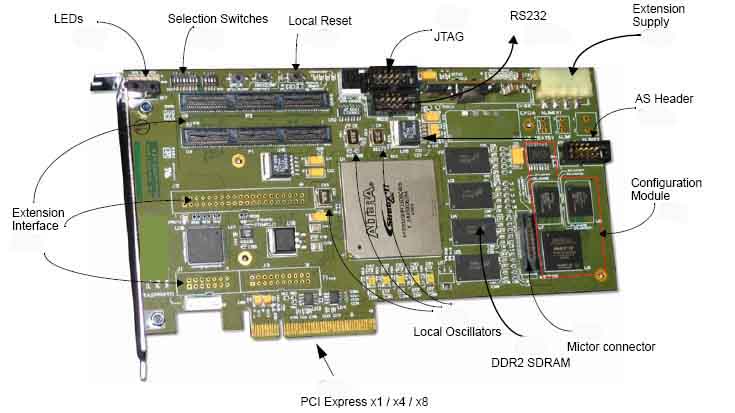

• External connections
  o x8 PCI Express male connector (x1 with expander)
  o 2 high-speed (Samtec) connectors for interfacing with custom daughter  cards
  o Prototyping matrix that can interface with Santa Cruz daughter cards
  (100 MHz signals)
o MICTOR connector: 34 user-dedicated I/Os for probing or for daughter cards
o LEDs and switches

Deliverables:

 • SGXII Prototyping Board
• Configurable IP Core for PCIe
• PCI Express Testbench
• Reference Design
• Software Drivers (eval)
• Complete technical documentation
Part Number, Price, & Availability:


HTG-SIIGX130    $4,990   (with EP2SGX130FF1508C4NES)

How To Buy

PCI Express Drivers
Optional Add-on Modules



The optional SFP-HSI Module provides access to  three (Small Form Factor Pluggable) SFP. It can be plugged into high speed Samtec connectors


Part Number: SFP-HSI
Price: $390

The Switch-to-High Speed Interface provides switch capabilities to the board.




Part Number: SW-HSI
Price: $390

The High Speed Interface bread board offers access to 100 signals from the SAMTEC connector through the HE10 connector.  600 holes (254mm step) are available for prototyping purposes.

Part Number: BB-HSI
Price: $390















This add-on modules provides  FULL  Cameralink functionality (80-bit up to 75MHz).

Part Number: KLINK-FULL
Price: $500

This add-on module provides BASE cameralink functionality


Part Number:  KLINK-BASE
Price: $500
