Altera Stratix® IV GX/GT 100GIG Development Platform
|
|
|
Altera Stratix® IV GX/GT 100GIG Development Platform |
|
|
|
|
l

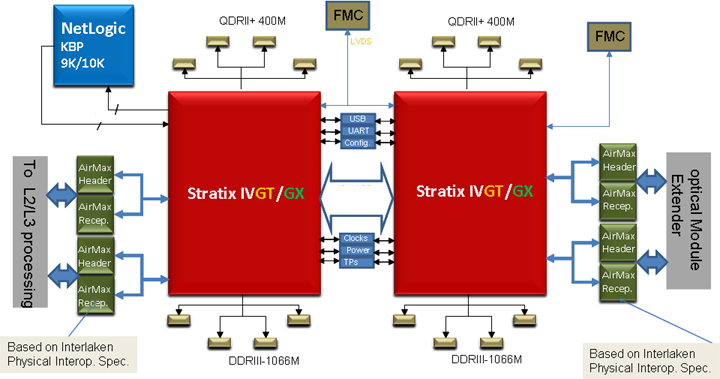

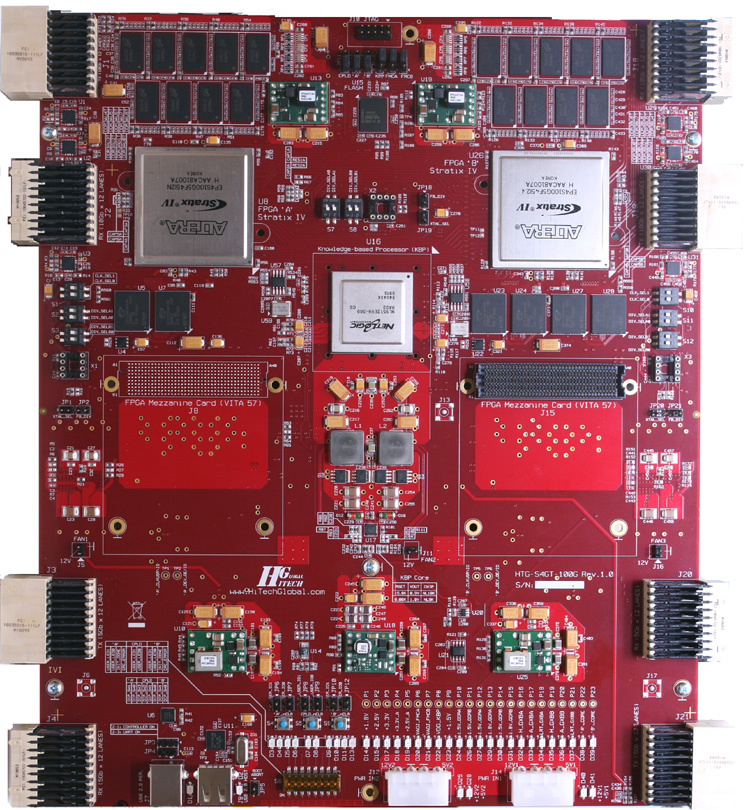

The Stratix-VI GT/GX HighBridge board is based on the latest FPGA technology from Altera. It integrates the most fundamental electrical and optical interfaces for building 200G subsystems. It implements CAUI and Interlaken high speed serial interfaces and industry leading high speed DDR III and QDRI I+ interface as well as high speed parallel interconnect for NetLogic KBPs. The modular design enables expansion to support legacy and emerging optical modules.
|
|
|
|||
|
Features:
►Altera
Dual FPGA supporting EP4S100G5 or EP4SGX530 offerings for ultra
high bandwidth applications.
►Thirty eight DDR III memory components (MT41J64M16LA-15E) ► Eight QDR II+ SRAM memory components (CY7C2563KV18) ► Native support for Netlogic KBPs including KBP10000, KBP11000 series • SSIM interface support at 400MHz • Serial interface with asymmetric Interlaken support in KBP11000 ► Interlaken controller and interface for network processing or packet processing • Transmit and Receive lanes with robust CEI electrical performance (24 with GX and 12 with GT) • Up to 100G of Interlaken bandwidth • FCI AirMax Connector for interoperability with existing linecards ► Legacy module interfaces including SFP+, XFP and emerging interfaces such as CFP and CXP • Interface to external module expansion card using AirMax or comparable connectors ► USB 2.0 Host and Device ► UART ► High-speed connectors for IO expansion |
Ordering information ►Part Numbers:
Kit Content: ►

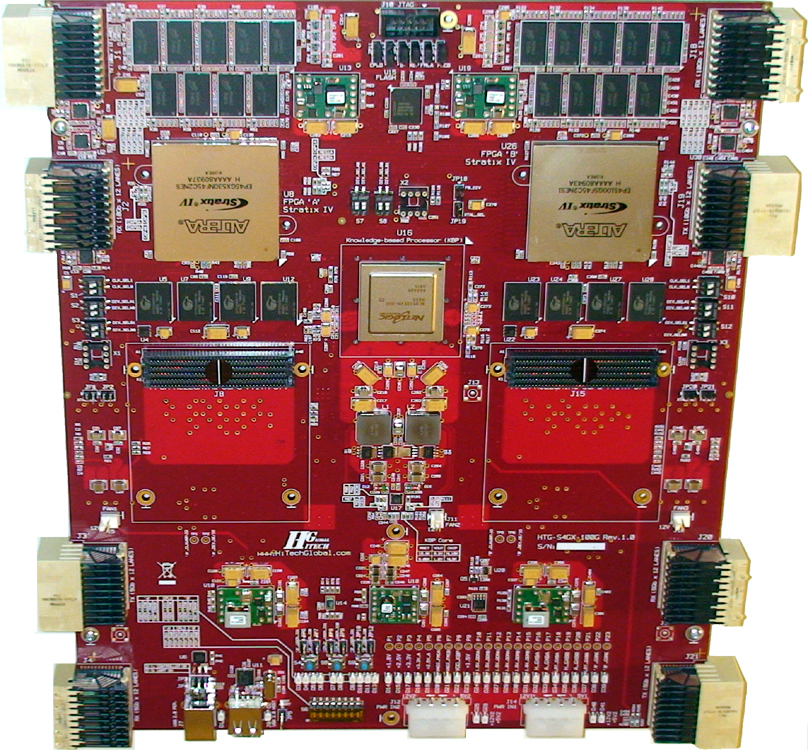

HTG-S4Gx-100GIG platform |
||
|
