HTG-S500 : Altera Stratix V Dual 40Gig Half-Size PCI Express Networking Card
(Financial Data Processing Platform)

Powered by Altera Stratix V FPGA, the HTG-S500  half-size PCI Express platform is ideal for applications requiring high bandwidth and low latency data processing between host servers and network interfaces used in data centers (i.e financial data processing).

Supported by 40Gig Ethernet, PCI Express Gen3, DDR3, and QDR-II reference designs along with PCI Express Linux/Windows drivers, the HTG-S500 minimizes engineering efforts for complex design integration and verification.

Availability of the HTG-S500 platform with different density of Stratix V FPGAs  with the same device footprint allows easy design upgrade for different end applications.

Features:

Altera Stratix V 5SGXA5, 5SGXA7, 5SGXA9, or 5SGXAB
x8 PCI Express Gen 3 edge connector
   - Supported by IDT jitter attenuator chip providing clean PCI Express clock

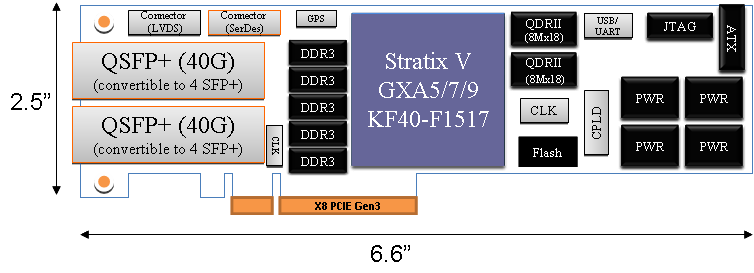

x2 QSFP+ IEEE802.3ba compliant Ethernet ports (40Gbps each)- or x8 SFP+ ports using the  QSFP+ to SFP+ conversion cables
x10 (256M words x 16 bit) DDR3 components (upgradeable to 8G)
x2 144Mb(8M x18) QDR-II SRAMs
1PPS GPS Synchronization
Connectors for I/O expansion, board to board communication, or multiple boards stack up
    -  16 LVDS ports  (optional through two connectors installed on the front and back side of the board)
    -  12 Serial Transceiver ports  (optional through two connectors installed on the front and back side of the board)
Serial EPCS Flash
CPLD + P30 Flash configuration
USB/UART
IP protection circuitry
PCI Express or Stand-Alone mode operation
6.6" x 2.5"
Ordering information

Part Numbers:
-
HTG-S5-PCIE-HL-A5 - Price: $5,995 (USD) [Buy Online]
-
HTG-S5-PCIE-HL-A7 - Price: [Contact us]
-HTG-S5-PCIE-HL-A9 - Price: [Contact us]
-HTG-S5-PCIE-HL-AB - Price: [Contact us]

Kit Content:
- HTG-S500 Board
- User Manual, Schematics (in searchable pdf format) , Software Drivers (eval.), 40Gig Ethernet reference demo, PCI Express Gen 3 design , DDR3 and QDRII memory controllers



Accessories:

Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4x SFP+ Active Optical Cable break-out solution.  This cable is intended for 40G to 4x 10G applications.

The AFBR-7IERxxZ  is a high performance cable for short-range multi-lane data communication and interconnect applications.  It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4x10G InfiniBand QDR applications and are backward compatible to the 4x5G IB DDR and 4x2.5G IB single IB SDR applications.

AFBR-7IER01Z (1 meter)  [Buy Online]   AFBR-7IER03Z (3 meters)  [Buy Online]


 300m QSFP+ Optical Transceiver Compliant to the 40GbE IEEE 802.3ba-2010 specifications (40GBASE-SR4 and XLPPI) and the IEEE 802.3ae 10GBASE-SR optical specification )

AFBR-79E3PZ  [Buy Online]
