HTG-940: Virtex UltraScale+ ™  QUAD FMC+ Development Platform

Populated with one Xilinx Virtex   UltraScale+  VU9P,  VU13P, or UltraScale VU190 FPGA, the HTG-940 provides access to wide range of  FPGA gate densities, I/Os  and memory for variety of different programmable applications.

The HTG-940 architecture allows easy and versatile functional expansion through four Vita 57.4  compliant High-Pin-Count  FPGA Mezzanine Card (FMC+) connectors. The FMC+ ports provide access to total of 370 single-ended FPGA I/Os and 72 GTY /GTH (30.5/16.0Gbps) serial transceivers. The FMC+ ports can host standard Vita57.4 or Vita57.1 daughter cards.

The HTG-940 is supported by one 72-bit ECC DDR4 SODIMM socket providing access to up to 32 GB of SDRAM memory.

The HTG-940 provides access to  QSFP28 (100G),  100/1000 Ethernet  and USB communication ports.

PCIE connectivity is available by using HTG-FMC-LVDS and HTG-X8-PCIE-EP modules.



Device Name VU190 VU9P VU13P
System Logic Cells (K) 2,350 2,586 3,780
CLB Flip-Flops (K) 2,148 2,364 3,456
CLB LUTs (K) 1.074 1,182 1,728
Max. Distributed RAM (Mb) 14.49 36.1 48.3
Total Block RAM (Mb) 132.9 75.9 94.5
UltraRAM (Mb) - 270 360
Clock Management Tiles (CMTs) 30 30 16
DSP Slices 1,880 6,840 12,288
PCIe® Gen3 x16 / Gen4 x8 6 (G3) 6 4
150G Interlaken 9 9 8
100G Ethernet w/ RS-FEC 9 (100G) 9 12

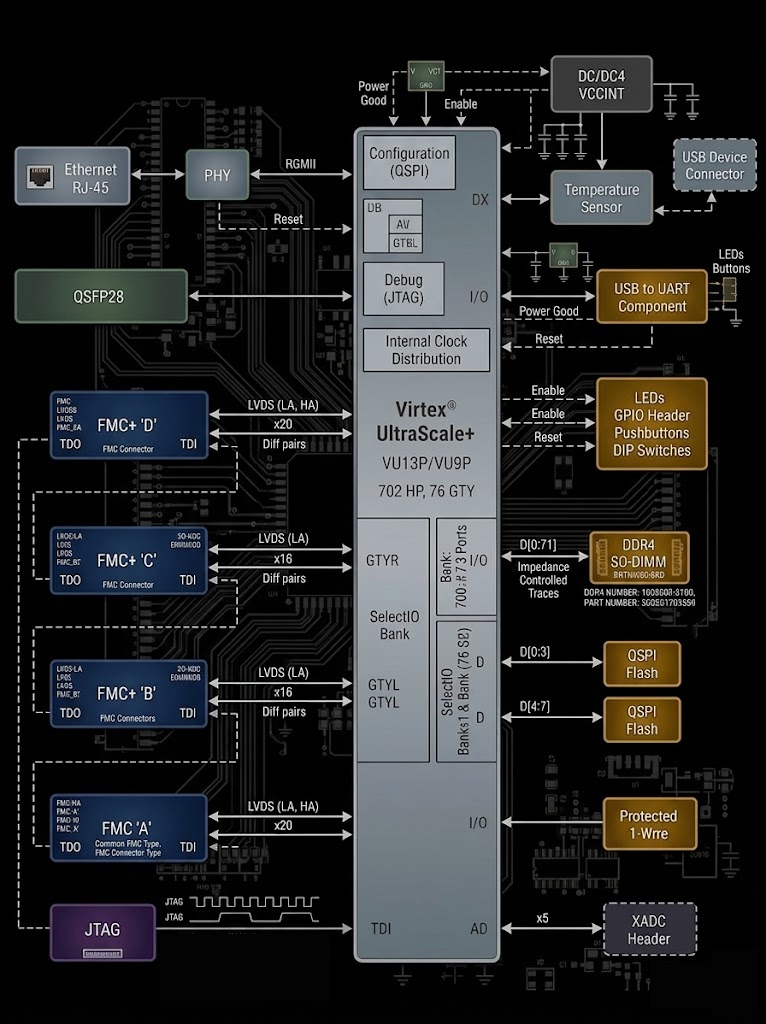

Features:

x1 Xilinx Virtex UltraScale+  VU9P, VU13P, or UltraScale VU190 FPGA in B2104 package
x1 72-bit ECC DDR4 SODIMM socket  supporting memory density up to 32GB- (shipped with 4GB)
x4 FMC+ (Vita 57.4)  ports
     - FMC “A” : High Pin Count (HSPC) populated with 20  serial transceivers (GTY for
       VU9P/VU139 and GTH for VU190) and 116 singled-ended I/Os.
      - FMC “B” : High Pin Count (HSPC) populated with up to 16 serial transceivers (GTY for
        VU9P/VU13P/VU190) and 66 single-ended I/Os.
     -FMC “C”  High Pin Count (HSPC) populated with up to 16 serial transceivers (GTY for
      VU9P/VU13P/VU190) and 66 single-ended I/Os.
     -FMC “D” :High Pin Count (HSPC) populated with  20 serial transceivers (GTY for
      VU9P/VU139 and GTH for VU190)and 116 single-ended I/Os.
x1 QSFP28 (100G) Port
x1  Ethernet 10/100/1000) Port
XDAC headers
x1 USB to UART Port
x2 QSPI Configuration Flash
x1 Jtag port for configuration and debugging
x4 Pin Headers with  49 GPIOs (with one header supporting four 3.3V I/Os)
Ultra low-jitter Programmable oscillators & clock generators
x1 IP protection circuit
Size: 8.7" x 5.9" (220mm x 150mm)


VU190 VU9P/VU13P
Bank # I/O Type  Bank # I/O Type  Port Assignment
125 GTY 120 GTY FMC"C" : DP[0:3]
126 GTY 121 GTY FMC"C" : DP[4:7]
127 GTY 122 GTY FMC"C" : DP[8:11]
128 GTY 123 GTY FMC"C" : DP[12:15]
129 GTY 124 GTY FMC"B" : DP[0:3]
130 GTY 125 GTY FMC"B" : DP[4:7]
131 GTY 126 GTY FMC"B" : DP[8:11]
132 GTY 127 GTY FMC"B" : DP[12:15]
133 GTY 128 GTY QSFP28
224 GTH 224 GTY FMC"D" : DP[0:3]
225 GTH 225 GTY FMC"D" : DP[4:7]
226 GTH 226 GTY FMC"D" : DP[8:11]
227 GTH 227 GTY FMC"D" : DP[12:15]
228 GTH 228 GTY FMC"D" : DP[16:19]
229 GTH 229 GTY FMC"A" : DP[16:19]
230 GTH 230 GTY FMC"A" : DP[12:15]
231 GTH 231 GTY FMC"A" : DP[8:11]
232 GTH 232 GTY FMC"A" : DP[4:7]
233 GTH 233 GTY FMC"A" : DP[0:3]

Serial Transceivers (GTY/GTH) Assignment

Kit Content:

Hardware:
-HTG-940 platform (with installed heatsink/fan)
- 12V/8A wall power supply

Reference Designs/Demos:
-DDR4 memory controller

Documents:

-User Manual
-Schematics (in searchable .pdf format)

Ordering information

Part Numbers:


HTG-940-9 (populated with one Virtex UltraScale+ VU9P-2 FPGA )
HTG-940-9-3 (populated with one Virtex UltraScale+ VU9P-3FPGA)
HTG-940-13 (populated with one Virtex UltraScale+ VU13P-2 FPGA)
HTG-940-13-3 (
populated with one Virtex UltraScale+ VU13P-3 FPGA)


Price: Please contact us
