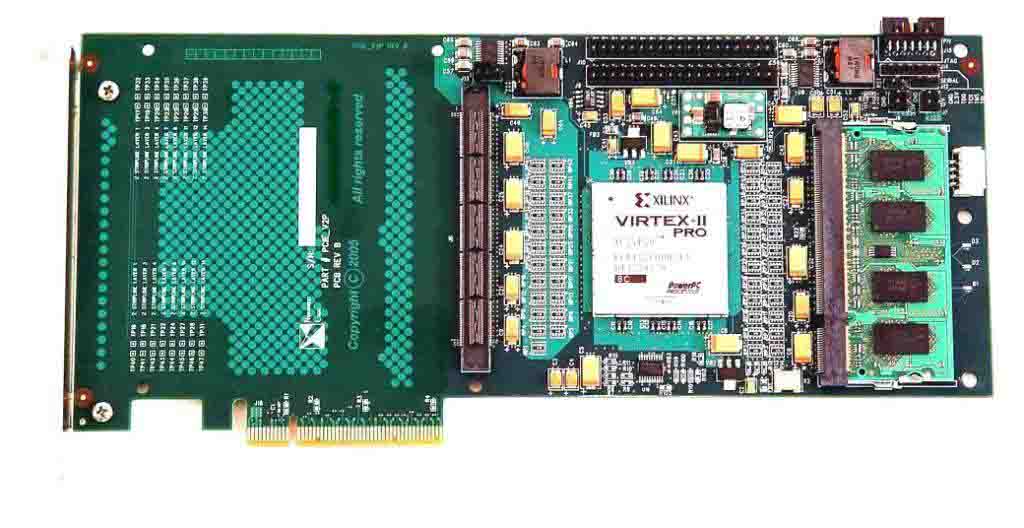

Powered by Xilinx Virtex-II Pro XCV2P-30 FF1152 and supported by PCI Express IP core, the NWL-V2P-PCIE is an ideal platform for development and evaluation of f PCI Express based designs.

Features:

• The default FPGA is a Virtex-2Pro 30 with a -7 speed grade. The board can also be special ordered with a
  Virtex-2 Pro 50 and selected speed grade.
• The board is shipped with a 256 MB DDR2 SDRAM SO-DIMM. The board can support up a 1 GB DDR2 SDRAM SO-DIMM. A custom version of the PCI Express Reference Design is needed to support any size other than 256 MB..
•  x8 PCI Express Connector. It can also be used x4 and x1 lane modes with a PCI Express Card Adapter.
• High-speed, impedance-controlled Expansion Card Connector ( Samtec MIS-095-01-L-D-K). The Expansion Card Connector is specifically designed to support a full stream of x8 PCI Express data at 64 bits wide, 125 MHz, DDR clocking. The Expansion Card Connector can be used to attach an application-specific expansion card. An
  expansion card enables the PCI Express Development Board to implement a complete three-port application (PCI
  Express Port, SDRAM port, custom port). The board comes with a Loopback Connector which plugs into the Expansion Connector. The Loopback Connector is used to test the Expansion Connector during the board self -test.
• Cable Header for logic analyzer or other system board. The board comes with a Loopback Cable which plugs into the Cable Header. The Loopback Cable is used to test the Cable Header during the board self -test.
• JTAG Connector for programming the FPGA Configuration PROM or directly the Virtex-
  2Pro. The Xilinx ChipScope tool also uses the JTAG connector.
• Serial Port Connector
• Power Connector (3.3V and 12 V)
• FPGA Configuration PROM (XCF08P-VO48)
