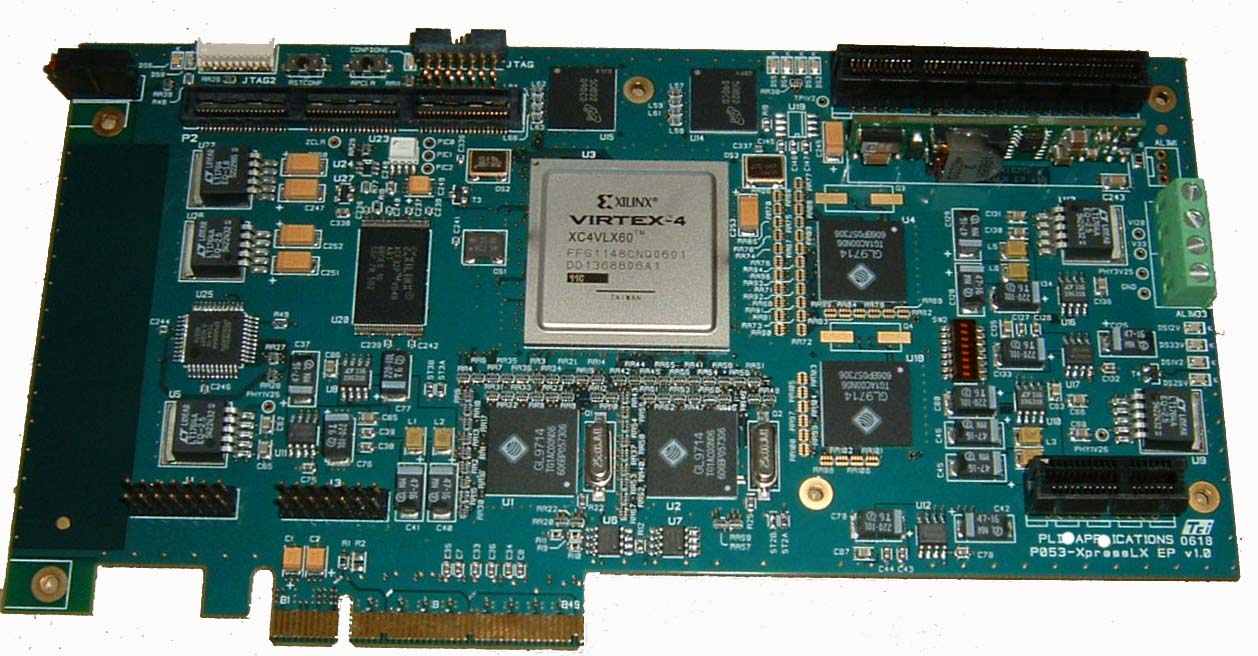

8-Lane PCI Express Development Board
Xilinx Virtex-4 LX & Genesys Logic PCI Express External PHY








Xilinx FPGA
ISE Design Tool



Xilinx Virtex-4 LX Product Table

Feature/Product
XC
4VLX15
XC
4VLX25
XC
4VLX40
XC
4VLX60
XC
4VLX80
XC
4VLX100
XC
4VLX160
XC
4VLX200
Logic Cells
13,824
24,192
41,472
59,904
80,640
110,592
152,064
200,448
Block RAM/FIFO w/ECC (18 kbits each)
48
72
96
160
200
240
288
336
Total Block RAM (kbits)
864
1,296
1,728
2,880
3,600
4,320
5,184
6,048
Digital Clock Managers (DCM)
4
8
8
8
12
12
12
12
Phase-matched Clock Dividers (PMCD)
0
4
4
4
8
8
8
8
Max Differential I/O Pairs
160
224
320
320
384
480
480
480
XtremeDSP™ Slices
32
48
64
64
80
96
96
96
PowerPC™ Processor Blocks
--
--
--
--
--
--
--
--
10/100/1000 Ethernet MAC Blocks
--
--
--
--
---
--
--
--
RocketIO™ Serial Transceivers
--
--
--
--
--
--
--
--
Configuration Memory Bits
4,875,392
8,037,312
12,647,680
18,315,520
24,101,440
31,818,624
41,863,296
50,648,448
Max SelectIO™
320
448
640
640
768
960
960
960
Package*
User
I/O
User
I/O
User
I/O
User
I/O
User
I/O
User
I/O
User
I/O
User
I/O
SF363
240
240
-
-
-
-
-
-
FF668
320
448
448
448
-
-
-
-
FF1148
-
-
640
640
768
768
768
-
FF1513
-
-
-
-
-
960
960
960



Features:

• PCI Express add-on board
• x1, x4, x8 Endpoint IP controller for PCI Express
• x1, x4 Root Port IP controller for PCIe
• Xilinx Virtex 4 LX based (XC4VLX100 or XC4VLX160)
• PCI Express 1.1 (and 1.0a) compliant
• Two Genesys Logic 4-Lane PCI Express External PHY (Upstream)
• One Genesys Logic 4-Lane and One 1-Lane PCI Express PHY (Downstream)
• 1 Gb DDR2 SDRAM (2 banks of 32Mx16-bit)
• Programmable FPGA via a JTAG connector or the EPCS16 (AS configuration)
• External connections
      o x8 PCI Express male connector
      o x1 & x4 PCI Express onboard female connectors (optional)
      o High-speed (Samtec) connector for interfacing with custom daughter cards
      o LEDs, switches

Deliverables

• The prototyping board
• Configurable IP Core for PCIe
• Reference Design
• Software Development Kit (SDK)
• Complete technical documentation
• Technical support and maintenance provided directly by the design team

Part Number & Price:

XpressLX100-11   $4,190
XpressLX160-11   $5,490
