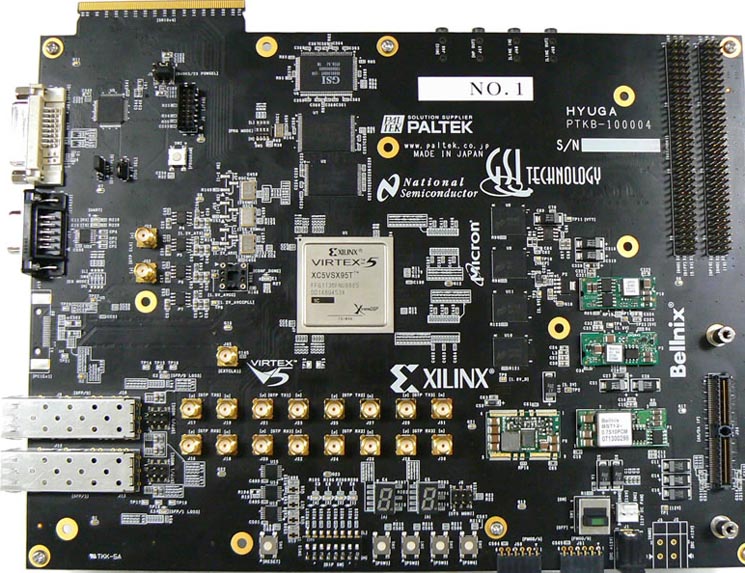

Virtex™ 5 DSP Development Platform






l

This is an ideal platform for DSP design  developments (Signal/Image Processing, Wireless, etc.)  using Xilinx Virtex-5 SX95T and peripherals such as DVI, Serial Rapid IO, SFP (CPRI), PCI Express, and memory (DDR2, SSRM, and Flash). This platform can also be connected to Texas Instruments TMS320C6455 kit  via EMIF and Serial Rapid IO interfaces.

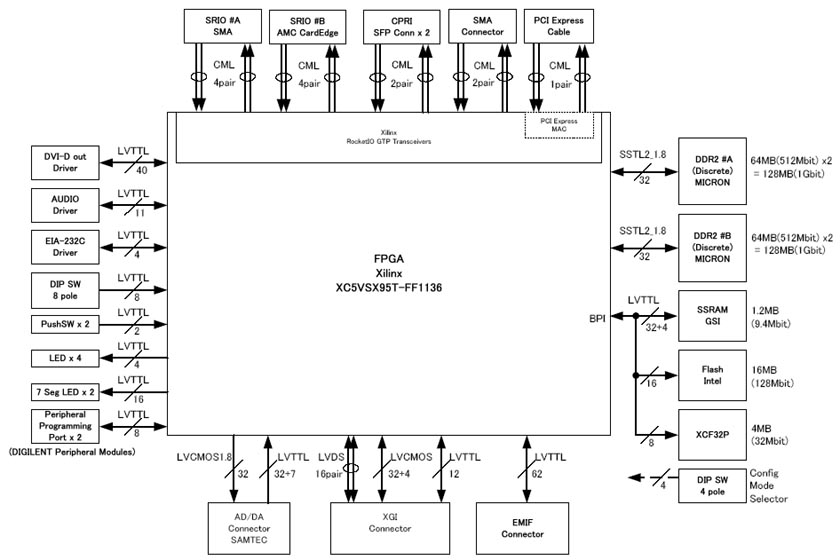

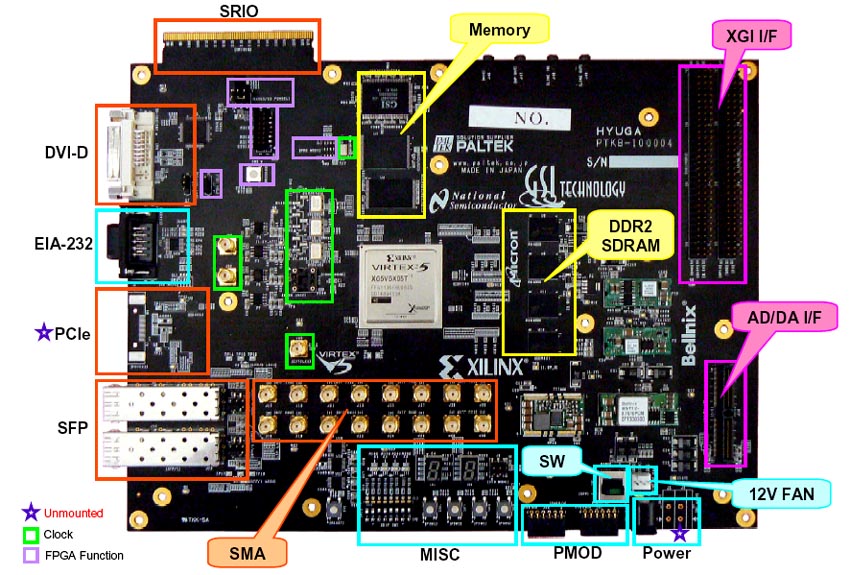

Main Board's Functional Blocks

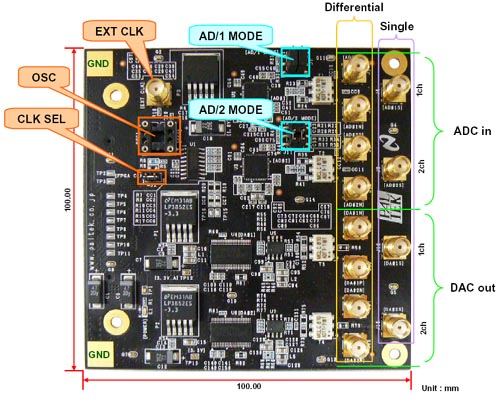

Add-on AD/DA Module's Functional Blocks



Features:

► Xilinx Virtex-5 XC5VSX95T F{GA
► SRIO (Serial Rapid I/O)
    – SRIO (Max10Gbps) link with TI DSP Evaluation board (TMS320C6455 DSK) using PICMIG AMC (Advanced Mezzanine Card)
► CPRI interface with 2 SFP connectors
► One-lane PCI Express cable interface
► DVI interface
► 16 SMA Connectors (4 RocketIO Gigabit ports)
► AD/DA Connector
   – 2ch A/D : 14bit @155MSPS
   – 2ch D/A : 14bit @135MSPS
► Xilinx Generic Interface (for Xilinx Video IO Daughter Card & other modules)
► EMIF
   – TI DSP evaluation board (TMS320C6455 DSK)
   – SAMTEC connector
► 2x MICRON DDR2 SDRAM (32bit 128MB)
► SRAM/Flash Memory
   – GSI Tech SRAM and Intel Flash Memory exclusive interface
   – BPI between Flash Memory and FPGA
► Debug EIA-232C
► GPIO
   – 2x 7segment LED, 4x LED, 8pole DIP switch, 4x push buttons
► TI Audio Codec (L&R)

 Kit Content:

►Virtex5 SX95T DSP board
►Schematic
►User Guide
► Sample file
– Board device
  • Flash, SRAM interface (.bit)
  • DDR2interface(.bit)
– AD/DAloop design
 • FPGAdownload file (.bit)

Ordering information:

Part Number: HTG-V5-DSP
Price: $7,500
