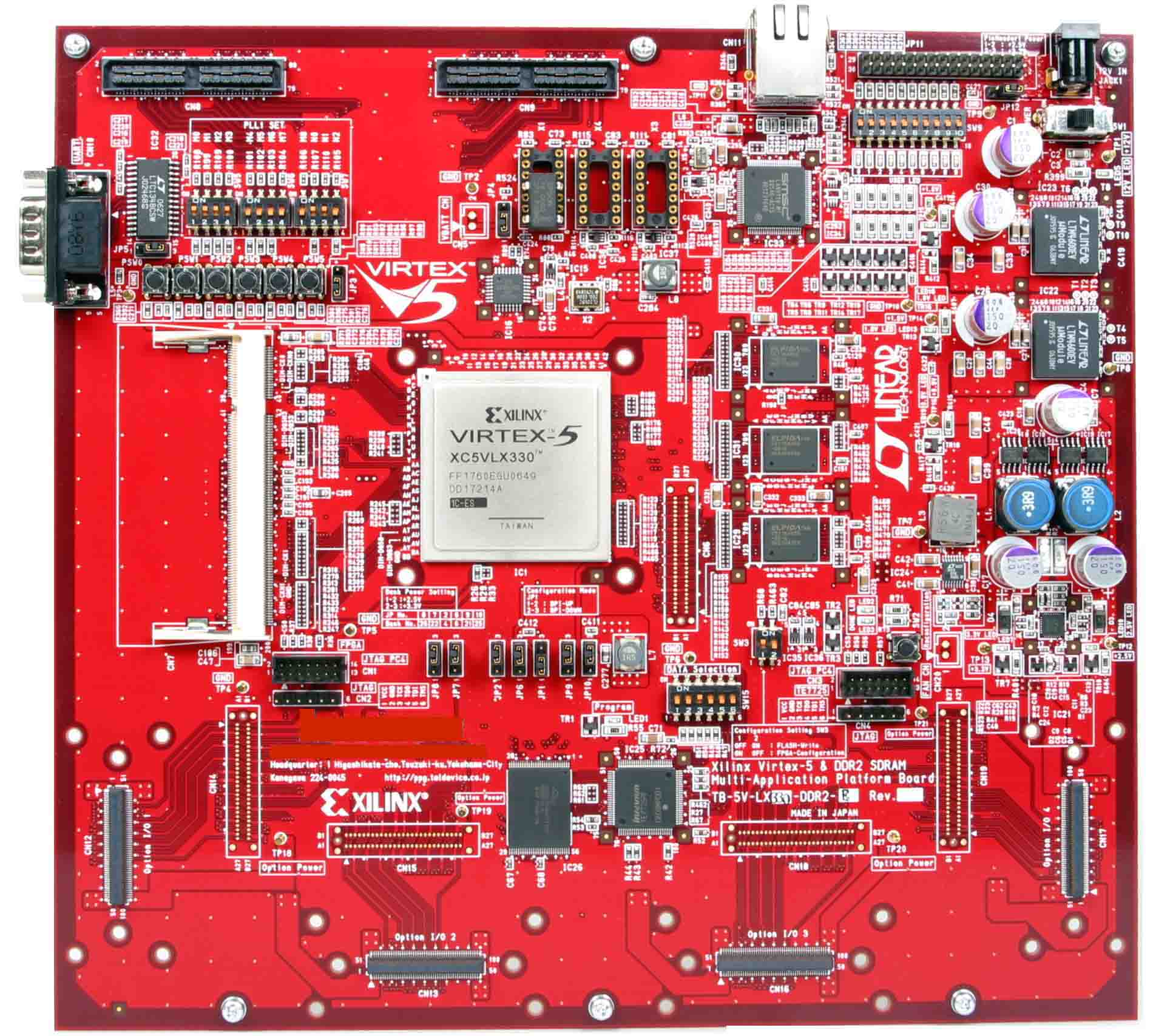

Xilinx Virtex™ 5 LX330 DDR 2 Memory , DVI , & Camera Link Design Kit

Xilinx Virtex 5 V5-LX-xxx-DDR2 boards are high performance and easy to use  platforms  for rapid evaluation of DDR-II memory devices, DVI, Cameralink interfaces, and ASIC prototyping with Xilinx Virtex-5 LX110, LX220, and LX330 devices.

The high speed general IO headers can host different modules such as "DVI Tx/Rx" ,  "Camera Link", "USB" and "Optical" .  Memory, Camera Link, and DVI reference designs are available and can be shipped with the board for free.

DDR-II Controller IP Core

Xilinx FPGA
ISE Design Tool

Xilinx PlanAhed

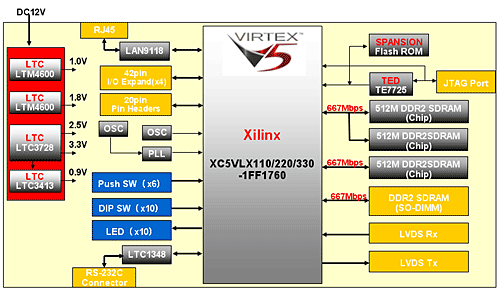

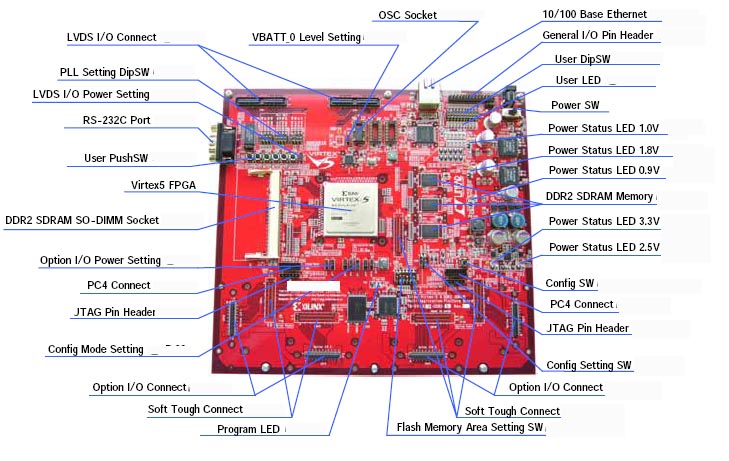

Features:

• FPGA: XC5VLX110/220/ 330 FF1760
• Memory: DDR2 SDRAM
• DDR2 Chip: 3 EDE5116AHSE (32Mbit X 16 ELPIDA) - 2 memory configuration
  1. Address: Share (1:2)/ Data bus: 32bit
  2. Address: Point to point (1:1)/ Data bus: 16bit
• DDR2 SO-DIMM (Up to 2GB)
• LVDS I/O : 56 pins connector (I/O:22 pair) Tx, Rx
• High speed I/O : 100 pins connector (I/O: 42 pins) x4
• Multi-purpose I/O : 30 pins Pin-header (I/O: 20 pins) x1
• Soft-touch connector : Soft-touch probe x5 (Agilent Technology)
• 10/100 Base Ethernet : RJ45 modular Jack
• RS232C : Interface with PC
• Configuration: TE7725 + Spansion BPI Flash memory
• Pin Header
• Clock: Frequency fee PLL (up to 500Mbps)
• Push switch x6/ DIP switch x10/ LED x10
• Out side dimension : 250mm x 230mm

Available Reference Designs:

• DDR2 Memory Controller

• DVI

                - Resolution: SXGA
                - Down converts from RGB24bit （R:8/G:8/B:8)　into　RGB16bit
               （R:8/G:8/B:8)

•  Development Board

• 5.0V AC Adapter

• CD ROM with sample circuits, sample application program,  user manual, etc.

• TB-5V-LX110-DDR2       $3,980 [Buy Online]
• TB-5V-LX220-DDR2       $7,980
• TB-5V-LX330-DDR2      $19,980

- Lead Time: 1 week

- Option Modules:

• TB-SUB-DVI (DVI Tx/Rx Interface): $598

• TB-SUB-CL (Camera Link) - $398

• TB-V2P-OPT (Virtex-II Pro Optical Module): $1,300

• TB-SUB-USB (USB Module): $598

• TB-SUB-PH (Pin Header Module) : $120
