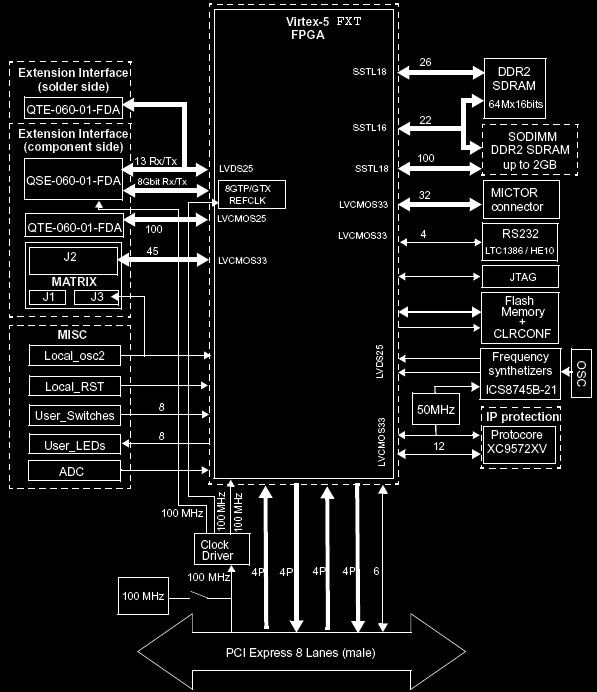

-Features:

► FPGA: Xilinx Virtex-5 FX70T
► PCI Express x1 x4 and x8 Endpoint (Gen 1),  x1 and x4 Endpoint (Gen 2)
► 1Gbit DDR 2  SDRAM (component soldered on the board as a 64Mx16-bit bank.)
► 200-pin DDR 2 SO-DIMM connector (up to 2GB)
► 16M x 16-bit Flash memory for configuration and data storage
► Extension Interface

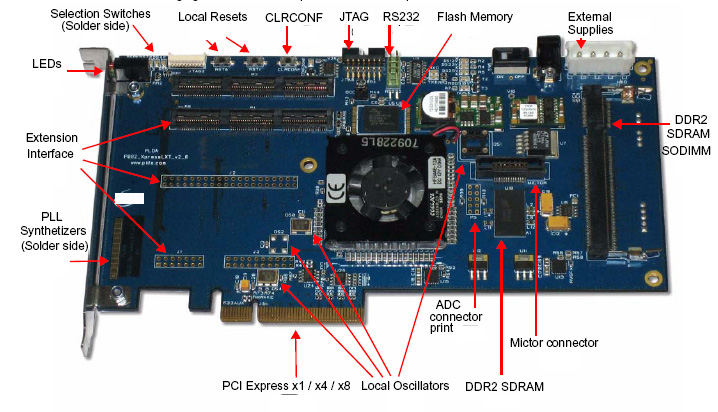

Component Side:

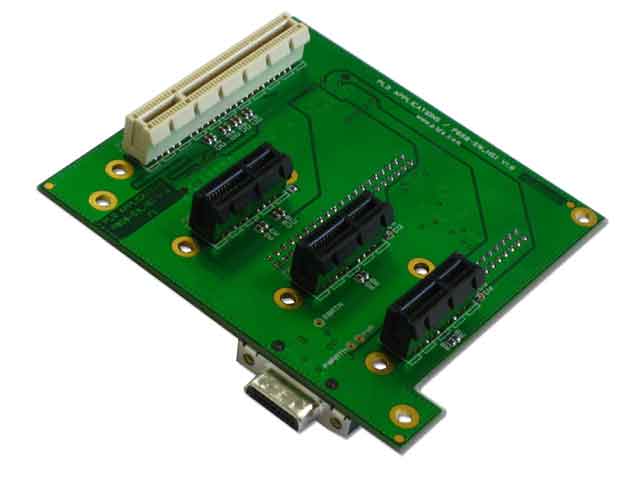

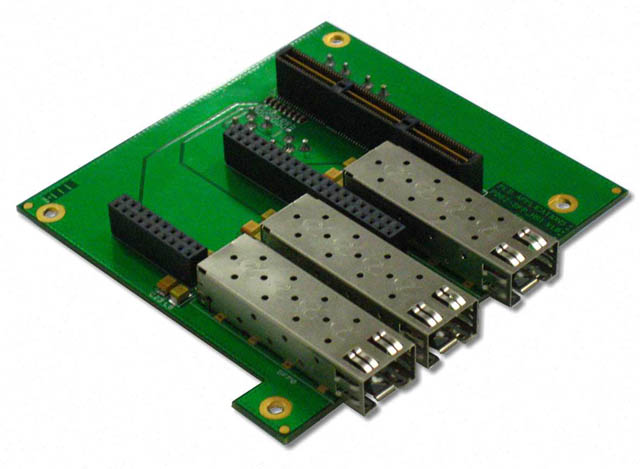

The high-speed interface consists of two high-speed 120-pin connectors (Samtec QSE-060-1-F-D-A). This interface includes:
• 8 Rx/Tx Gbit links
• 13 LVDS Receive and transmit pairs
• 102 single-ended signals available as SSTL2 or LVCMOS 2.5
The prototyping matrix features 3 user-dedicated connectors (45 LVCMOS33 I/Os).
Extension Interface:
The solder side of the extension interface consists of 1 high-speed 120-pin connector (Samtec QTE-060-1-F-D-A). This connector enables addition of the  PCIXYS V5 LX330 prototyping board via a simple daughter card, in order to increase the amount of logic cells. The high-speed connector includes 13 transmit and 13 receive LVDS pairs (also available as 80 LVCMOS signals). These signals are shared with the component-side connector.

► Local Oscillators:
• x1 50MHz to synchronize the protocore with the FPGA and input 1 frequency synthesizer.
• x1 LVDS 100MHz for stand-alone applications.
• x2 oscillator prints for custom user frequencies.

► Mictor Connector
► RS232 (HE10 Connector)
► External Supplies (for stand alone mode)
►ADC Connector:
• VP/VN analog input (10b/200k SPS)
• DXP/DXN temperature sensing input
• Vbat input
