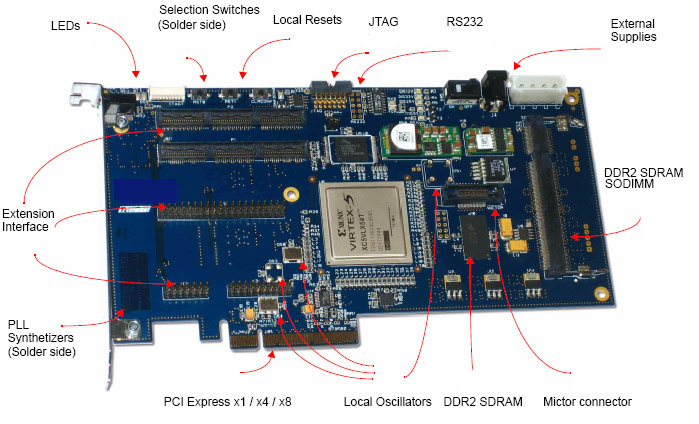

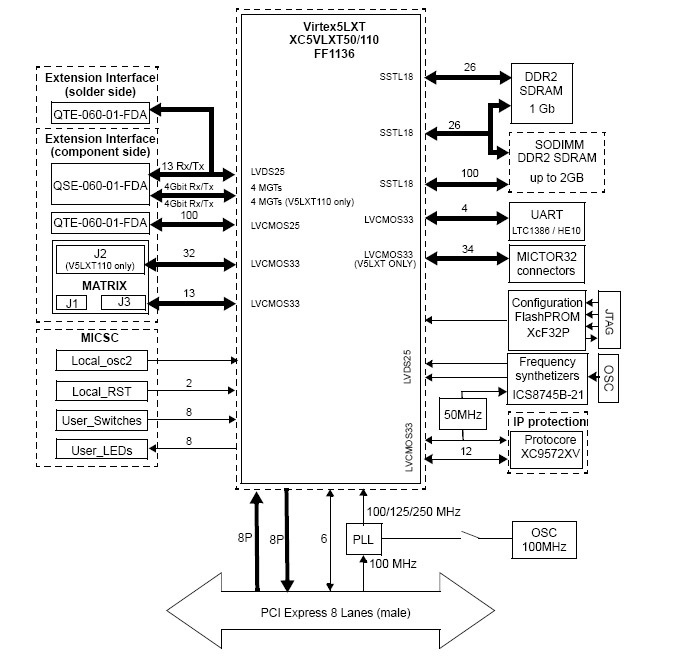

-Features:

► FPGA: Xilinx Virtex-5 LX50T or LX110T
► PCI Express 1x, 4x and x8 Endpoint (LX50T & LX110T versions) and Root Port (only the
     LX110T version)
► PCIe x8 Endpoint connector on-board
► PCIe x8 Root Port connector on daughter board (usable with the LX110T version)
► PCIe x1 and x4 Cable connector on daughter board
► 1Gbit DDR 2  SDRAM (component soldered on the board)
► 200-pin DDR 2 SO-DIMM connector (up to 2GB)

► Extension Interface:
a) Component side Extension interface made of two high Speed 120-pin connectors
(SAMTEC QSE-060-1-F-D-A). This interface includes:
- 4 RX/TX Gbit links for boards mounted with V5LX50T
- 8 Rx/Tx Gbit links for boards mounted with V5LX110T
- 13 LVDS Receive and Transmit pairs
- 102 single-ended signals available as SSTL2 or LVCMOS 2.5

b ) Solder Side Extension interface made of two high Speed 120-pin connectors
(SAMTEC QTE-060-1-F-D-A). This interface includes:
-  13 transmit and 13 receive LVDS pairs (also available as 80 LVCMOS signals) - shared with the component side connector.
► Mictor Connector
► RS232
► External Supplies (for stand alone mode)
