Virtex 5 PCI Express / Image Processing ( Cameralink) Development Board
|
|
|
Virtex 5 PCI Express / Image Processing ( Cameralink) Development Board |
|
|
|
|

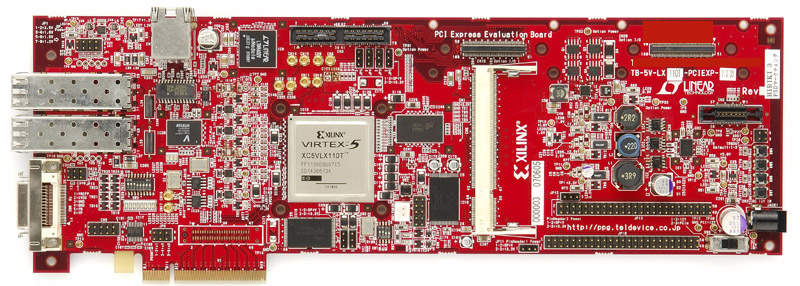

Populated with Xilinx Virtex-5 LX110T, or SX50T, this eight-lane PCI Express platform provides access to two SFP ports, one Cameralink (base), one Gigabit Ethernet port, two MMCX ports, 512 Mb SDRAM, one SO-DIMM, two high-peed connectors, two general purpose connectors, one Mictor connector, 4 general purpose RocketIO GTPs, one Platform Flash, and 50 I/O pins. |
|
|
|
|||||||||||||||
|

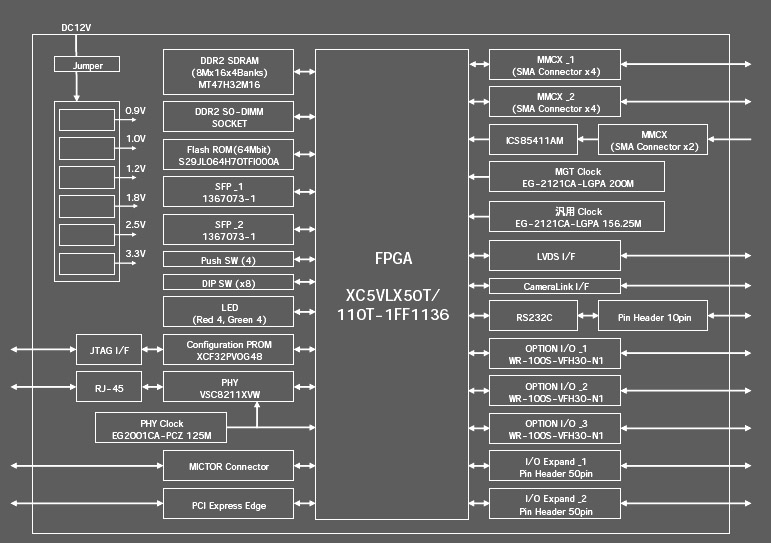

►Features:
▪
XC5VLX110T/SX50T -1FF1136
▪ x8 PCI Express ▪ x1 Camera Link Rx Connector (Base Configuration) ▪ x2 SFP port (Max 3.75 Gbps) ▪ DDR2 SDRAM (512Mb/400Mbps ): 1chip ▪ DDR2 SO-DIMM ▪ x1 10/100/1000Mbps Ethernet port ▪ x1 MICTOR Connector (For Debugging) ▪ x2 MMCX Connector (Max 3.75 Gbps x2) ▪ x1 Samtec Connector (for the LX110T option, Max 3.75Gbps x4) ▪ 50 IO Pin Header x2 (Only LX110T) ▪ Connector for optional modules (USB 2.0, Video, DVI, Pin Header, and Camera Link ) ▪ x4 Push switch, x8 DIP switch, x8 LED ▪ Size: 310.0 mm x 111.15 mm (12.5 " x 4.5 ") |
►Ordering
Information:
TB-5V-LX110T-PCIEXP:
$4,980
TB-5V-SX50T-PCIEXP:
$3,980
TB-5V-FX70T-PCIEXP: $4,980 - PCI Express Driver Source Code (C) - Windows XP or Linux
►Reference Designs
-
Image data DMA transfer (Add-in Card PC)
-
RocketIO Loop Back (Aurora, 8B10B, PRBS)
-
TEMAC for MicroBlaze
|
||||||||||||||
|
|||||||||||||||
|
HiTech Global Design & Distribution, LLC |
|||||||||||||||
