Virtex™ 5  FX100T, FX70T, LX110T & SX95T
x8 PCI Express Gen. 1 & 2 Development Board

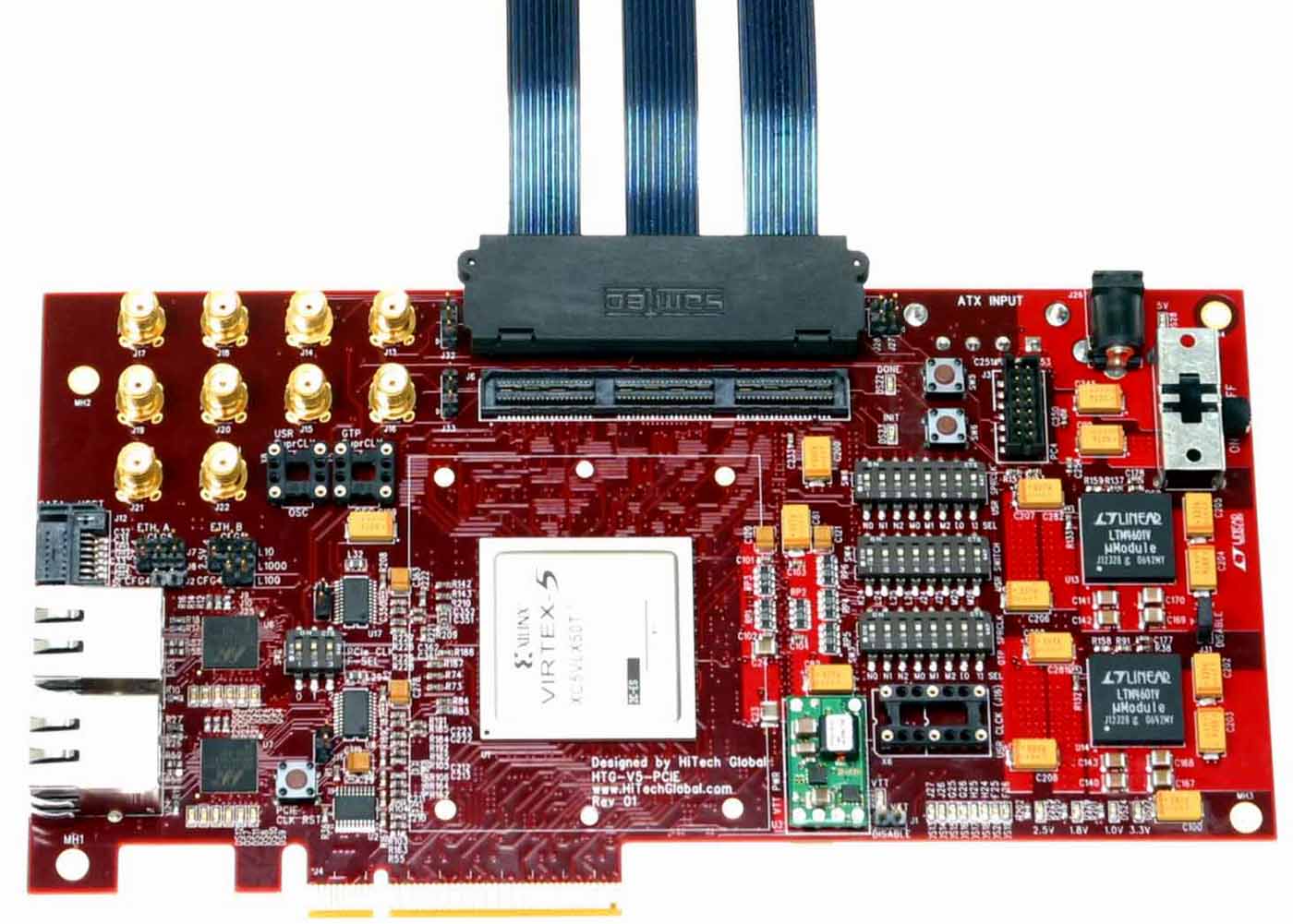

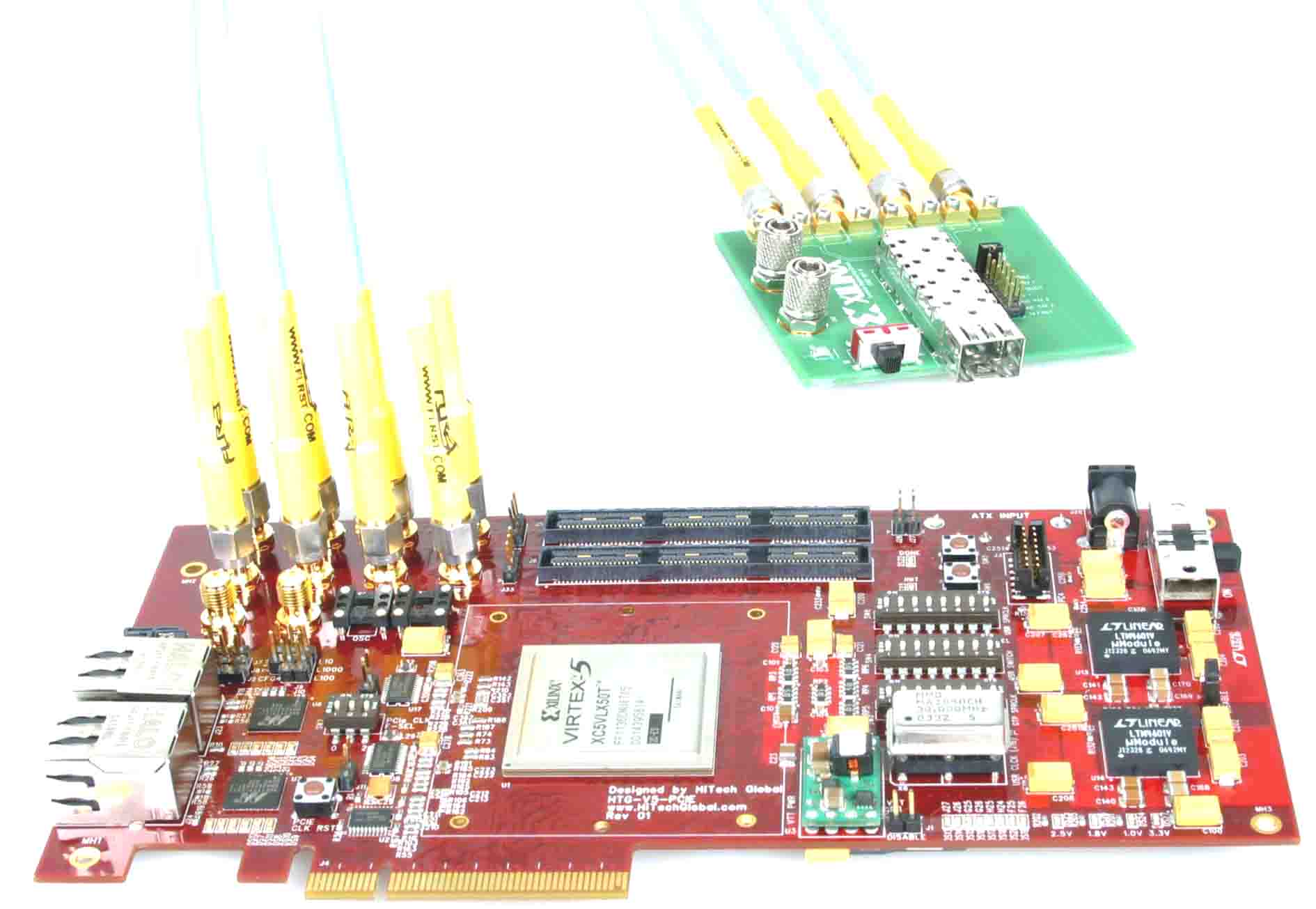

The HTG-V5-PCIE board is powered by Xilinx Virtex™-5 FX100T, FX70T,  SX95T or LX110T and supports 8 lanes of PCI Express Gen 1 & 2 end-point applications.

The HTG-V5-PCIE provides wide variety of connectors and interfaces including ;one PCI Express 8-lane upstream, two Gigabit Ethernet (10/100/1000, one with SGMII support),  eight  SMA (connected to two RocketIO GTP/GTX channels),  and two Samtec with 64 pairs of LVDS (for DVI Tx, USB 2.0, Cameralink , and I/O modules).

The HTG-V5-PCIE board  provides access to up to 2 GB of DDR-2 memory through one set of SO-DIMM socket. An Elpida DDR-2           (512 MB) module is included.

The HTG-V5-PCIE can be used either as stand-alone  or PCI Express based card. This provides additional functionality and cost saving so designers can use the board for multiple designs and projects (embedded systems development, digital signal processing, etc.)

The HTG-V5-PCIE board is supported by  many different IP Cores provided by HiTech Global.

Supported Virtex-5 devices:

Part Number XC5VLX50T XC5VLX85T XC5VLX110T XC5VSX95T XC5VFX70T XC5VFX100T
Slices  7,200 12,960 17,280 14,720 11,200 16,000
Logic Cells  46,080 82,944 110,592 94,208 71,680 102,400
CLB Flip-Flops 28,800 51,840 69,120 58,880 44,800 64,000
Maximum Distributed RAM (Kbits) 480 840 1,120 1,520 820 1,240
Block RAM/FIFO w/ECC (36Kbits each) 60 108 148 244 148 228
Total Block RAM (Kbits) 2,160 3,888 5,328 8,784 5,328 8,208
Digital Clock Managers (DCM) 12 12 12 12 12 12
Phase Locked Loop (PLL)/PMCD 6 6 6 6 6 6
Maximum Single-Ended Pins 480 480 680 640 640 680
Maximum Differential I/O Pairs 240 240 340 320 320 340
DSP48E Slices 48 48 64 640 128 256
PowerPCฎ 440 Processor Blocks — — — — 1 2
PCI Express Endpoint Blocks 1 1 1 1 3 3
10/100/1000 Ethernet MAC Blocks 4 4 4 4 4 4
RocketIO GTP Low-Power Transceivers 12 12 16 16 — —
RocketIO GTX High-Power Transceivers — — — — 16 16
Configuration Memory (Mbits) 14.1 23.3 31.1 35.7 27 39.4

em, and storage designs.

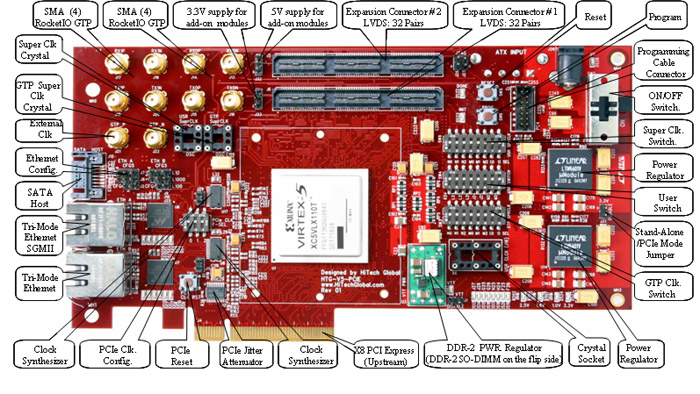

►Features:

▪ Xilinx Virtex-5 XC5VLX110T, XC5VFX100T, XC5VFX70T or XC5VSX95T
 ▪ 8-Lane PCI Express End-Point (upstream) Connector
 ▪ One Serial ATA (SATA) Host Connector (I/II)
 ▪ One SGMII Ethernet Connector (using one RocketIO GTP/GTX)
 ▪ One Tri-Mode Ethernet Connector (10/100/1000)
▪ Eight SMA Connectors (4 Tx and 4 Rx) - Connected to two RocketIO GTP/GTX
  Transceivers (SerDes)

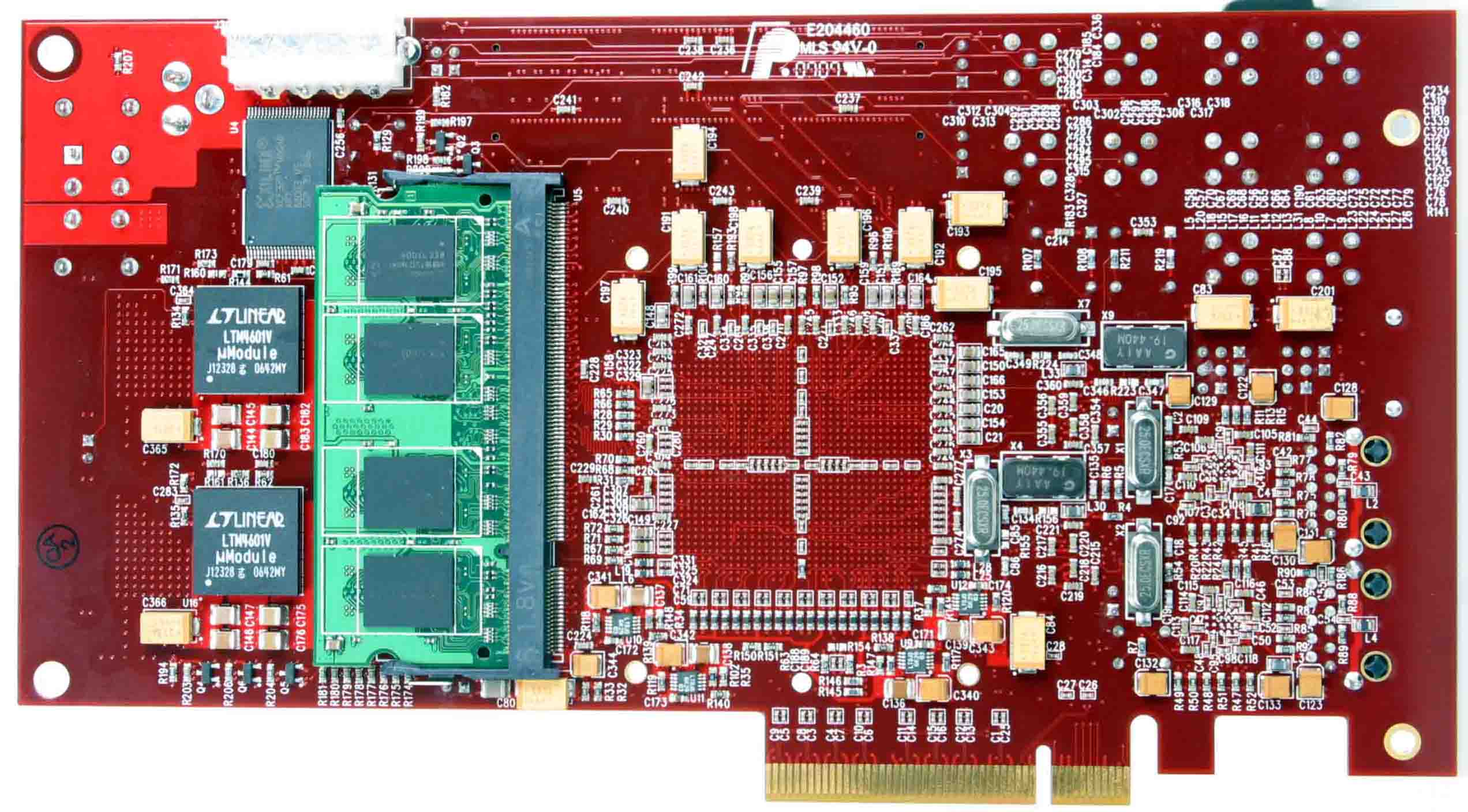

 ▪ One DDR2 SO-DIMM (up to 2GB) with one Elpida module (EBE52UD6AJUA-6E-E)
 ▪ 4 MB Flash Memory (for FPGA configuration and storage)
 ▪ Two LVDS Samtec Headers (total of 64 pairs)
 ▪ GTP Super Clock
 ▪ User Super Clock
 ▪ Adjustable PCI Express Jitter Attenuator
 ▪ External Clock Input
 ▪ GTP, User, and Super Clock Switches
▪ Configurable (FPGA) through PCI Express bus
 ▪ ATX and Standard 5 V Power Connectors
 ▪ Jumper for Stand Alone mode
▪ Jumpers for FPGA configuration via PCI Express bus
 ▪ Size: 8" x 4.25" (20 cm x 11 cm)
 ▪ Linear Technology FPGA/RocketIO Power Regulators LTM4601EV and LTC3026

*** Product Brief (Pdf) ****

►Kit Content:

- HTG-V5-PCIE Board
- Free high performance DDR2 Memory Controller Netlist
- CD ROM with User Manual, Schematics (in searchable pdf format) , Software Drivers (eval.), PCI Express Gen 2 back-end (DMA) reference demo, PCI Express Gen 1 CoreGen PIO design , and ChipScope PRO IBERT reference/test designs (for RocketIO serial transceivers)

► Part Number & Price:

- HTG-V5-PCIE-110-1 (with XC5VLX110T-1FFG1136C Virtex 5 FPGA)
Price: $3,200  [Buy Online]

- HTG-V5-PCIE-110-3 (with XC5VLX110T-3FFG1136C Virtex 5 FPGA)
Price: $3,950  [Buy Online]

- HTG-V5-PCIE-FX70 (with XC5VFX70T-2FFG1136C Virtex 5 FPGA)
Price: $3,400 [Buy Online]

- HTG-V5-PCIE-FX100-3 (with XC5VFX100T-3FFG1136C Virtex 5 FPGA)
Price: $3,900 [Buy Online]

- HTG-V5-PCIE-SX95-1 (with XC5VSX95T-1FFG1136C)
Price: $3,200 [Buy Online]

- HTG-V5-PCIE-SX95-2 (with XC5VSX95T-2FFG1136C)
Price: $3,950 [Buy Online]

HTG-V5-PCIE-330 (with XC5VLX330T-FFG1738C)

HTG-V5-DDR3-PCIE-100  (with XC5VFX100T-2FFG1136C Virtex 5 FPGA)

►Software:

-  PCI Express Driver Source Code (C) - Windows XP or Linux
- PCI Express Back End (High Performance DMA Engine)
Accessories & Tools


The High Speed Interface bread board offers access to 100 signals from the SAMTEC connector .  600 holes (254mm step) are available for prototyping purposes
Part Number: BB-HSI
Price: $390

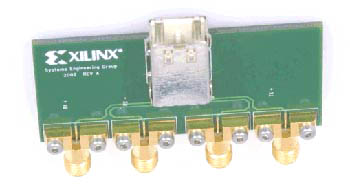

Used in conjunction with the on-board SMA connector (s) to provide one or two HSSDC2 connector (s) to the main board
Part #: SMA-TO-HSSDC2
Price: $465

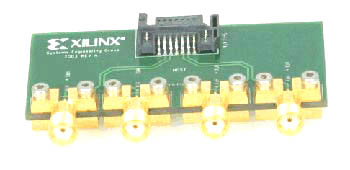

Used in conjunction with the on-board SMA connector (s) to provide one r two SATA connector (s) to the main board

Part #: SMA-TO-SATA
Price: $395

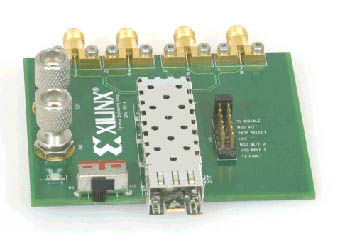

Used in conjunction with the on-board SMA connector (s) to provide one or two SFP connector (s) to the main board

Part #: SMA-TO-SFP
Price: $290



The latest Xilinx FPGA Design Tool supporting Virtex-5 devices


Part #: DS-ISE-FND
Price: $2,495




FPGA Programming Cable (USB)

Part #: HW-USB
 Price: $220





Used for connecting 8 on-board SMA connectors  to the above conversion modules, scopes, or other boards with SMA and Serial IO Transceivers
  (24 Inches)

Part #: SMA-CBL2
Price: : $18
Board to board (or to module) connector (6")

Part #: QSE-TO-QSE
Price: $175

Cable Builder for the high-speed connectors


PC for PCI Express Development
Part #: HTG-PCIE-PC
Price: $1,295

Part #  HTG-PCIE-GEN2-PC
Price: $1,595

Coming Soon:

Communication Module with:

x1 USB 2.0 Host
x1 USB 2.0 Peripheral
x1 SD Interface
x1 Mictor/Debug



Summary of Virtex-5 PCI Express Boards

  PCIe Support Memory Communication/Interface
  Gen 1 Gen2     Expandable I/Os
Part Number  Xilinx FPGA x8 x4 x8 x4 DDR2 DDR3 Flash 1 GigE USB SD SFP SATA SMA PCIe    (F) Mictor Single LVDS MGT
HTG-V5-PCIE-330-1  LX330T-1 √ √ - - 2 GB - 256 Mb x2 - - x10 x2 x8 - - 136 68 12
HTG-V5-PCIE-330-2  LX330T-2 √ √ - - 2 GB - 256 Mb x2 - - x10 x2 x8 - - 136 68 12
HTG-V5-PCIE-200  FX200T-2 √ √ √ √ 2 GB - 256 Mb x2 - - x10 x2 x8 - - 136 68 12
HTG-V5-PCIE-240  SX240T-1 √ √ - - 2 GB - 256 Mb x2 - - x10 x2 x8 - - 136 68 12
HTG-V5-PCIE-110  LX110T-1 √ √ - - 2 GB - 32 Mb x2 - - x2 x1 x8 - - 128 64 2
HTG-V5-PCIE-95  SX95T-1 √ √ - - 2 GB - 32 Mb x2 - - x2 x1 x8 - - 128 64 2
HTG-V5-PCIE-70  FX70T-2 √ √ √ √ 2 GB - 32 Mb x2 - - x2 x1 x8 - - 128 64 2
HTG-V5-PCIE-100  FX100T-2 √ √ √ √ 2 GB - 32 Mb x2 - - x2 x1 x8 - - 128 64 2
HTG-V5-PCIE-DDR3-70  FX70T-2 - √ - √ 2 GB 512 Mb 128 Mb x1 x2 x1 x2 x1 x16 x4 x1 100 50 8
HTG-V5-PCIE-DDR3-100  FX100T-2 - √ - √ 2 GB 512 Mb 128 Mb x1 x2 x1 x2 x1 x16 x4 x1 100 50 8
HTG-V5-PCIE-DDR3-95  SX95T-1 - √ - - 2 GB 512 Mb 128 Mb x1 x2 x1 x2 x1 x16 x4 x1 100 50 8
HTG-V5-PCIE-DDR3-155  LX155T-1 - √ - - 2 GB 512 Mb 128 Mb x1 x2 x1 x2 x1 x16 x4 x1 100 50 8
