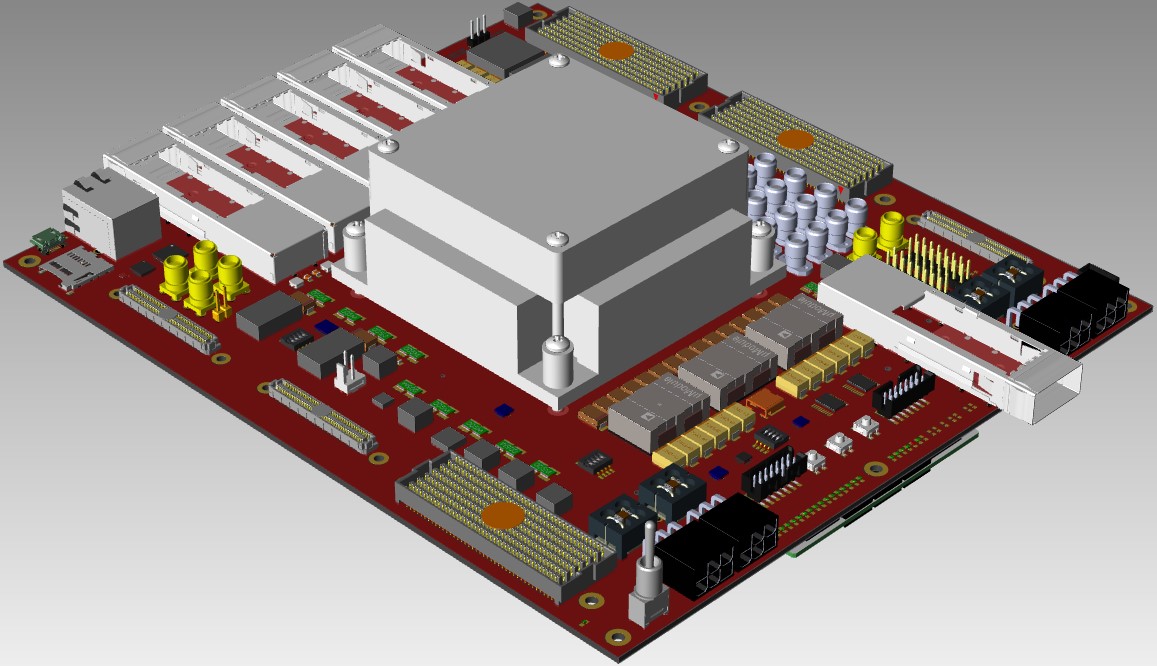

HTG-VSL802: Versal Premium Platform





Populated with one AMD Versal  VP1802 (Premium)  FPGA, the HTG-VSL802 platform provides access to large  FPGA gate densities for wide range of programmable designs and applications.





1.85 Breakout Daughter Card (GTM/GTYP)

Part Number: HTG-ADM6-X16-1.85


2-Port QSFP-DD Daughter card

Part Number: HTG-ADM6-X2QSFP-DD

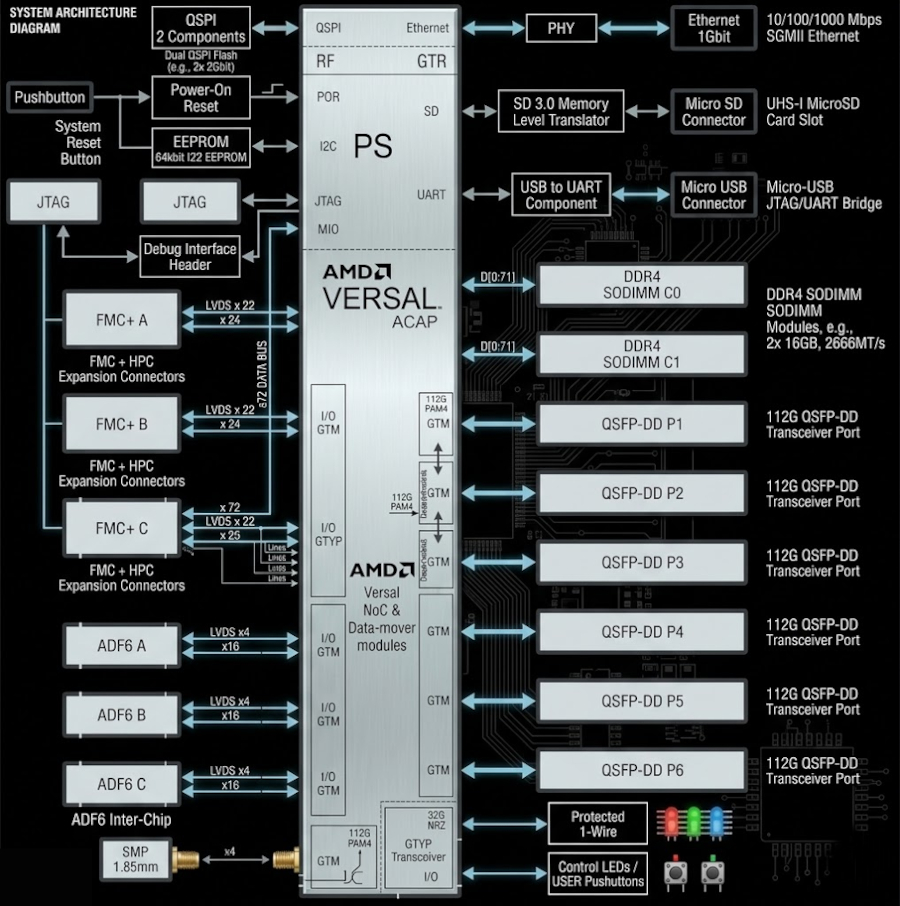

Features:

►Populated with one AMD Versal  XCVP1802-2MSELSVC4072 FPGA

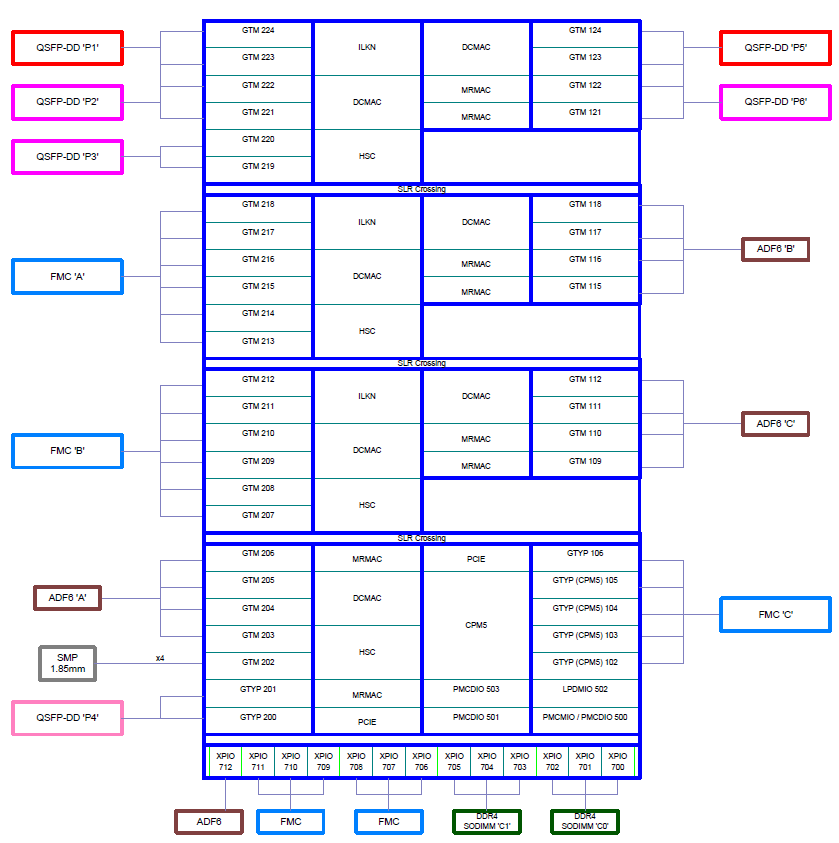

►x3 Vita57.4 FMC+ expansion ports  with total of  x48 GTM serial transceivers , x20 GTYP serial transceivers and  x352 Single-ended I/Os (x176 LVDS)
► x3 AcceleRateŽ (
ADF6) expansion ports with total of  x48 GTM serial transceivers  and  x24 Single-ended I/Os (x12 LVDS)
► x16  SMP 1.87 connectors with total of x4 GTM serial transceivers.
►x2 72-bit /ECC DDR4 SODIMM ports (supporting total of 64 GB)
►x6 QSFP-DD ports
►x1 10/100/1000 Ethernet port
►x1 MicroSD (3.0) socket
►x2 QSPI Flash for FPGA configuration
►Programmable clock generators
►x1 USB/UART port
►x1 Power Bus Manager
►x1 x2 JTAG connectors (PS and PL sides)
►x4 Power Connector (12V/8A+)

Kit Content:

Hardware:
-HTG-VSL802 platform

Reference Designs/Demos:
-DDR4 memory controllers

Documents:

-User Manual
-Schematics (in searchable .pdf format)
-FPGA Pinout File
Ordering information

Part Numbers:


HTG-VSL802


Price: Please contact us
