HTG-830: Virtex / Kintex UltraScale™ Development Platform
Populated with one Xilinx Virtex
UltraScale (VU190 or VU095) or Kintex UltraScale (KU115) FPGA, the
HTG-830 provides access to wide range of FPGA gate densities ,
Gigabit Serial Transceivers, and General Purpose I/Os for variety of
different programmable applications.
The HTG-830 architecture allows easy and versatile functional expansion
through two Vita 57.4 (FMC+) , one Vita 57.1 (FMC) compliant High-Pin-Count FPGA Mezzanine
Card connectors, and one Z-RAY interposer. The FMC+/FMC connectors provide access to 344 single-ended FPGA I/Os and
up to 32 GTH (16G), and 20 GTY (30.5G) serial transceivers. The
high-performance Z-Ray interposer also provides access to up to 16 GTY serial
transceivers (as well as control and voltage pins) for
applications requiring large number of concentrated serial I/Os such as
Hybrid Memory Cube (HMC), 100Gig Ethernet (QSFP28), 120Gig (CXP
and FireFly), 40Gig Ethernet (QSFP+), 25G Ethernet (SFP28) and 10G
Ethernet (SFP+).
The HTG-830 is supported by one 72-bit ECC DDR4 SODIMM socket
providing access to up to 16 GB of SDRAM memory (the board is shipped
with one 8GB SODIMM module).
The HTG-830 can be used in PCI Express and Standalone
mode and powered through a 6-pin Molex PCIe connector.
Supported FPGA devices:
| |
XCVU095 |
XCVU125 |
XCVU160 |
XCVU190 |
XCKU115 |
| Logic Cells (K) |
941 |
1,253 |
1,621 |
1,880 |
1,451 |
| Block RAM (Mb) |
60.8 |
88.6 |
115.2 |
132.9 |
75.9 |
| DSP Slices |
768 |
1,200 |
1,560 |
1,800 |
5,520 |
| PCI Express®
Blocks |
4 |
4 |
4 |
6 |
6 |
| Interlaken |
6 |
6 |
9 |
9 |
0 |
| 100G Ethernet |
4 |
6 |
7 |
9 |
0 |
| GTH 16 Gb/s
Transceivers |
32 |
40 |
40 |
40 |
64 |
| GTY 30.5 Gb/s
Transceivers |
32 |
36 |
36 |
36 |
0 |
| I/O Pins (HP) |
650 |
650 |
650 |
650 |
598 |

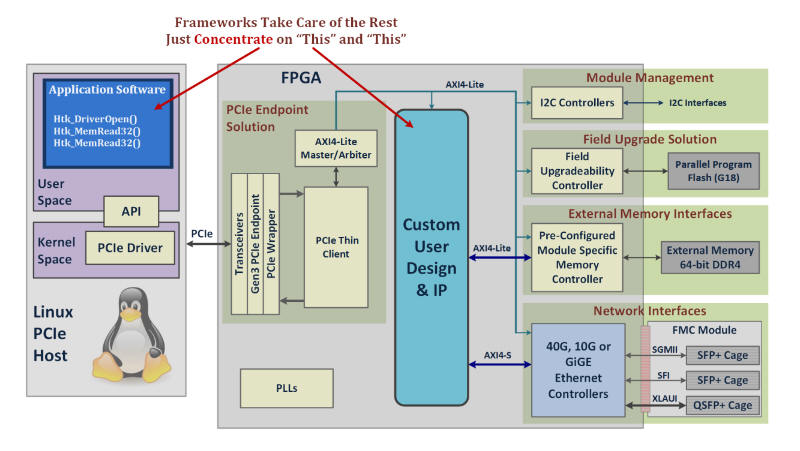

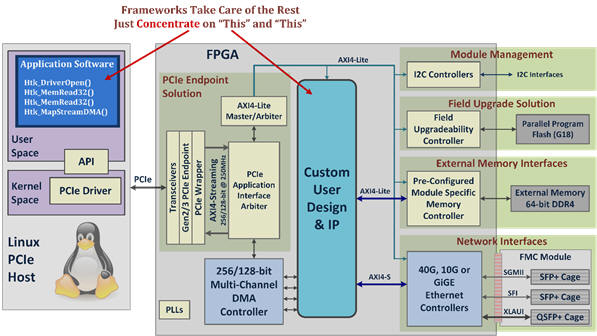

Extensible FPGA Framework (EFW)
Extensible FPGA Framework (EFW) empowers FPGA
developers with a verified set of productivity solutions, including
module targeted physical interface components, device drivers and APIs
for the HiTech Global HTG-830 PCIe module. The EFW saves months of
development and debug time by enabling developers to skip the tedious
and time consuming phase of IP core integration, interface verification
and firmware development.
Extensible FPGA Framework (EFW) with a verified set of
productivity solutions [
More info]
|

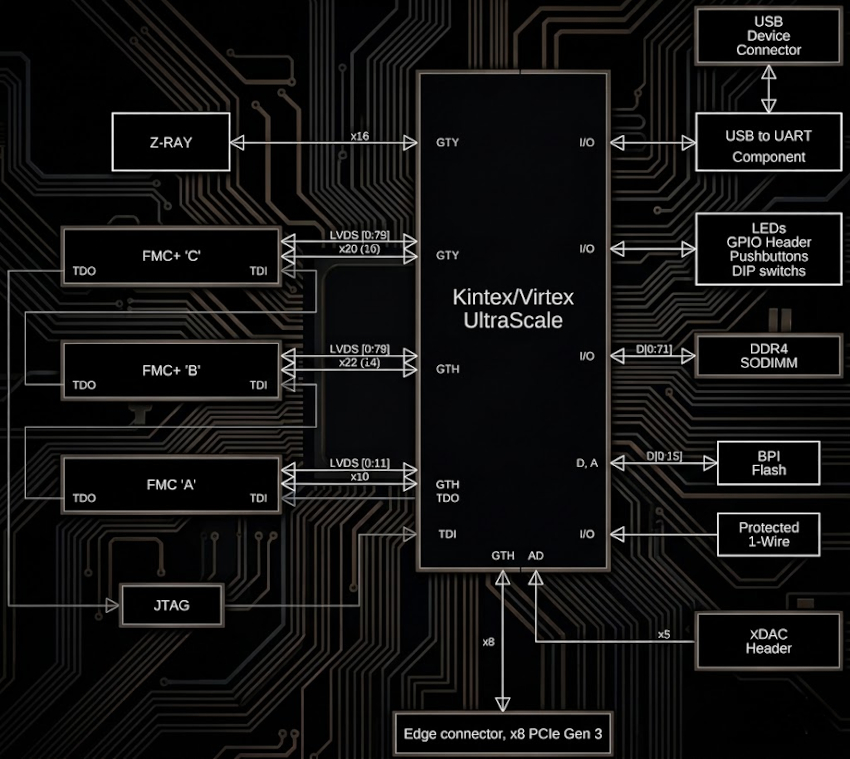

Features:
►x1 Xilinx Virtex or Kintex UltraScale FPGA
in B2104 package
►x8 PCI Express Gen 3 end
point
►x1 DDR4 ECC supported SODIMM sockets (up to 16GB-
shipped with 4GB None ECC)
►x1 Z-RAY high speed connector with 16 GTY
(30.5G) serial transceivers, I/O and
voltage control pins (used for modules such as HiTech Global Hybrid
Memory Cube)
►x2 FMC+ (Vita 57.4)
ports providing access to 320 single-ended FPGA I/Os,
up to 22 GTH (16G), and 20 GTY (30.5G) serial transceivers (Vita57.1
compliant FMC modules are pluggable into Vita57.4 compliant FMC+
ports)
►x1 FMC (Vita 57.1) port providing access to 22 single-ended FPGA
I/Os and 10 GTH serial transceivers
►XDAC headers
►x1 USB to UART Port
►x1
BPI Flash for configuration
►x1 Jtag port for configuration and debugging
►Programmable oscillators
►x1
IP protection circuit
►Size: 9.5" x 4.25"
►Supports
both PCI Express and Standalone operations
-
12V/8A
Power adapter for standalone operation
Summary of I/O distributions through the
FMC+/FMC and Z-Ray connectors on different models:
|
|
FMC_A
(front panel ) |
FMC+_B
(upper left) |
FMC+_C
(upper right) |
Z-RAY |
|
VU095 |
22 GPIOs
10 GTH |
160 GPIOs
14 GTH |
160 GPIOs
16 GTY |
12 GTY |
|
VU125 |
22 GPIOs
10 GTH |
160 GPIOs
22 GTH |
160 GPIOs
20 GTY |
16 GTY |
|
VU160 |
22 GPIOs
10 GTH |
160 GPIOs
22 GTH |
160 GPIOs
20 GTY |
16 GTY |
|
VU190 |
22GPIOs
10 GTH |
160 GPIOs
22 GTH |
160 GPIOs
20 GTY |
16 GTY |
|
KU115 |
22 GPIOs
10 GTH |
160 GPIOs
22 GTH |
160 GPIOs
20 GTH |
4 GTH |
|
Kit
Content:
Hardware:
-HTG-830 platform
Reference Designs/Demos:
-PCI Express and DDR4 memory controllers
Documents:
-User Manual
-Schematics (in searchable .pdf format)
Ordering information
Part Numbers:
HTG-VKU-PCIE-095 (populated with on Virtex UltraScale VU95T-2
FPGA)
HTG-VKU-PCIE-190
(populated with on Virtex UltraScale VU190T-2
FPGA)
HTG-VKU-PCIE-115
(populated with on Kintex UltraScale
KU115T-2 FPGA)
Price: Please
contact us |
|
