Xilinx Virtex 4 & ARM 926/1136 Verification IP Platforms

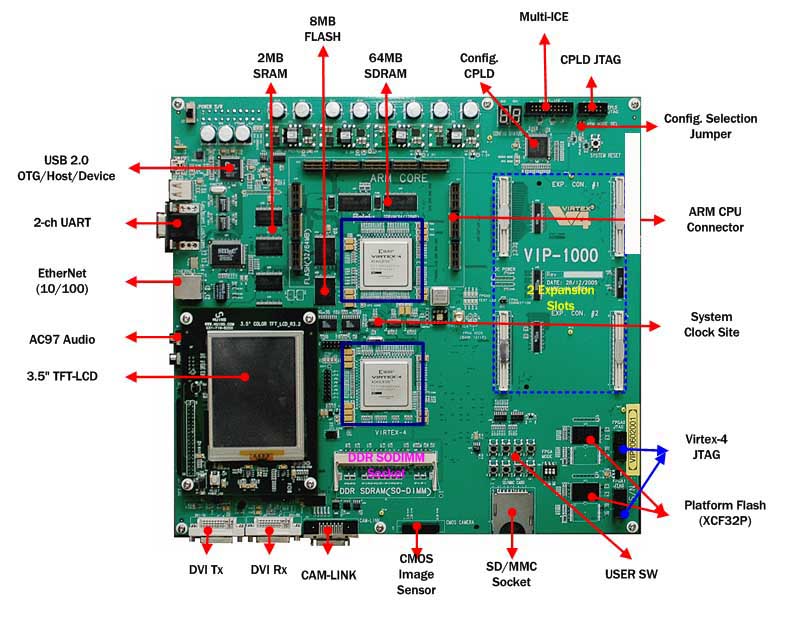

Please click on the picture for description of each component

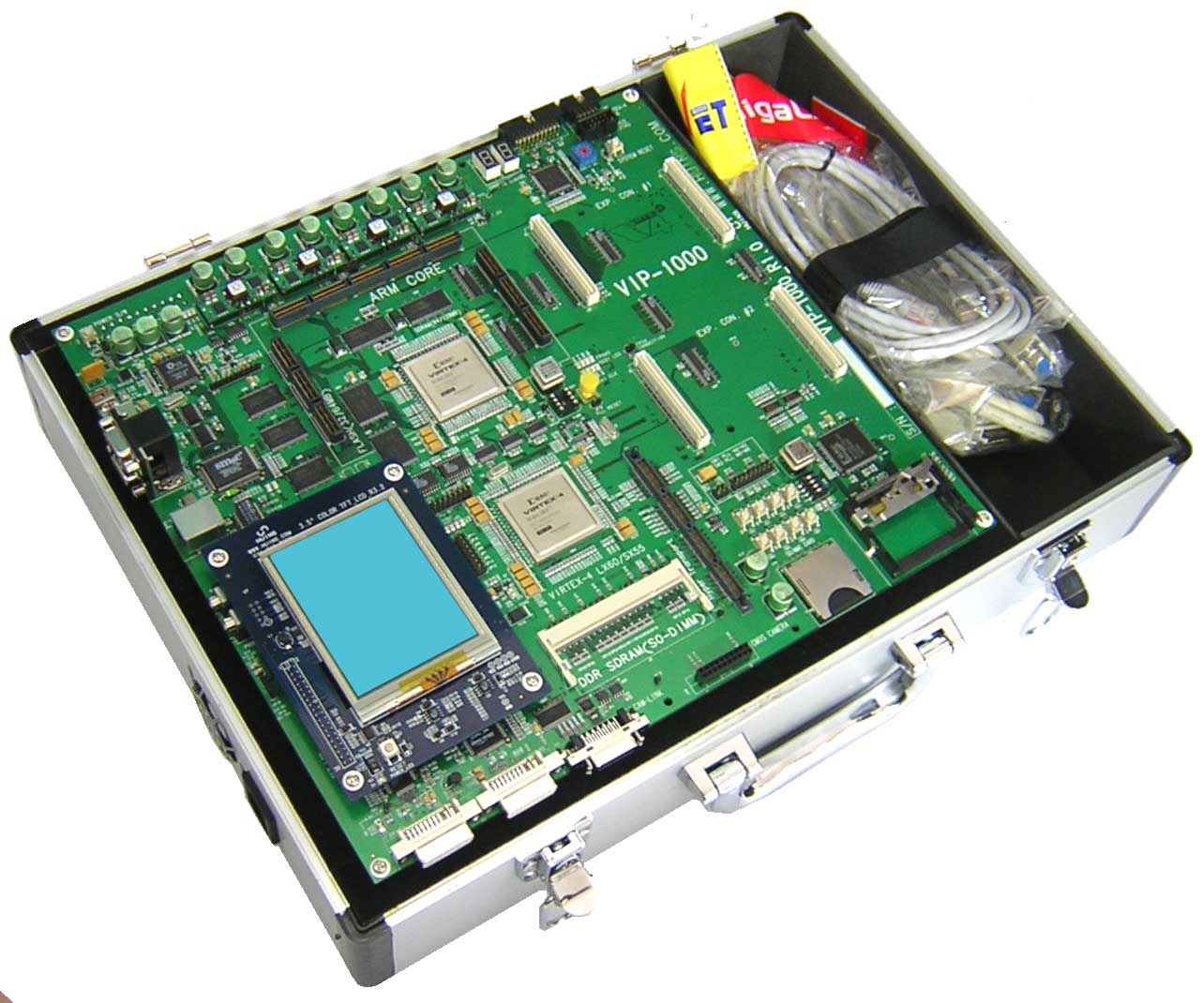

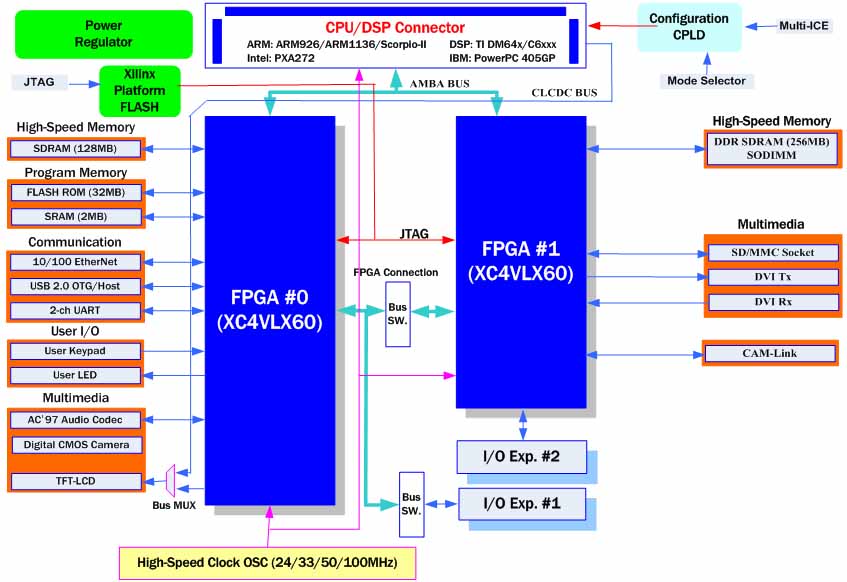

The Xilinx^®  Virtex 4 Verification IP Platform (V4IP-1000, V4IP-2000, or V4IP-5000) provides  an AMBA ^TM Multi-layer AHB environment which enables system-on-chip (SoC) developers to prototype complete systems, prove custom IP, and  develop and test device drivers for custom IP Cores . The Virtex 4 LX60 (or LX100/LX160) device is connected to ARM926EJ- S or ARM1136JF- S Core Tile and may be stacked to provide additional capacity. High performance and high pin-count interconnect allows large design prototyping.

The Xilinx Virtex 4 Verification IP Platform can be used for HW/SW Co-design and verification IP Cores such as MPEG4, H.264, Audio Code 97, CMOS Image Sensor, Color TFT LCD, USB 2.0 , and more.

ARM926EJ-S, ARM 1136 Core Tiles

The Core Tile for ARM926EJ-S / ARM1136JF-S contains an ARM926EJ-S/ARM1136JF-S processor inside a test chip. The processor’s configuration signals and a multiplexed AHB bus are connected to the board’s headers, so that systems based on this core can be easily prototyped. These boards can be stacked together to implement complex custom systems. The CPU core frequency can be adjusted up to 200MHz, but the maximum frequency depends upon the test-chip fitted. Core Tiles can not be used stand-alone.

• ARM926EJ-S/ARM1136JF-S processor test chip
• AMBA AHB Bus HDR X/HDR Y/HDR Z
• High density stacking connectors
• JTAG connection for processor run control and debug
• Mictor connectors for Trace equipment
• ARM926EJ-S/ARM1136JF-S

Xilinx FPGA
ISE Design Tool


Xilinx PlanAhed

                                                                                      Xilinx Virtex-4 LX Product Table
