Xilinx Virtex™ - 5 LX110 LX330 PCI / PCI X Development Board

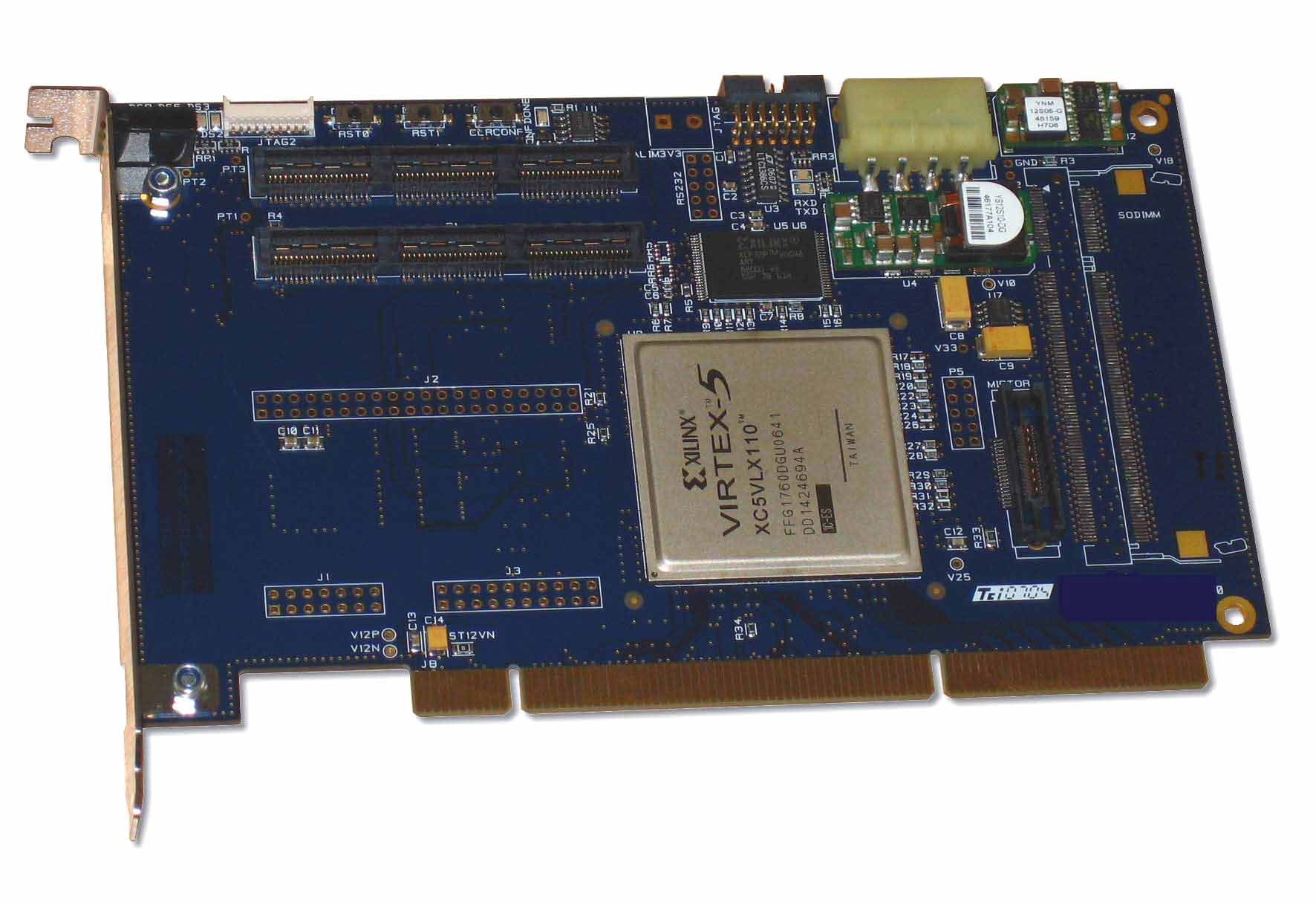

The PCIXSYS-V5 board is powered by Xilinx Virtex 5 LX110 (110,592 logic cells) FPGA.  This  development board is shipped with free encrypted PCI (64-bit)/PCIX ( 66/133 ) IP core.

The PCIXSYS-V5 board is stackable via a daughter card connected to the high-speed Samtec connectors (20 LVDS Rx/ Tx, 100 LVCMOS)This creates a multi FPGA platform for ASIC prototyping, parallel processing, and applications with high data throughput.





Xilinx FPGA
ISE Design Tool




Xilinx PlanAhed




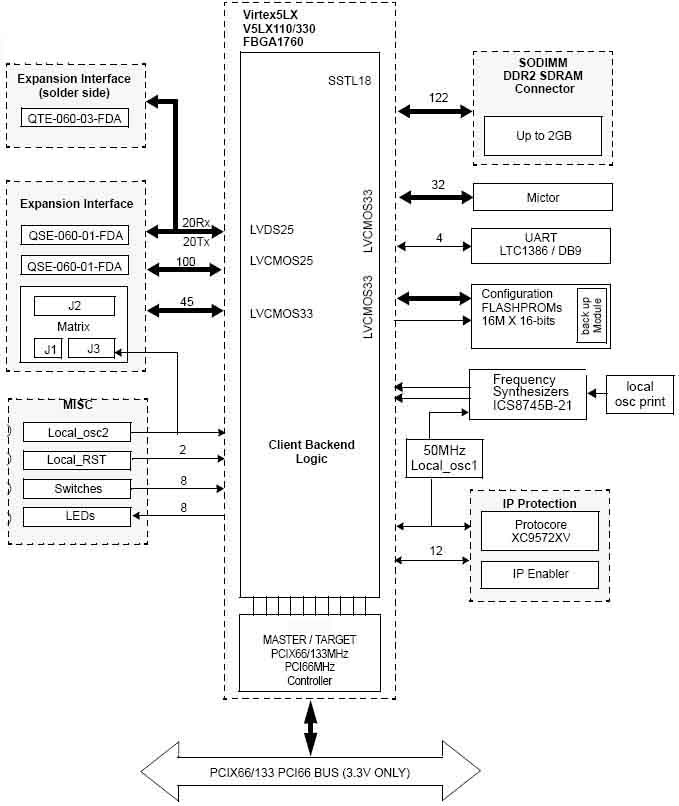

Features:

• Xilinx XC5VLX110-FF1760 or  XC5VLX330-FF1760
• Includes FREE IP controller for PCI-X / PCI

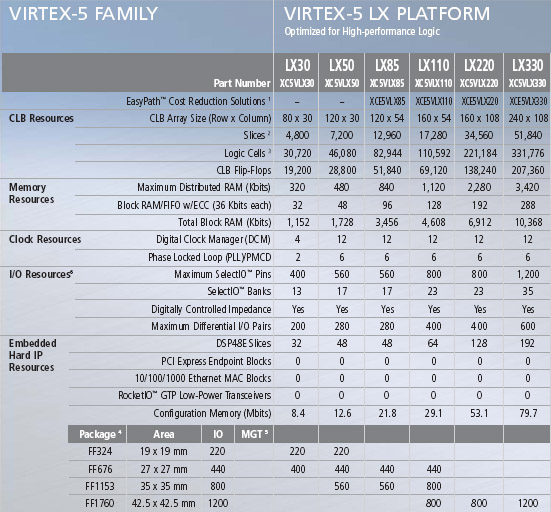

• Up to 330K Logic Cells
• 64-bit PCI/ PCI-X 66/133 MHz male connector (3.3V)
• 1 SO-DIMM DDR2 SDRAM connector (up to 2 GB)
• 2 frequency synthesizers (31.25 to 700 MHz)
• 34-bit MICTOR Probe
• BPI configuration Flash PROM
• RS232, LED, switches, …
• 250+ I/O including LVDS, LVTTL/ LVCMOS, …
• High Speed Interface (20 LVDS Rx/ Tx, 100 LVCMOS):
permits the extension of board capabilities with various daughter cards:
     o Breadboard
     o Full CameraLink
     o Ethernet
     o USB
• Two (or more) PCIXSYS V5 are stackable via a simple daughter card

 - Deliverables:

• PCIXSYS V5 prototyping board
• Configurable PCI-X / PCI IP Core Protocoreฎ (a full featured, unlimited use,
   RTL level license valid for  the board)
• Reference Design
• Software Development Kit (eval.)
• Complete technical documentation
• Technical support and maintenance

- Part Numbers & Prices:

PCIXSYS-V5-110 : $5,000   (Populated with XC5VLX110-11FFG1760)

PCIXSYS-V5-330 : $7,500  (Populated with XC5VLX330-11FFG1760)

PCI-X Windows & Linux Drivers

- Option Modules:

The optional Camera Link Module provides access to Base, Medium, and Full Camera Link interfaces and to all the signals provided by the Camera Link devices (up to 10 taps of 8 bits).

Part Number: KLINK-SYS
Price: $390



The High Speed Interface bread board offers access to 100 signals from the SAMTEC connector through the HE10 connector.  600 holes (254mm step) are available for prototyping purposes.

Part Number: BB-HSI
Price: $290
