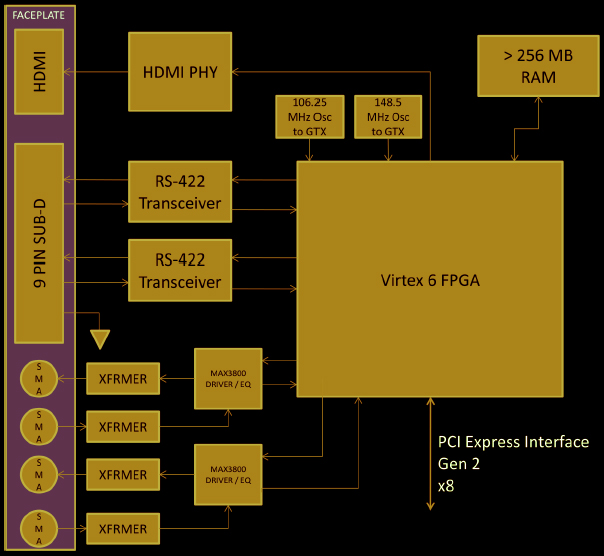

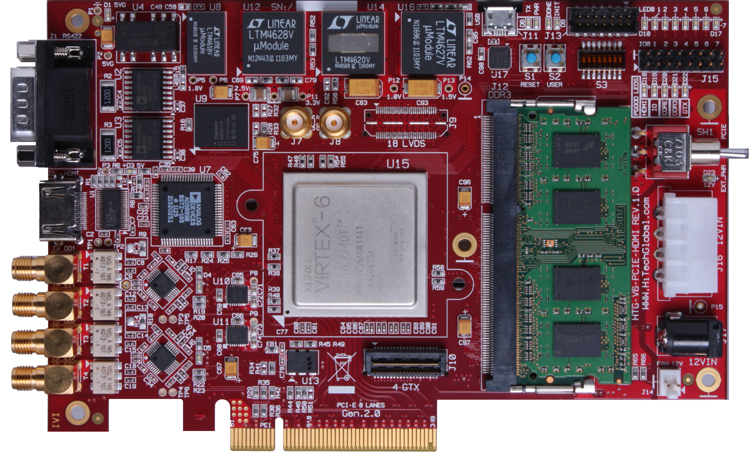

Virtex 6 HDMI / PCI Express board

►8-Lane PCIE Express Gen2
►DDR3 SODIMM up to 8GB (shipped with 1GB)
►RS-422 Input
    -One input receive s30 Hz synchronization signal, w/ 120 ohm line to
     line termination
   -One input receives a 2.08 MHz communications interface, w/ 120 line to
     line termination
►RS-422 Output
    -One output generates 30 Hz synchronization signal
    -One output generates a 2.08 MHz communications interface
►HDMI with resolutions up to 1920x1080,60i format
►Two high-speed serial outputs
    - Female SMA coaxial connectors with Independently configurable
      data output rates, capability to run transmitters from two separate
      oscillator frequencies
►Two high-speed serial inputs
    - Female SMA coaxial connectors Independently configurable data
      input rates, capability to run receivers from two separate oscillators,
      also configurable independently of the two transmitters above
►Expansion connectors for eight serial I/O ports
     - Designed for stackable connection between two boards
►Expansion connectors for sixteen pairs of LVDS I/Os
    - Designed for stackable connection between two boards
►USB to UART
►Configuration through Jtag or 256Mb BPI Flash
► 6.6" x 4.25"
►Independent Stand-Alone and PCI Express modes
