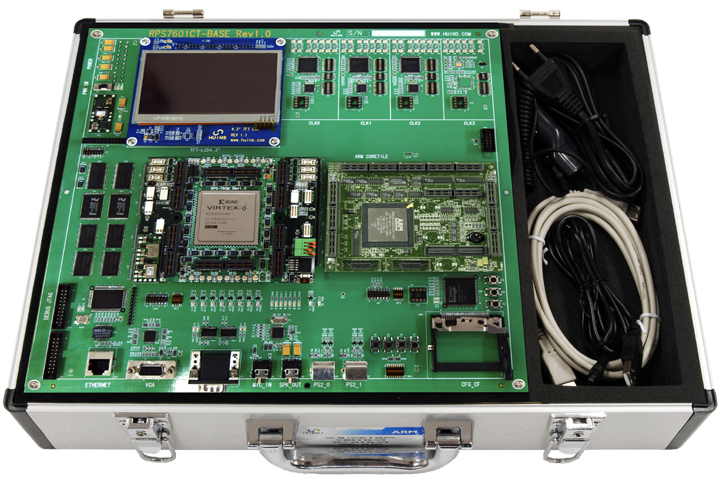

Virtex-6 ASIC SOC Prototyping Board With ARM Processors








l

Powered by Xilinx Virtex-6 LX760 FPGA, this platform is ideal for SOC/ASIC prototyping and emulation. The standard ARM Core Tile interface along with AMBA Multi-layer AHB environment hosts series of off-the-shelf ARM processor modules (ARM926/1136, etc.).



 In addition to the on-board peripherals (SRAM, SDRAM, NOR Flash, Ethernet, UART, PS2, TFT-LCD, AC97), this platform is supported by series of add-on modules as shown below:

Item

Specification

CON 1X1

1 connector for stackable height

CON 2X1

2 interconnect for 2 horizontal connector

CON 1X2

2 interconnect for 2 vertical connector

PROBE HEADER

HEADER CONNECTORs for Probing (1 Connector use / 40 header * 4)

PROBE MICTOR

MICTOR CONNECTORs for Probing  ( 1Connector use/ MICTOR Connector * 4)

32MB NorFLASH

32MB Nor Flash ( 1Connector use / Datawidth : 32bit)

64MB SDRAM

64MB 32bit Mobile SDR SDRAM Module ( 1Connector use/Data width : 32bit)

128MB DDR SDRAM

128MB 32bit Mobile DDR SDRAM Module ( 1Connector use/Datawidth : 32bit)

DDR2 SO-DIMM

DDR2 SO-DIMM for DDR2 SDRAM (2 connectors use /Data width : 64bit)

DDR3 SO-DIMM

DDR3 SO-DIMM for DDR3 SDRAM (2 connectors use/ Data width : 64bit)

UART/USB2.0

2 UART port, USB High-speed GPIF(CY7C68013A) ( 1Connector use)

Gigabit Ethernet Phy

Gigabit Ethernet Phy(M88E111) ( 1Connector use)

PCI Express Phy

PCI Express Phy 1Lane(PX1011) ( 1Connector use)

Features:

Item

Specification

FPGA

Xilinx Virtex-6 XC6VLX760-1C FF1760 1ea

Main Clock Source

ISPCLK5620AV *3ea (1~340MHz)

IDT5T9310 * 1ea(31.25~700MHz)

Reference Clock

3 PLL(ICS8402) : 16 ~ 340MHz

1 PLL(IDT84329B) : 31.25~700MHz

Clock Connector

▪ 4 Differential/4 Single-Ended Clock In/out Connectors 8ea(FPGA Module)

▪ 4 Differential/4 Single-Ended Clock out Connectors 8ea(FPGA Module)

▪ 4 Differential/4 Single-Ended Ext. Reference Clock In Connectors (Baseboard)

▪ 3 Differential/3 Single-Ended Feedback Clock In Connectors (Baseboard)

▪ 5 Differential  / 5 Single-Ended Clock Out Connectors (Baseboard)

▪ 5 Differential Clock Out Connectors (Baseboard)

Tile Connector

- X : 144pins

- Z : 64Pins

- CLK/RST : 2 / 2

Peripheral

- Flash(32MB/32bit)

- AsyncSRAM(2MB/32bit)

- SDRAM(64MB/32bit)

- Ethernet(SMSC91C111)

- TFT-LCD(16bit,RGB565,272x480/800x480)

- UART 2ports

- PS/2 2ports

- AC97(CS4202)

- User-LED(8ea)

- User-DipSW(8pins)

- User-PBSW(8ea)

- GPIO(20pins)

Configuration JTAG

On Board SystemACE/JTAG

Power

ATX 400W Power Supply

ETC Regulator

2.5V/5A Regulator

3.3V/5A Regulator

FPGA Vcco Regulator Modules

9 Vcco Regions

2.5V/1.8V/1.5V/1.2V
Ordering information

Part Number: HTG-V6-RPS760-CT
Price: Contact Us
