Xilinx Virtex™ 6 DSP Development Board








l

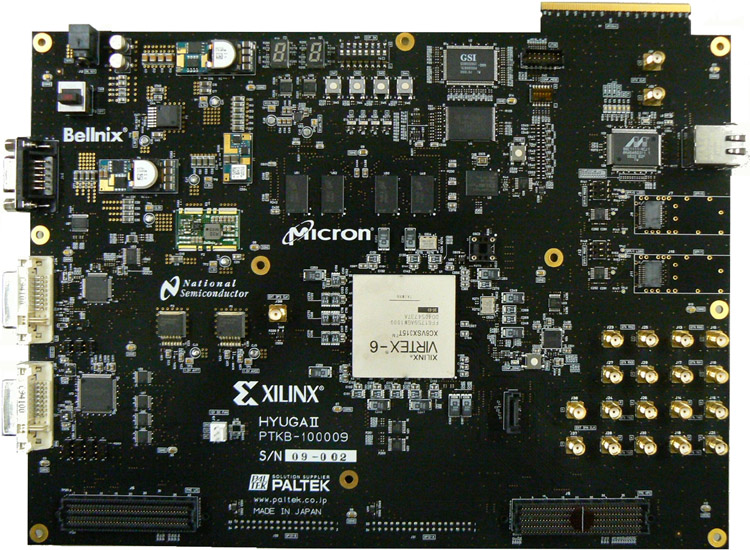

This high-end Virtex-6 FPGA development board provides access to 4 Serial Rapid IO lanes (x4 GTX serial transceivers), 2 SFP, 16 SMA, 2 DVI (in/out), UART, 1 Ethernet (with SGMII support), and 2 FMC (HPC and LPC) connectors.

The FMC connectors along with FMC daughter cards expand functionality of the board for different applications.

The board is also supported by total of 512MB DDR3, 1MB SSRM, 48MB Flash memory.



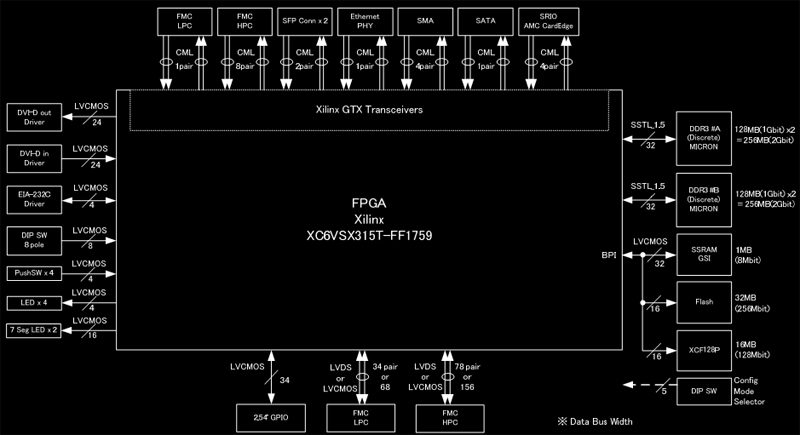

Features:

・Xilinx Virtex-6 FPGA XC6VSX315T-FF1759 or  XC6VSX475T-FF1759
・AMC edge connector with 4 SRIO (Serial Rapid I/O) lanes
・Two SFP connectors
・Four 5Gbps GTX ports using 16 SMA connectors
・One SATA connector
・One 1000/100/10 Ethernet connector (with SGMII support)
・One FMC  (HPC) connector with 156 single ended (or 78 LVDS) IOs and 8 GTX serial transceivers
・One FMC  (LPC) connector with 68 single ended (or 34 LVDS) IOs and 1GTX serial transceiver
・One DVI-D IN/OUT
・512MV DDR3 SDRAM
・1MB SSRAM
・High speed SSRAM
・Flash ROM (32MB + 16MB)
・One RS-232C connector
・Size220.00mm×300.00mm

Ordering information

Part Number: HTG-V6-DSP
Price: Contact Us

Accessories & Tools


FMC daughter card with one CX4, two SATA, and two SMA ports (interfacing to total of 8 serial transceivers). Each port has its own on-board dedicated clock for maximum flexibility and ease of use.
Part Number:
HTG-FMC-CX4-SATA-SMA
Price: $545.00
FMC daughter card with two SFP+ connectors, two 10Gbps physical layer transceivers which provide full PCS, PMA, and XGXS sub-layer functionality

Part Number:
HTG-FMC-SFP-PLUS
Price:$895
FMC daughter card with two CX4 connectors providing access to two 10Gig ports



Part Number:
 HTG-FMC-X2CX4
Price: $595
FMC daughter card with 4-Channel 16-bit AD/DA (160 MSPS)




Part Number:
 FMC-AD-DA-16
Price: $1,795

FMC daughter card with four SFP and four SATA connectors.

Part Number:
HTG-FMC-X4SFP-X4STA
Price:$695
FMC daughter card with 32 SMA connectors for 8 serial transceiver ports, two SMA connectors for external clock, and on-board super clocks

Part Number:
HTG-FMC-X8SMA
Price:$795
