Xilinx Virtex-6 LX760 Emulation Platform






l

 Powered by 4 ~ 8 Xilinx Virtex-6 LX760 FPGAs and designed for maximum performance, this is an ideal platform for ASIC/SOC prototyping and H/W & S/W co verification. The base board is designed to provide the main power and host up to eight  LX760 FPGA modules through four Core Tile connectors. These Core Tile connectors can be used for combination of LX760 FPGA and off-the-shelf ARM Core Tile Modules. This architecture provides great level of flexibility for rapid expansion of the platform for different densities and applications. The platform is supported by series of add-on modules such as DDR2/DDR3 SO-DIMM, Gigabit Ethernet, PCI Express PHY, USB 2.0, and Mictor.


LX760 FPGA Module


Features:

Base board

►Four Core Tile Connector hosting FPGA modules or/and ARM Core Tile Processor Modules
►Power Modules supplying power for different rails
►FPGA JTAG Connector
►ARM Processor JTAG Connector
►SystemACE for FPGA configuration
►Total 4 clock sources : 16~340MHz Clock Generator 3ea, 31.25~700MHz 1ea
►Clock connectors
▪ 4 Differential/4 Single-Ended Clock In/out Connectors 8ea(FPGA Module)
▪ 4 Differential/4 Single-Ended Clock out Connectors 8ea(FPGA Module)
▪ 4 Differential/4 Single-Ended Ext. Reference Clock In Connectors (Baseboard)
▪ 3 Differential/3 Single-Ended Feedback Clock In Connectors baseboard)
▪ 2 Differential / 2 Single-Ended Clock Out Connectors (Baseboad)
▪ 2 Differential Clock Out Connectors (Baseboard)
►1920 I/Os : 120pins Connectors 16ea (FPGA Module Upper side)
► 160 I/Os : 120pins Connector 1ea(FPGA Module Upper side)
►480 I/Os : 120pins Connectors 4ea (Base Board side)

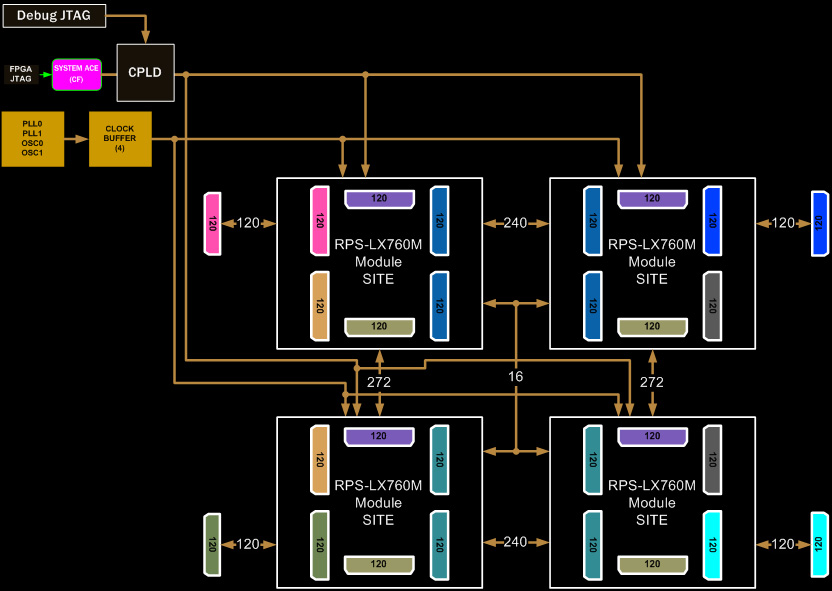

►FPGA Interconnection
▪ A↔B : 272, C↔D : 272 signals
▪ A↔C : 240, B↔D : 240
▪ A↔B↔C↔D : 16

 FPGA Module

► Xilinx Virtex-6 XC6VLX760-1FF1760
►Input Clock : 4 LVDS lines (From Baseboard)
►Clock Connectors : input 8ea, output 8ea(MHF type)
►Total I/O : 1160 ea
▪ 120pins x 8ea (C1U,C1L, C2U, C2L , C3U, C3L , C4U, C4L)
▪ C5UL(12), C5U(40), C5L(40), C6(108)
►Core Regulator 1, VCCO Regulator 2
►9 IO Voltage Region
►JTAG Chain from Baseboard

Ordering information

Part Number:

HTG-V6-RPS760-4 (base board with four FPGA modules)
Price: Contact us

HTG-LX760-MDL (LX760 FPGA add-on module)
Price: Contact us
