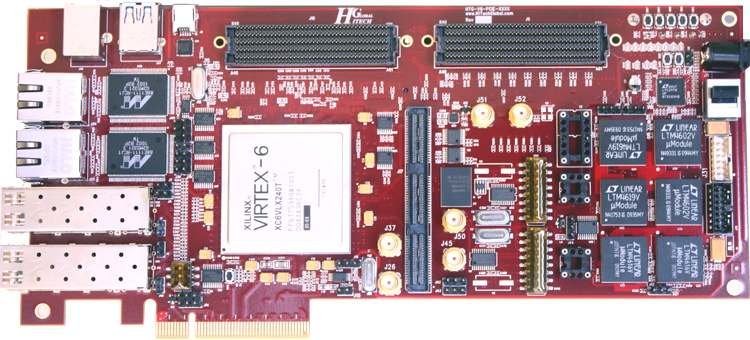

Xilinx Virtex™ 6 PCI Express Gen 2 / SFP+ / USB 3.0  Development Board

Designed for high-performance and high-density applications,  the HTG-V6-PCIE series are supported by Xilinx Virtex-6 LX550T, LX240T, LX365T, SX475T or SX315T FPGAs.  To expand functional capability and provide more flexibility,  the HTG-V6-PCIE series are designed  for operation in x8/x4/x1 PCI Express Gen 1, Gen 2 or stand alone mode.

The HTG-V6-PCIE series are supported by wide range of industry standard connectors and interfaces including ; 8-lane PCI Express Gen2,  Gigabit Ethernet (10/100/1000),  SMA (connected to two Virtex-6 GTX serial transceivers & external clock),  USB 2.0/3.0 Host, USB 2.0/3.0 Device, SFP, DDR3, and Vita-57 FPGA Mezzanine Connectors.

The expansion connectors provide access to up to 448 parallel IOs and 20 serial  GTX  transceivers of the on-board Virtex-6 device. The FMC connector can host off-the-shelf Vita-57 modules as well those developed by HiTech Global. Interfaces such as Single / Dual CX4, Dual / Quad SATA, Quad SFP, Dual / Quad SFP+ (20Gbps/40Gbps), and RJ45 are supported by the HiTech Global FMC modules. The HG-FMC-760 Virtex-6 FPGA module is also available for providing additional logic gates.

To protect intellectual properties running on the Virtex-6 FPGA, the board is supported by an "IP Protection" chipset.

Supported Virtex-6 devices:

   XC6VLX240T    XC6VLX365T   XC6VLX550T XC6VSX475T  XC6VSX315T
Slices  37,680    56,880   85,920 74,400  49,200
Logic Cells  241,152    364,032   549,888 476,160  314,880
CLB Flip-Flops  301,440    455,040   687,360 595,200  393,600
Maximum Distributed RAM (Kbits)  3,650    4,130   6,200 7,640  5,090
Block RAM/FIFO w/ ECC (36Kbits each)  416    416   632 1,064  704
Total Block RAM (Kbits)  14,976    14,976   22,752 38,304  25,344
Mixed Mode Clock Managers (MMCM)  12    12   18 18  12
Maximum Single-Ended I/O  720    720   1200 840  720
Maximum Differential I/O Pairs  360    360   600 420  360
DSP48E1 Slices  768    576   864 2,016  1,344
PCI Express® Interface Blocks  2    2   2 2  2
10/100/1000 Ethernet MAC Blocks  4    4   4 4  4
GTX Low-Power Transceivers  24    24   36 36  24
Commercial  -L1, -1, -2, -3    -L1, -1, -2, -3   -L1, -1, -2 -L1, -1, -2  -L1, -1, -2, -3
Configuration Memory (Mbits)  70.4    91.6   137.4 149.4  99.6












** DDR3 SO-DIMM is installed on the reverse side

Image Gallery

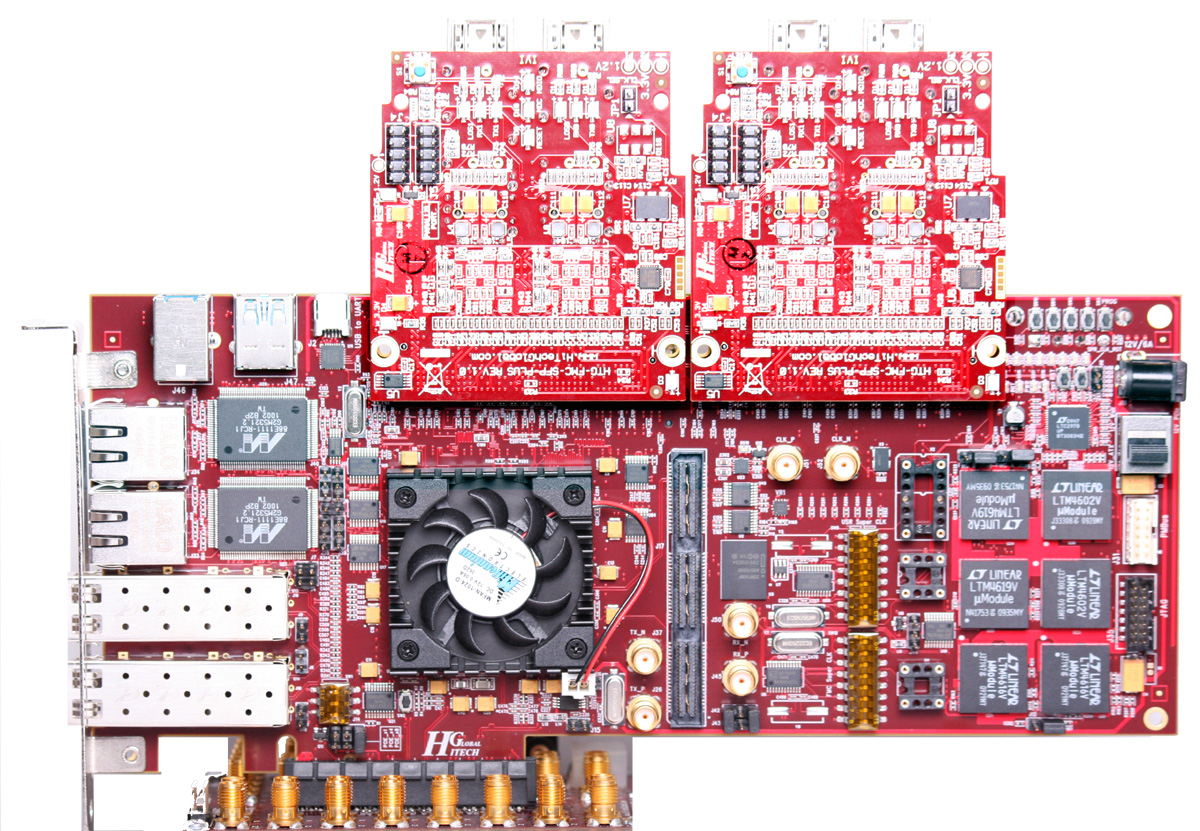

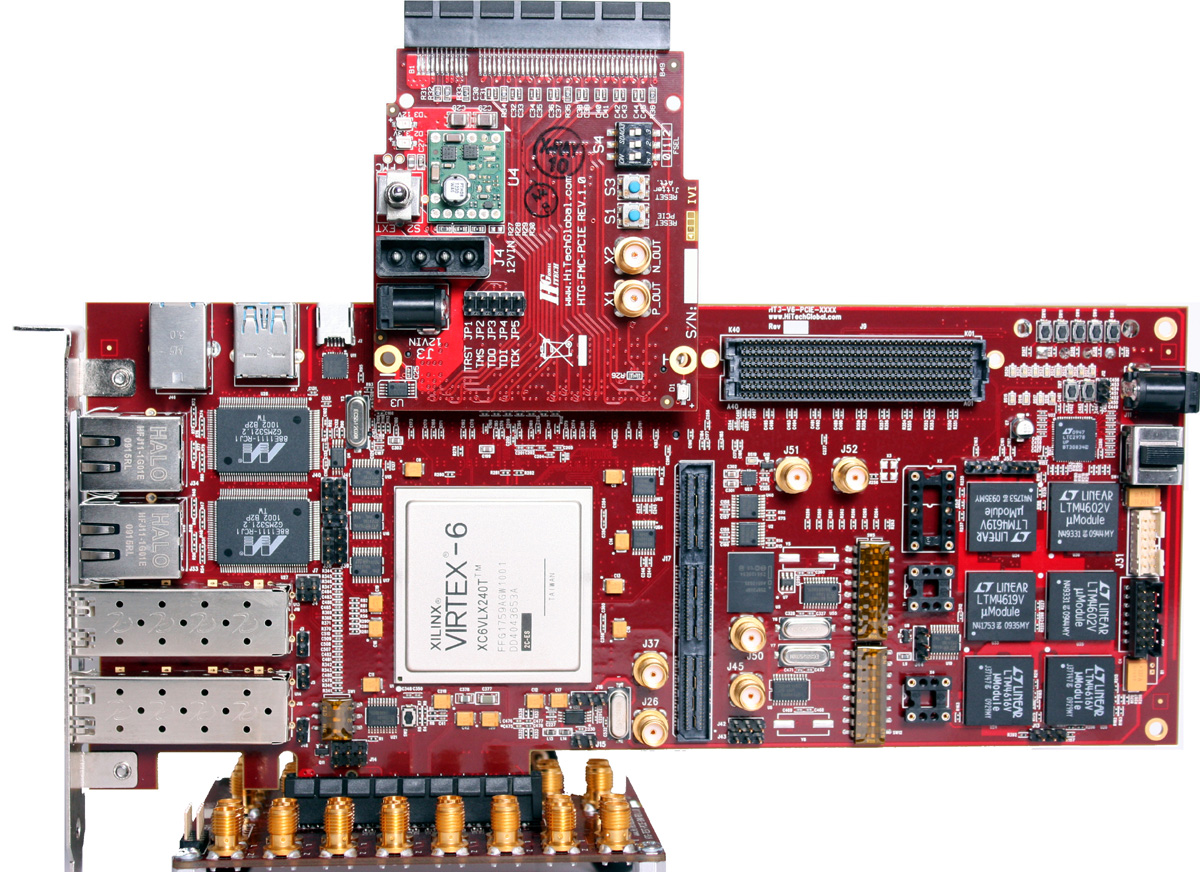

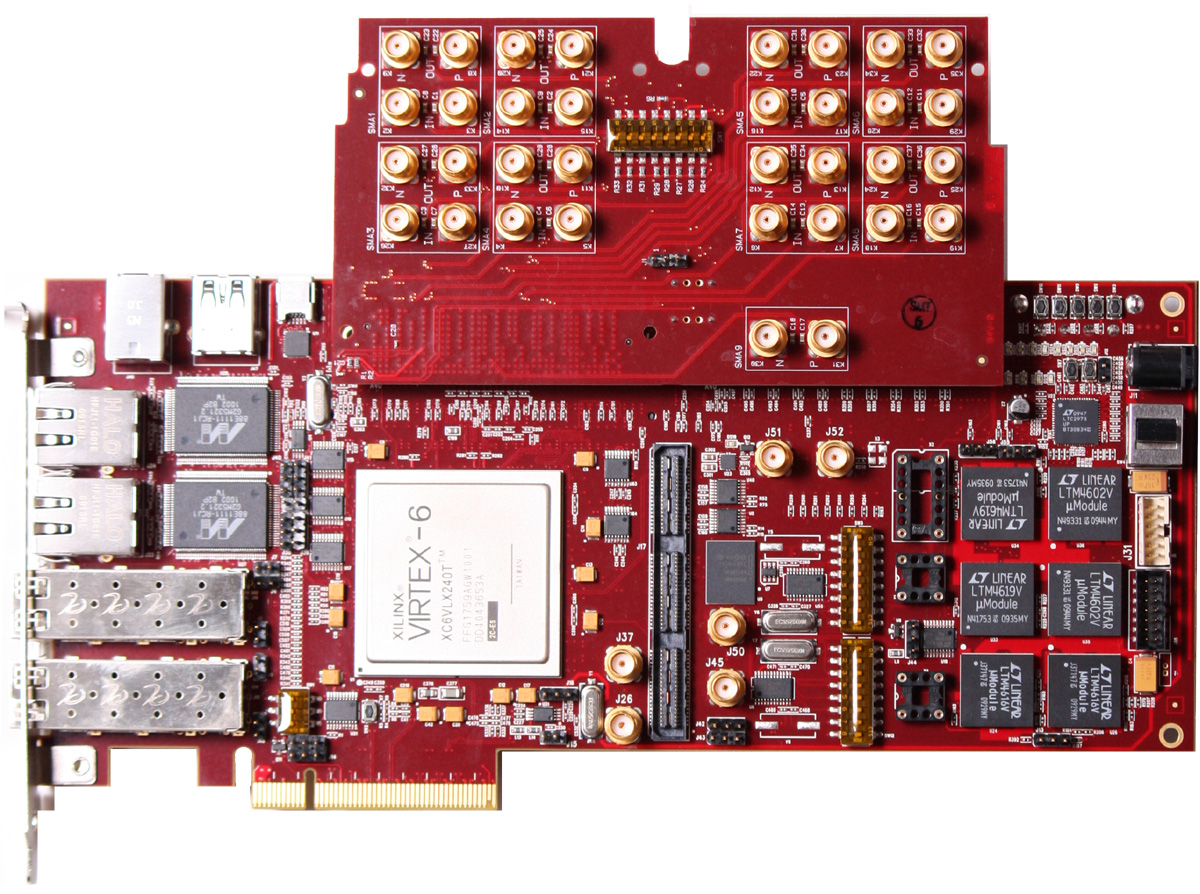

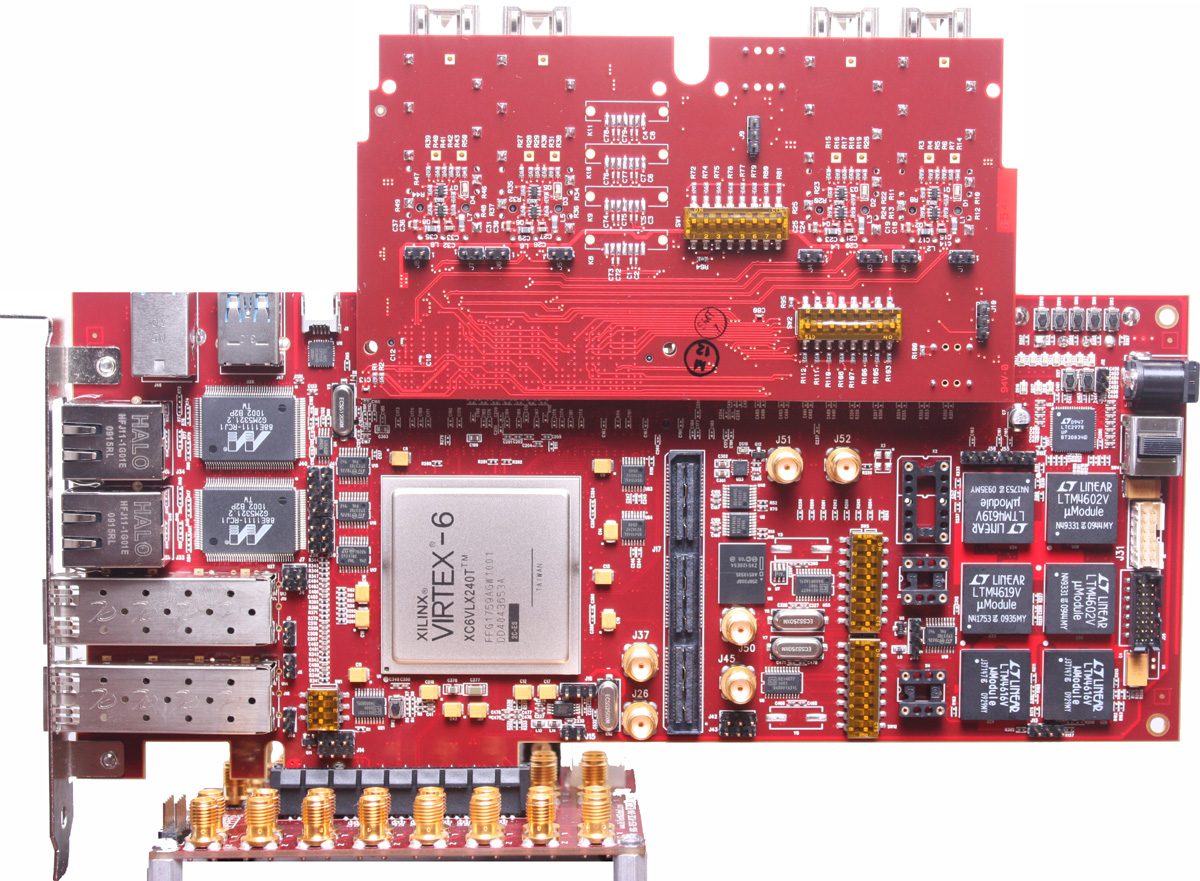

►PCIe Mode with 8 SMA ports      ►PCIe Mode with 4 SFP+ Ports (40G)       ►PCIe Mode with 1 Root Port               ►PCIe Mode with 4 SATA & 4 SFP ports

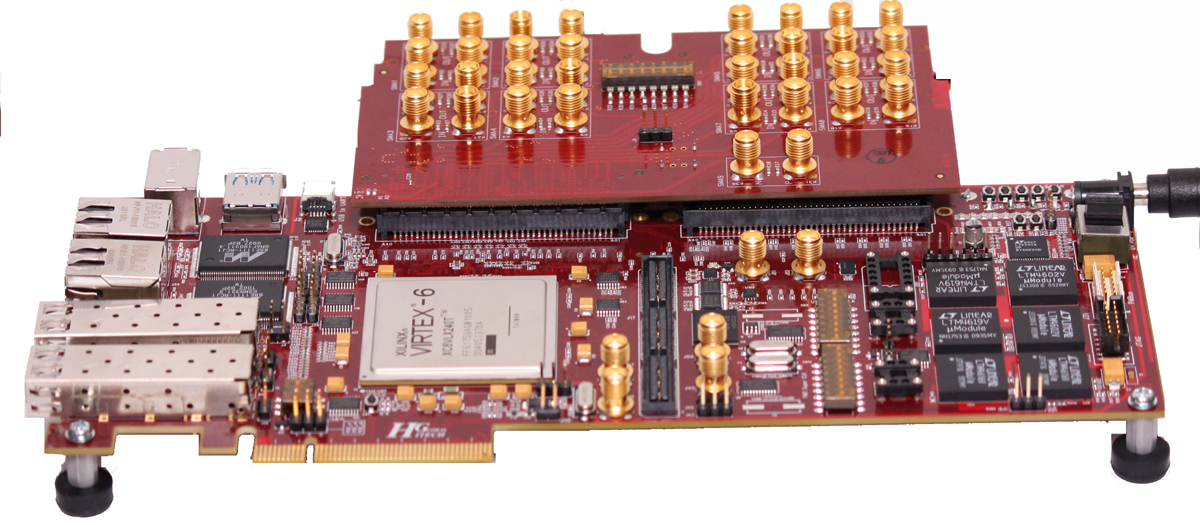

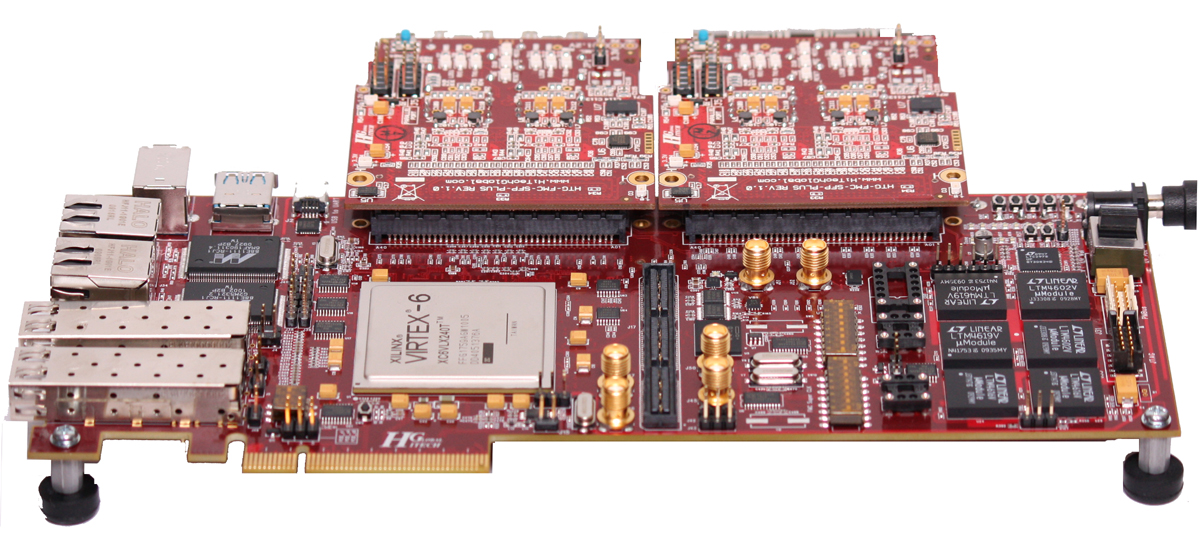

►Stand Alone Mode with 8 SMA ports              ►Stand Alone Mode with 4 SFP+ Ports (40G)

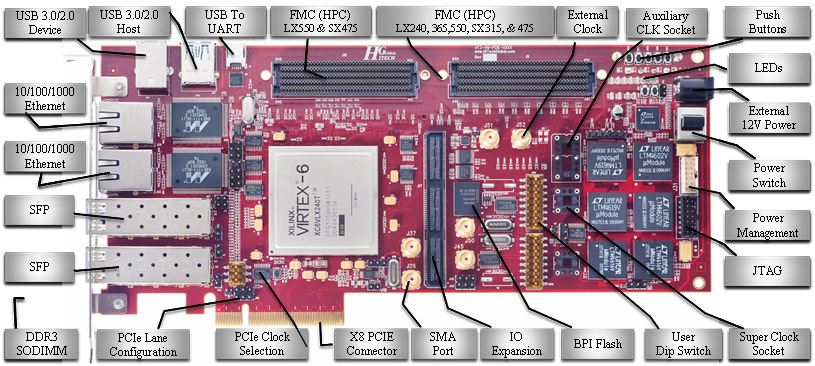

►Features:

▪ Xilinx Virtex 6 LX550T, LX365T, LX240T, SX475T, or SX315T in different speed grades
▪ x8 PCI Express Gen 2 Edge Connector
▪ PCI Express Jitter  Attenuator for cleaning PC clock and generating different PCIe clocks (100MHz, 250MHz, etc.)
▪ DDR3 SO-DIMM (up to 8GB)
▪ One USB 2.0 & 3.0 Host port
▪ One USB 2.0 & 3.0 Device port
▪ Two SFP ports (4 additional SFP and two SFP+ connectors are available through HTG-FMC-4SFP-4SATA and HTG-FMC-SFP-PLUS modules)
▪ Four SMA connectors for one GTX serial transceiver port (8 additional SMA ports are available through HTG-FMC-8SMA module)
▪ Two SMA connectors for  external differential clock
▪ Two 10/100/1000 Ethernet ports with SGMII, RGMII, and GMII support using Marvell 88E111 PHY (4 additional SGMII ports are available through HTG-FMC-RJ45 module)
▪ FMC Vita 57 compliant Connectors with :
   - Connecter #1:
         160 Single Ended IOs (or 80 LVDS), & ten  Data-Rate-Adjustable GTX transceivers with the LX550T, LX365T, LX240T, SX475T, or SX315T models
   - Connecter #2:
         126 Single Ended IOs (or 63 LVDS) with the  LX365T, LX240T,  or SX315T models
         160 Single Ended IOs (or 80 LVDS), & ten Data-Rate-Adjustable GTX transceivers with the LX550 and SX475 models
▪ Auxiliary FMC Super Clock for board-to-board communication
▪ Samtec QSE High-speed connectors with 32 pairs of LVDS IOs
▪ IP Protection Chipset
▪ Power Management Bus for all voltage rails
▪ Size: 9.5" x 4.25"
▪ Support for both PCI Express and stand alone operation modes
▪ Standard ATX and wall power supply connectors

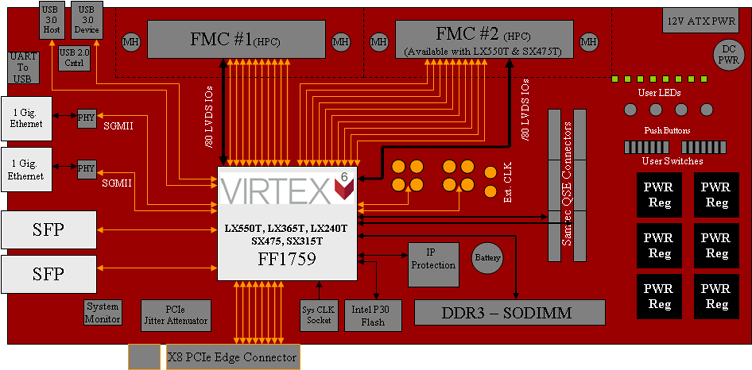

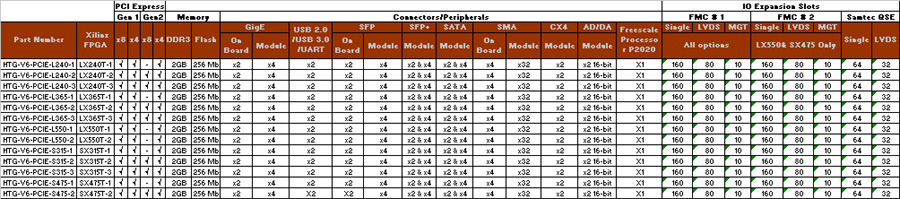

Summary of options and features:


                                                                                          Larger Image

► Part Number & Price:

- HTG-V6-PCIE-L240-1 (with XC6VLX240T-1FFG1759 FPGA) - Contact us
- HTG-V6-PCIE-L240-2 (with XC6VLX240T-2FFG1759 FPGA) - $2,995 (Buy online)
- HTG-V6-PCIE-L240-3 (with XC6VLX240T-3FFG1759 FPGA) - Contact us

- HTG-V6-PCIE-L365-1 (with XC6VLX365T-1FFG1759 FPGA) - Contact us
- HTG-V6-PCIE-L365-2 (with XC6VLX365T-2FFG1759 FPGA) - Contact us
- HTG-V6-PCIE-L365-3 (with XC6VLX365T-3FFG1759 FPGA) - Contact us

- HTG-V6-PCIE-L550-1 (with XC6VLX550T-1FFG1759 FPGA) - Contact us
- HTG-V6-PCIE-L550-2 (with XC6VLX550T-2FFG1759 FPGA) - Contact us

- HTG-V6-PCIE-S315-1 (with XC6VSX315T-1FFG1759 FPGA) - Contact us
- HTG-V6-PCIE-S315-2 (with XC6VSX315T-2FFG1759 FPGA) - Contact us
- HTG-V6-PCIE-S315-3 (with XC6VSX315T-3FFG1759 FPGA) - Contact us

- HTG-V6-PCIE-S475-1 (with XC6VSX475T-1FFG1759 FPGA) - Contact us
- HTG-V6-PCIE-S475-2 (with XC6VSX475T-2FFG1759 FPGA) - Contact us

►Software:

-  PCI Express Driver Source Code (C) - Windows XP or Linux
- PCI Express Back End (High Performance DMA Engine)

 ►Kit Content:

- HTG-V6-PCIE Board
- Free high performance  DDR3 Memory Controller
- Xilinx ISE® Design Suite : Logic Edition (Device-locked to the Virtex-6
LX240T-2 FPGA)

- CD ROM with User Manual, Schematics (in searchable pdf format) , Software Drivers (eval.), PCI Express Gen 2 back-end (DMA) reference demo, PCI Express Gen 2 CoreGen PIO design , DDR3 controller, and ChipScope PRO IBERT reference/test designs (for GTX serial transceivers)



Accessories & Tools


FMC daughter card with  one QSFP+ and two SFP+ connectors with default clocks for CPRI/OBSAI (other clocks can also be supported)
Part Number:
HTG-FMC-SFP-OC
Price:$795
FMC daughter card with two SFP+ connectors, two 10Gbps physical layer transceivers which provide full PCS, PMA, and XGXS sub-layer functionality


Part Number:
HTG-FMC-SFP-PLUS
Price:$895


FMC daughter card with two CX4/Infiniband connectors providing access to two 10Gig ports



Part Number:
 HTG-FMC-2CX4
Price: $595
FMC daughter card with one CX4, two SATA, and two SMA ports




Part Number:
HTG-FMC-CX4-SATA-SMA
Price: $545
FMC daughter card with x8 PCI Express Root interface




Part Number:
 HTG-FMC-PCIE-RC
Price: $695
FMC daughter card with 8 SMA ports and pin headers providing access to 33 LVDS/66 Single-ended IOs
Part Number:
HTG-FMC-SMA-LVDS
Price: $595

FMC daughter card with four SFP/SFP+ and four SATAI/II/III connectors.

Part Number:
HTG-FMC-4SFP-4STA
Price:$695


FMC daughter card with 32 SMA connectors for 8 serial transceiver ports, two SMA connectors for external clock, and on-board super clocks

Part Number:
HTG-FMC-X8SMA
Price:$695
16-bit Dual Channel DA/AD Conversion Module
Part Number:  HTG-FMC-AD-DA-MDL
Price:$1,795
FMC to FMC Cable

Part #: FMC-TO-FMC-9 (9" length)
 FMC-TO-FMC-5
(5" length)
FPGA Programming Cable (USB)
Part #: HW-USB
 Price: $225
PCI Express Test Module & Serial IO Expander
Part Number: HTG-PCIE-TEST
Price: $695
