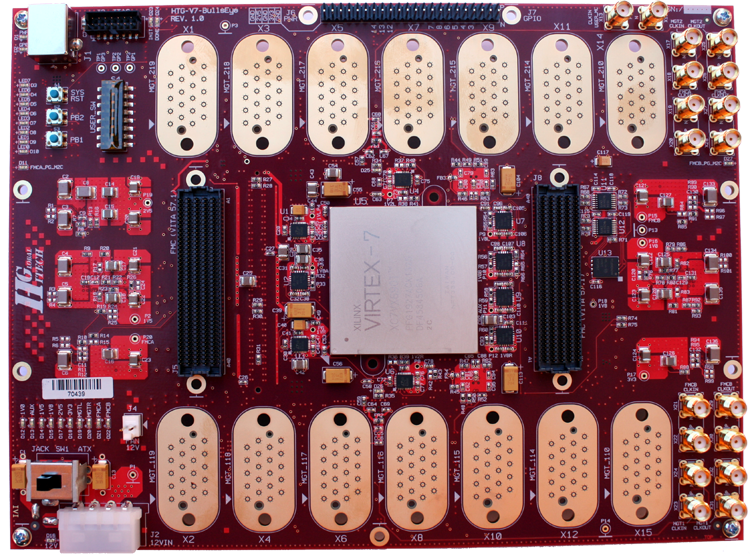

HTG-756: Virtex 7 GTX/GTH Serial Transceiver Characterization / Development Platform

The HTG-756 is an ideal platform for characterization and evaluation of up to 76 GTX (12.5Gbps) or GTH (13.1Gbps) serial transceivers of the on-board Virtex-7 V485T/550T/690T FPGA. Each GTX /GTH serial transceiver quad along with reference clocks is connected to one Samtec BullsEye connector (requires usage of ganged SMA cable). Two High Pin Count (HPC) FPGA Mezzanine Connectors (FMC) provide up to 20 GTH.GTX serial transceivers and 160 Single-ended I/Os.

Features:

►Xilinx Virtex 7 X690T with GTH or V485T with GTX Serial Transceivers
►14 Samtec BullsEye connectors providing access to :
- 56 GTH Serial Transceivers (12 quads ) in X690T FPGA
►x2 FPGA Mezzanine Connectors (FMC) with 160 single-ended I/Os and 10 GTH Serial Transceivers (total of 20)
►x1 DDR3 SODIMM socket (placed on the reversed side) supporting up to 8GB of memory - Shipped with 2GB of DDR3 SODIMM
►2x16 General Purpose IO headers
►On board Super Clock
►Configuration Flash
►x1UART/USB port

Ordering information

Part Number:
HTG-V7-BULLSEYS-690-2
HTG-V7-BULLSEYS-690-3

Price: [Contact us]
