Virtex-7  10G/40G/100G Optical Interface FPGA Platform




l

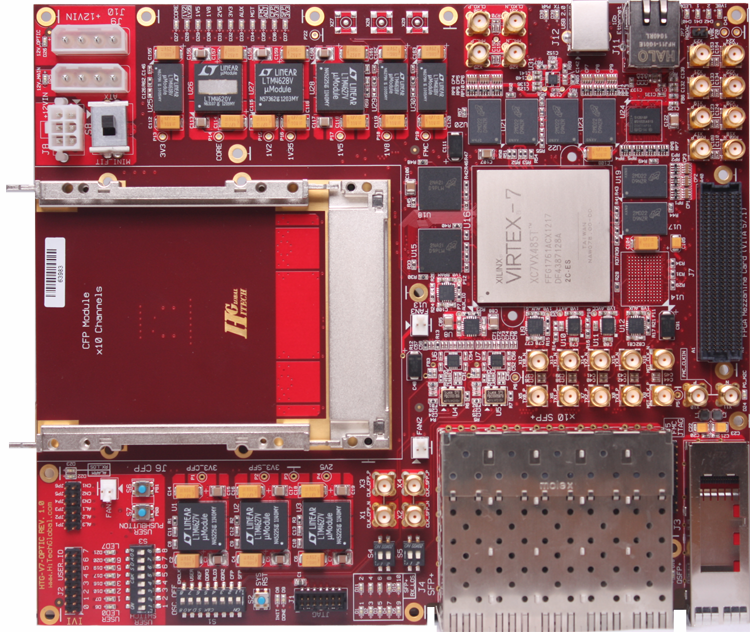

Powered by Xilinx Virtex-7 X485T, X690T, or V2000T FPGA, the HTG707 is a development platform that delivers the most fundamental functional blocks required for building 10G/40G /100G subsystems. In addition to high performance functional blocks such as high end serial interconnects (CFP, QSFP+, and SFP+), FMC (FPGA Mezzanine Connector) and memory (RLDRAM 3, DDR 3 and QDRII) interfaces, the HTG707 provides simple user interfaces for connecting to higher layer data processing via FPGA Mezzanine Connector (FMC) and CFP/SFP+/QSFP+ conversion modules.

Supported IP cores available for licensing:

Dual Mode 40G/100G Ethernet MAC and PCS
40G Ethernet MAC and PCS
1G/10G Ethernet MAC and PCS


Refernce Design Block Diagram

Features:

Xilinx Virtex-7 XC7VX485T,  XC7VX690T, or XC7V2000T
x1 CFP port (1x100Gig)
x10 SFP+ ports (10x10Gig)
x1 QSFP+ port (1x40Gig) - or x8 SFP+ ports using the QSFP+ to SFP+ conversion cables
x4 SMA ports with external clock control
DDR3 (x32) memory components
RLDRAM III memory components
QDR2 II (72 or 144mbit) memory components
x1 FMC (FPGA Mezzanine Card, Vita 57) Connector
    -  Four (X485T model) or eight (X690T and V2000T models) serial transceivers, 34 single-ended (1.8V) I/Os
x1USB / UART Port
x1 RJ45 port
Configuration Flash
Programmable Clock Generators & Synthesizers
Ordering information

Part Numbers:

HTG-V7-OPTIC-485 (populated with one Virtex-7 XC7VX485T FPGA)
HTG-V7-OPTIC-690 (populated with one Virtex-7 XC7VX690T FPGA)
HTG-V7-OPTIC-2000 (populated with one Virtex-7 XC7V2000T FPGA)
HTG-V7-OPTIC-PRO-485 (with more DDR3 memory)
HTG-V7-OPTIC--PRO-690  (with more DDR3 memory)
HTG-V7-OPTIC-PRO-2000  (with more DDR3 memory)
Price:
Contact Us

Kit Content:

HTG-V7-OPTIC platform
CD ROM with:
      - Board's User Manual
      - Schematics (in searchable pdf format)
      - 40G/100GIG Reference Demos
      - Xilinx MIG based DDR3 , and QDRII, Memory Controllers


Accessories & Tools


FMC daughter card with  one QSFP+ and two SFP+ connectors with default clocks for CPRI/OBSAI (other clocks can also be supported)
More Info...


FMC daughter card with x8 PCI Express Root interface
More Info...


FMC daughter card with two CX4/Infiniband connectors providing access to two 10Gig ports
More Info...


FMC daughter card with one CX4, two SATA, and two SMA ports
More Info...

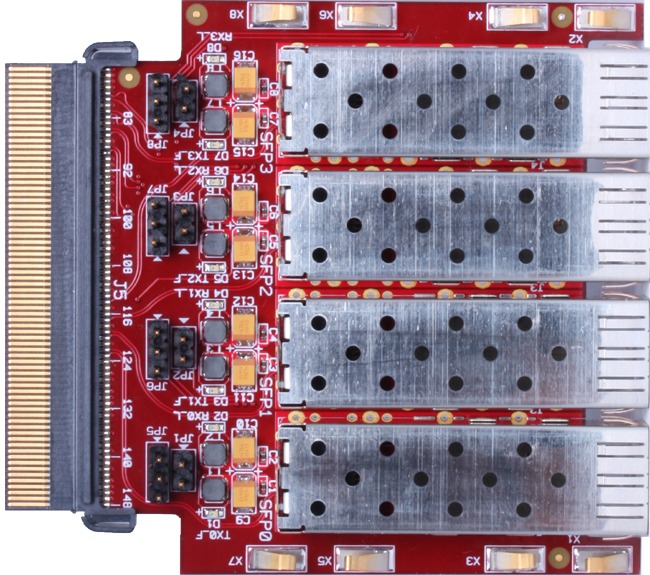

CFP2SFP+ conversion module pluggable into optical systems with 40G/100G CFP (MSA) interface
More Info...

FMC daughter card with 8 SMA ports and pin headers providing access to 33 LVDS/66 Single-ended IOs
More Info...

FMC daughter card with  four SFP+ connectors supported by programmable clock with start up value of 156.25MHz
More Info...

FMC daughter card with  Dual QSFP+  ports supported by programmable clock with set up value of 156.25MHz
More Info...


CFP To QSFP+  Conversion Module (provides two additional QSFP+ ports)
More Info...

Supports 9.95 to 10.5 Gb/s bitrates
Maximum link length of 300m on 2000 MHZ-km MMF
Uncooled 850nm VCSEL laser
10GBASE-SR/SW 10G Ethernet
1200-Mx-SN-I 10G Fibre Channel
More Info...
300m QSFP+ Optical Transceiver Compliant to the 40GbE IEEE 802.3ba-2010 specifications (40GBASE-SR4 and XLPPI) and the IEEE 802.3ae 10GBASE-SR optical specification )
More Info...






FMC to FMC Cables for board-to-board or board-to-daughter card connection
More Info...
