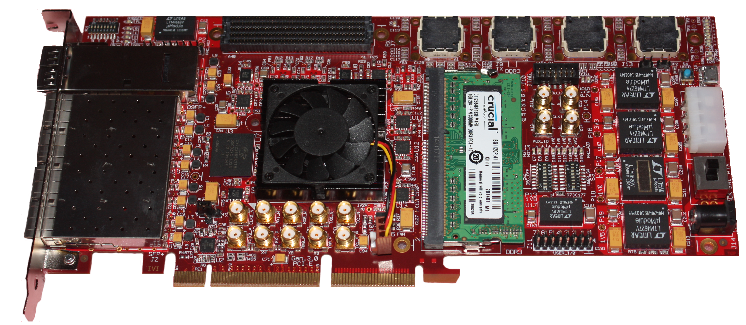

HTG-703: Virtex 7 PCI Express Gen 3 /100Gig Networking Card




















Powered by Xilinx Virtex-7 X415T, X485T, X550T, or X690T, the HTG-703 board is ideal for high performance FPGA development requiring access to 10G/40G/100G optical peripherals, high speed expansion connectors, large density memory, and high bandwidth PC interface.

The HTG-703 is supported by two Avago MiniPODô embedded optical transmitters /receivers offering unparalleled density, bandwidth, and design flexibility for board and system-level interconnect. Each port with 12 TX and RX lanes provides 120Gbps of aggregate bandwidth.

Features:

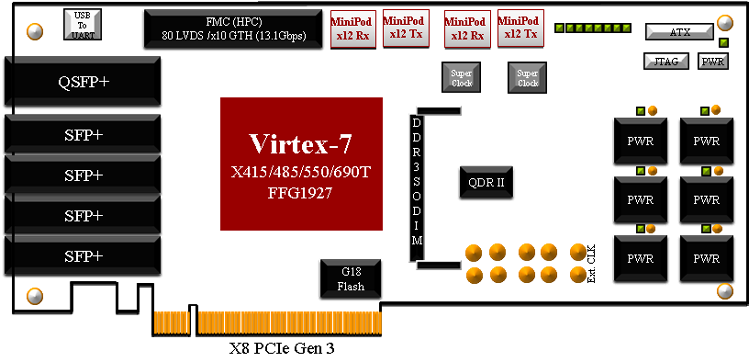

Xilinx Virtex-7 X415T, X485T, X550T, or X690T
8-Lane PCI Express Gen2/3
x1 QSFP+ (40Gig) port - or x4 SFP+ ports using the  QSFP+ to SFP+ conversion cables
x4 SFP+ (4 x 10Gig) port
x1Dual Rank DDR3 SODIMM (up to 8GB)
x1 144Mb QDRII component (4M x 36)
x1 SMA port with external clock
x1 High Pin Count (HPC) FPGA Mezzanine Connector (FMC) with 160 single-ended I/Os and 10 GTH (13.1Gbps) serial transceivers
x2 (24 Tx/Rx) Avago MiniPod optical ports (x1 port in -415 model and x2 in -690 model)
x1 USB to UART port
Fast configuration flash (1Gb)
Very low-jitter clocks
Support for both PCI Express or Stand-Alone modes
4.25" x 9.5"
Ordering information

Part Number & Price:

HTG-V7-G3-PCIE-415-2 (contact us)
HTG-V7-G3-PCIE-415-3 (contact us)
HTG-V7-G3-PCIE-690-2 (contact us)
HTG-V7-G3-PCIE-690-3 (contact us)

Avago Minipod Transmitter (AFBR-811FN1Z)
Avago MiniPod Receiver  (AFBR-821FN1Z)
