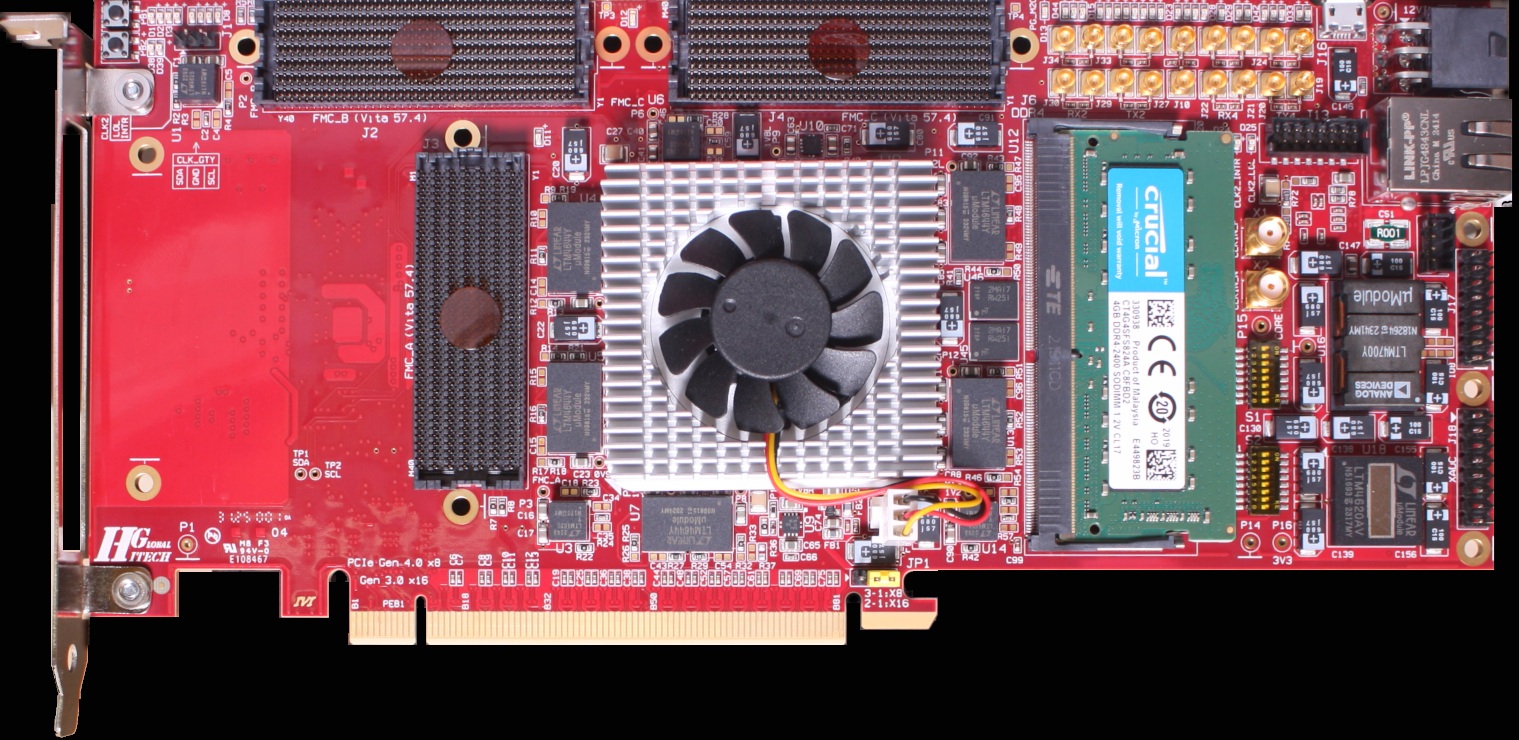

HTG-930: Virtex UltraScale+ ™ PCI Express  Development Platform



Populated with one Xilinx Virtex   UltraScale+  VU9P,  VU13P, or UltraScale VU190 FPGA, the HTG-930 provides access to wide range of  FPGA gate densities, I/Os  and memory for variety of different programmable applications.

The HTG-930 architecture allows easy and versatile functional expansion through three Vita 57.4  compliant High-Pin-Count  FPGA Mezzanine Card (FMC+) connectors. The FMC+ ports provide access to total of 370 single-ended FPGA I/Os and 56  GTY (30.5Gbps) serial transceivers. Wide variety of FMC (i.e. QSFP+, SFP+, USB 3.0, ADC/DAC, etc.) and FMC+ (CFP8, QSFP28, FireFly, MSMP/GPPO, etc.) daughter cards are available to mate with the HTG-930 platform for different applications.

The HTG-930 is supported by one 72-bit ECC DDR4 SODIMM socket providing access to up to 16 GB of SDRAM memory.

The HTG-930 can be used in PCI Express or Standalone mode and powered through a 6-pin Molex PCIe connector.


with x4QSFP28 (front panel), x2QSFP28 & GPPO Modules (upper FMC+ ports)



with x4QSFP28 Module (front panel)

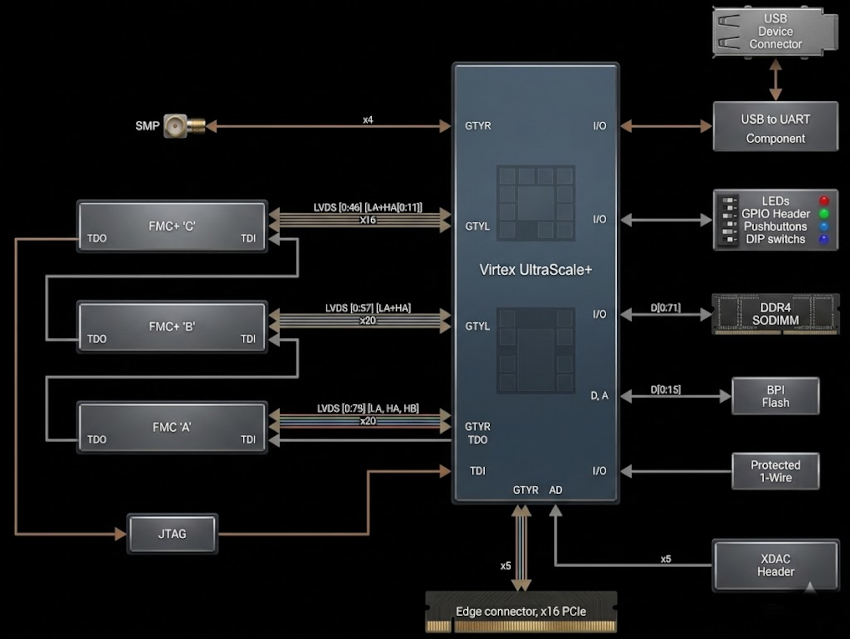

Features:

x1 Xilinx Virtex UltraScale+  VU9P, VU13P, or UltraScale VU190 FPGA in B2104 package (-2 or -3 speed grade)
x16 PCI Express Gen 3
x1 DDR4 SODIMM socket  (up to 16GB- shipped with 4GB)
x3 FMC+ (Vita 57.4)  ports providing access to 370 single-ended FPGA I/Os, and  56 GTY (30.5G) serial transceivers (Vita57.1 compliant FMC daughter cards are also pluggable into the Vita57.4 compliant FMC+ ports)
►x4 MSMP/GPPO ports providing access to up to 4 GTY serial transceivers
XDAC headers
x1 USB to UART Port
x1 BPI Flash for configuration (1Gb)
x1 Jtag port for configuration and debugging
x1 Header with 8 GPIOs
Ultra low-jitter Programmable oscillators & clock generators
x1 IP protection circuit
► Power Management Bus
Size: 9.5" x 4.25"
Supports both PCI Express and Standalone operations
   - 12V/8A Power adapter for standalone operation

GTH/GTY allocation
*all 3 models are footprint compatible and have the exact same FPGA pin#

  VU9P VU13P VU190
FMC+ Name Quad # I/O Type  SLR # Quad # I/O Type  SLR # Quad # I/O Type  SLR #
FMC_C DP[00:03] 120 GTY 0 124 GTY 1 125 GTY 1
FMC_C DP[04:07] 121 GTY 0 125 GTY 1 126 GTY 1
FMC_C DP[08:11] 122 GTY 0 126 GTY 1 127 GTY 1
FMC_C DP[12:15] 123 GTY 0 127 GTY 1 128 GTY 1
FMC_B DP[00:03] 124 GTY 1 128 GTY 2 129 GTY 2
FMC_B DP[04:07] 125 GTY 1 129 GTY 2 130 GTY 2
FMC_B DP[08:11] 126 GTY 1 130 GTY 2 131 GTY 2
FMC_B DP[12:15] 127 GTY 1 131 GTY 2 132 GTY 2
FMC_B DP[16:19] 128 GTY 1 133 GTY 3 133 GTY 2
PCI EXPRESS 224 GTY 1 224 GTY 1 224 GTH 1
PCI EXPRESS 225 GTY 1 225 GTY 1 225 GTH 1
PCI EXPRESS 226 GTY 1 226 GTY 1 226 GTH 1
PCI EXPRESS 227 GTY 1 227 GTY 1 227 GTH 1
SMP (GPPO) 228 GTY 1 228 GTY 2 228 GTH 1
FMC_A DP[16:19] 229 GTY 2 229 GTY 2 229 GTH 2
FMC_A DP[00:03] 230 GTY 2 230 GTY 2 230 GTH 2
FMC_A DP[04:07] 231 GTY 2 231 GTY 2 231 GTH 2
FMC_A DP[08:11] 232 GTY 2 232 GTY 3 232 GTH 2
FMC_A DP[12:15] 233 GTY 2 233 GTY 3 233 GTH 2

FMC_A: Front panel
FMC_B: Upper left
FMC_C: Upper right

Kit Content:

Hardware:
-HTG-930 platform

Reference Designs/Demos:
-PCI Express and DDR4 memory controller

Documents:

-User Manual
-Schematics (in searchable .pdf format)

Ordering information

Part Numbers:


HTG-930-9 (populated with one Virtex UltraScale+ VU9P-2 FPGA )
HTG-930-9-3 (populated with one Virtex UltraScale+ VU9P-3FPGA)
HTG-930-13 (populated with one Virtex UltraScale+ VU13P-2 FPGA)
HTG-930-13-3 (
populated with one Virtex UltraScale+ VU13P-3 FPGA)


Price: Please contact us

Supported FPGA devices:


Device Name VU190 VU9P VU13P
System Logic Cells (K) 2,350 2,586 3,780
CLB Flip-Flops (K) 2,148 2,364 3,456
CLB LUTs (K) 1.074 1,182 1,728
Max. Distributed RAM (Mb) 14.49 36.1 48.3
Total Block RAM (Mb) 132.9 75.9 94.5
UltraRAM (Mb)   270 360
Clock Management Tiles (CMTs) 30 30 16
DSP Slices 1,880 6,840 12,288
PCIe® Gen3 x16 / Gen4 x8 6 (G3) 6 4
150G Interlaken 9 9 8
100G Ethernet w/ RS-FEC 9 (100G) 9 12
