VPX-ZRF: Xilinx
Zynq UltraScale+ RFSoC 3U VPX Platform





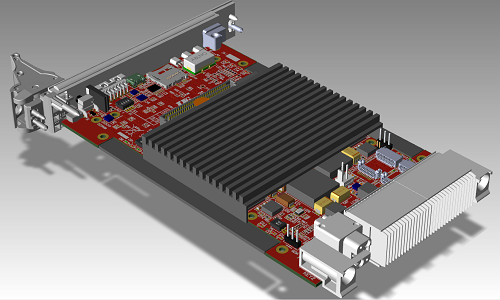

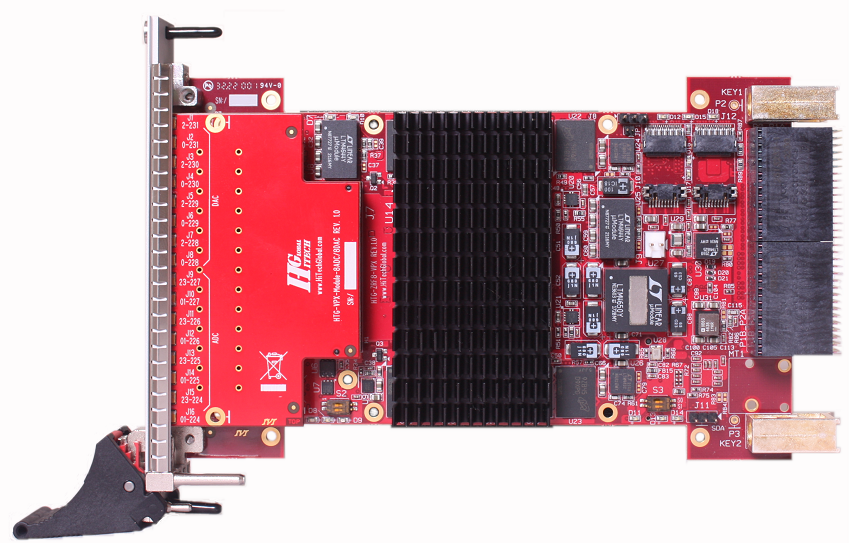

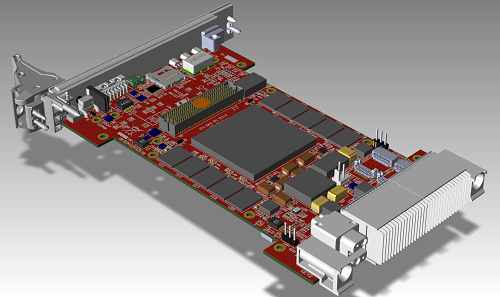

VPX-ZRF is a 3U VPX platform powered by Xilinx ZYNQ UltraScale+ RFSoC ZU28DR or ZU48DDR device. The on-board FPGA on each model supports either eight 12-bit ADC 4.096 GSPS (ZU28DR) or 14-bit ADC 5 GSPS (ZU48DR) as well as eight 14-bit DAC 6.4 GSPS (ZU28DR) or  10 GSPS (ZU48DR) ports. The ADC and DAC channels are routed to an expandable connector which hosts different RF daughter cards with different combinations of ADC and DAC channels.

The VPX-ZRF platform  is supported by 8GB DDR4 components for each Processor and Programmable Logic side.



Supported Devices (red boxes)

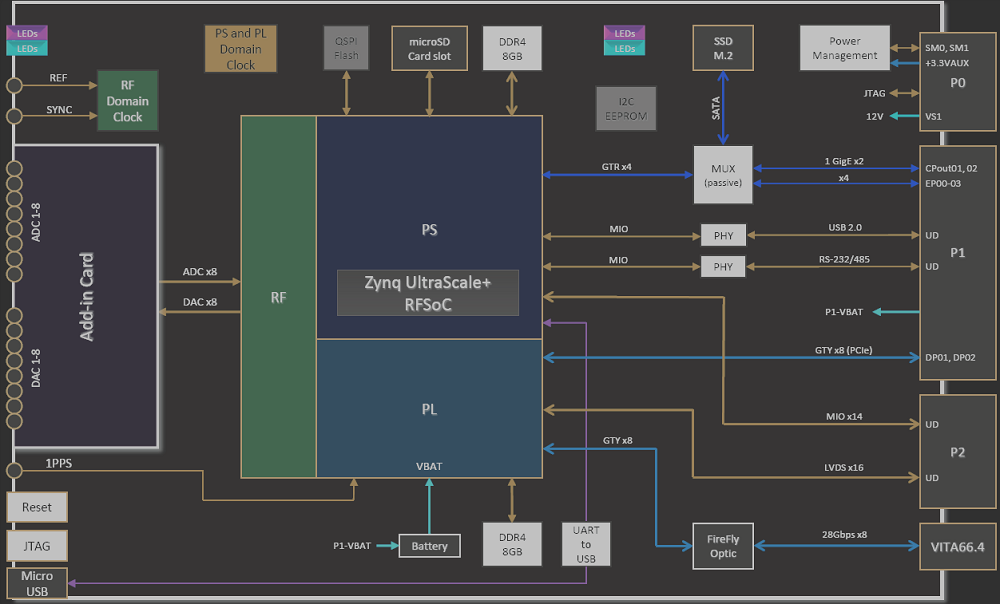

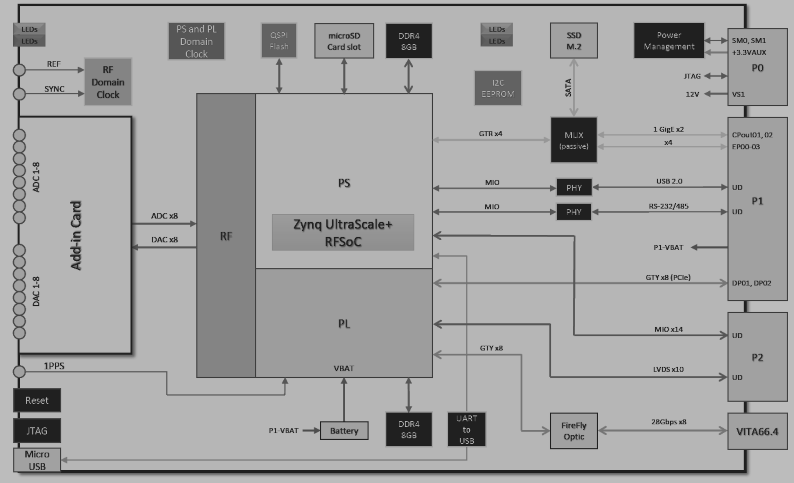

Main Features:

x1 Xilinx Zynq UltraScale+ RFSoC ZU28DR or ZU48DR
►3U VPX ports supporting Gigabit Ethernet, USB2.0, RS 232/485, x8 PCIe , x2 100G FireFly and Processor/FPGA I/Os
x1 RF expansion port hosting daughter cards with different combinations of ADC/DAC channels
Independent DDR4 memory for the FPGA  and the ARM Processors ( 8GB component for each interface)
Configuration Flash
x1Micro SD slot
Programmable Clocks (with default frequencies but programmable through I2C bus)
External Synchronous Clock port

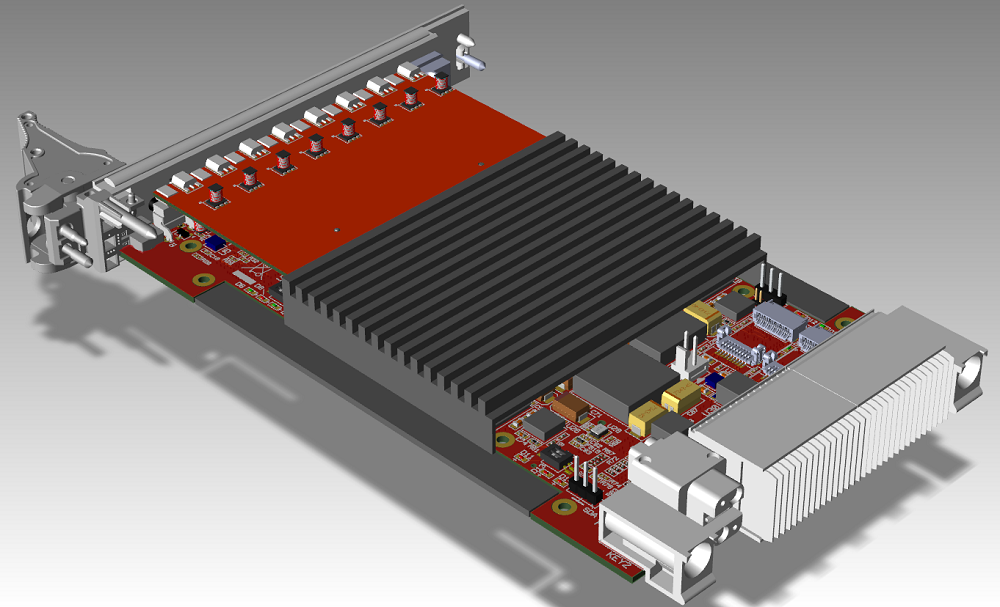

Available Daughter Cards:

►x8 ADC / x8 DAC with Rf Transformers


Kit Content:

Hardware:
-
HTG-VPX-ZRF Xilinx Zynq UltraScale+ RFSoC platform

Reference Designs/Demos:

- DDR4 Memory Controller

Documents:

- User Manual
- Schematics (in searchable .pdf format)

Ordering & Availability Information

HTG-VPX-ZRF-28
HTG-VPX-ZRF-48

Price: Please contact us
