VPX-ZRF-SYNC:   AMD
Zynq® UltraScale+™ RFSoC /Multiple Boards Synchronization

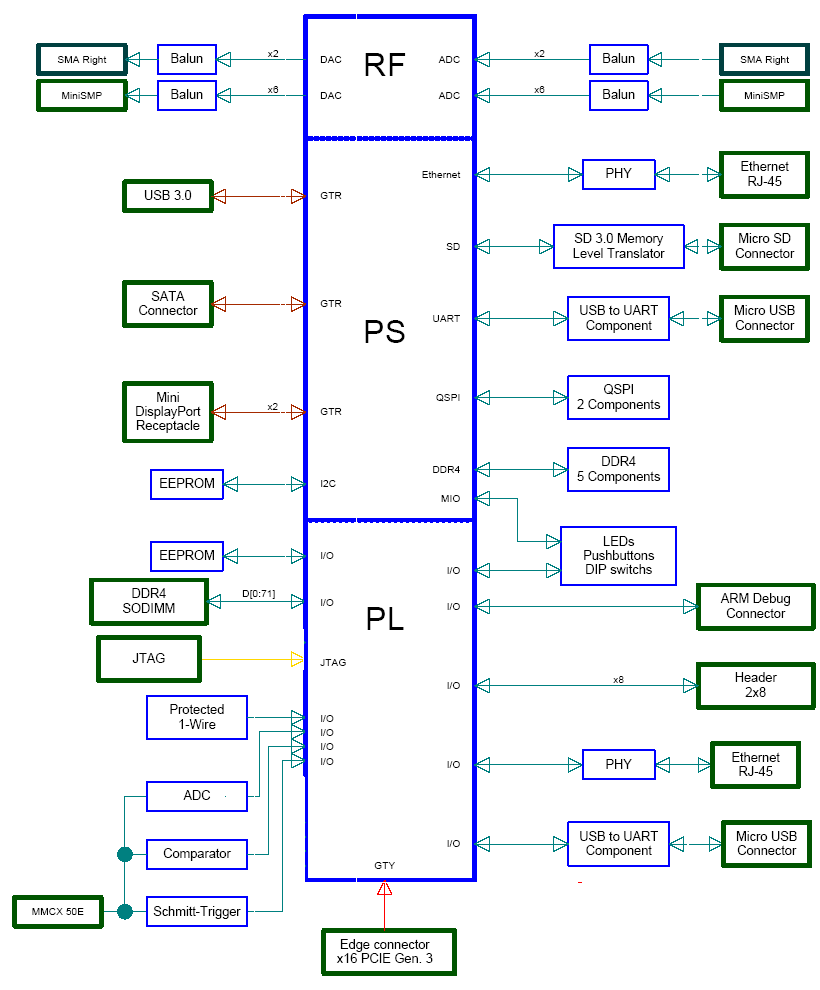

ZRF-SYNC is a x16 PCI Express platform populated by one AMD ZYNQ UltraScale+ RFSoC ZU28DR or ZU48DDR device. The on-board FPGA on each model supports either eight 12-bit ADC 4.096 GSPS (ZU28DR) or 14-bit ADC 5 GSPS (ZU48DR) as well as eight 14-bit DAC 6.4 GSPS (ZU28DR) or  10 GSPS (ZU48DR) ports. Unique Architecture of the board allows synchronized implementation of multiple boards in systems and chassis.

Supported Devices (red boxes)

Main Features:

x1 AMD ZYNQ UltraScale+ RFSoC ZU28DR or ZU48DR
►x16 PCI Express form factor
x8 ADC ports (x6 through Mini SMP and x2 through SMA connectors)
x8 DAC ports (x6 through Mini SMP and x2 through SMA connectors)
Independent DDR4 memory banks -up to 16 GB SODIMM for the PL  and 4GB for the ARM Processor
x2 Ethernet (10/100/1000) ports for the PL and PS sides (one each)
Configuration Flash (1Gb)
x1Micro SD slot
►x2 USB/UART ports (PL and PS sides)
►x1 USB 3.0 Port
►x1 SATA Port
►x1 Display Port
►On-board Power Bus Manager

x1 ARM Debug Port
Programmable Clocks (with default frequencies but programmable through I2C bus)
External Synchronous Clock port

Kit Content:

Hardware:
-
HTG-ZRF-SYNC Xilinx Zynq UltraScale+ RFSoC platform

Reference Designs/Demos:

- DDR4 Memory Controller
-
PCI Express Controller

Documents:

- User Manual
- Schematics (in searchable .pdf format)

Ordering & Availability Information

HTG-SYNC-28
HTG-SYNC-48


Price: Please contact us
