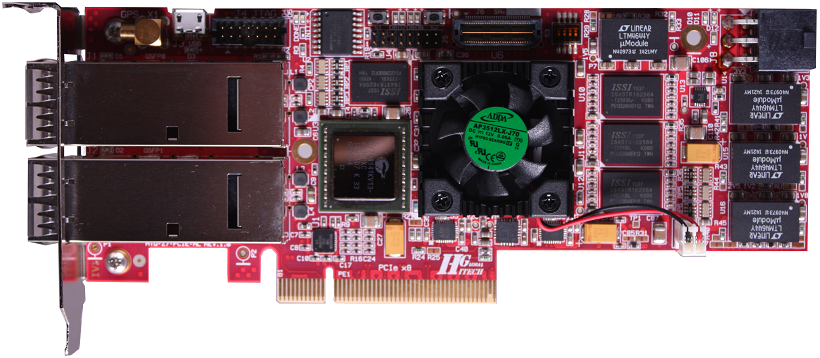

HTG-Z100 : Xilinx Zynq Networking Platform


Powered by Xilinx Zynq XC7Z100, the HTG-Z100 is an ideal platform for applications requiring embedded processing power, high-speed networking interfaces, and high-performance programmability.

Supported by two 40Gbps QSFP+ ports (expandable to eight 10Gbps SFP+ ports via QSFP+ to SFP+ cable), x8 PCI Express end point port, QDR IV/DDR3 memory components, GPS, and board-to-board connectors, the HTG-Z100 is the most feature-rich and flexible platform for industrial, data processing, medical, and networking (copper and optic) applications.

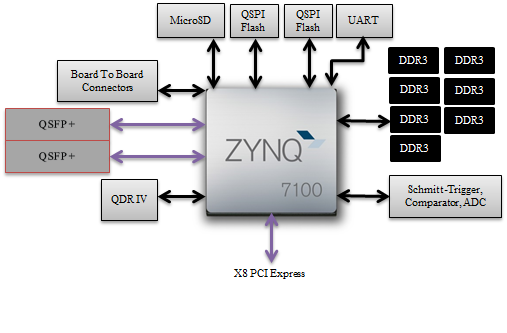

Features:

Xilinx Zynq XC7Z100-FFG1156
x8 PCI Express Gen 2
x1 Cypress QDR-IV SRAM (not populated)
DDR3 components - x2 32-bit (8Gb) for the ARM processor and x5 72-bit (20Gb) for the FPGA
x2 QSFP+ ports (convertible to x8 SFP+ ports via conversion cables)
GPS (Schmitt-Trigger, Comparator, and ADC)
x1MicroSD connector
x2 QSPI configuration Flash devices
►x1 USB/UART
Stackable using two Board-to-board connectors (two x16 LVDS)
IP protection circuit
Size: 6.6" x 2.54" (Half-Size PCIe)
Operation Mode: PCIE  (PC or Server )or Standalone (wall power supply)

Ordering information

Part Number: HTG-Z7-PCIE-HH
Price:
$5,995 (USD)

Kit Content:
- HTG-Z100 Board
-  User Manual, Schematics (in searchable pdf format) , Software Drivers (eval.),  PCI Express and DDR3 Controller designs

Accessories:

Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4x SFP+ Active Optical Cable break-out solution.  This cable is intended for 40G to 4x 10G applications.




 [Buy Online]

300m QSFP+ Optical Transceiver Compliant to the 40GbE IEEE 802.3ba-2010 specifications (40GBASE-SR4 and XLPPI) and the IEEE 802.3ae 10GBASE-SR optical specification )

AFBR-79E3PZ   [Buy Online]

QSFP+ to QSFP+ Cable (3-meter)
Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) solution for 40 Gigabit Ethernet Applications

QSFP+ To QSFP+ Cable  [Buy Online]
